GA3007CE

SPEC

SPECS
- body shape

  Cutaway Classical body
- top

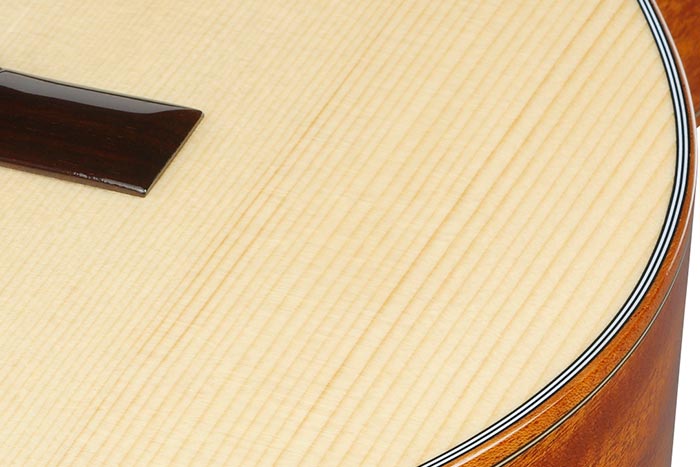

  Solid German Spruce top
- back & sides

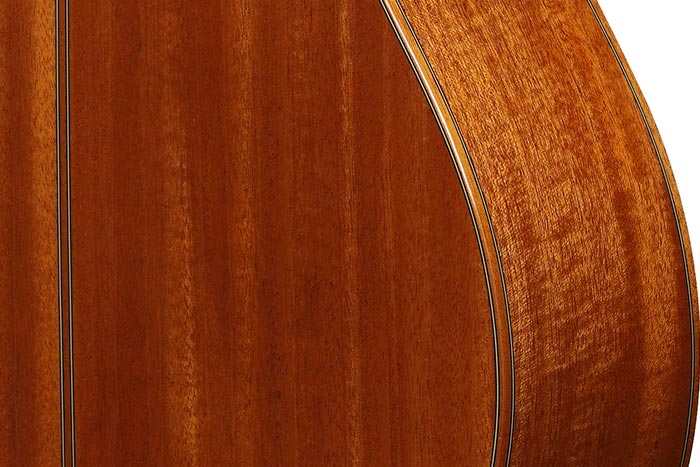

  African Mahogany back & African Mahogany sides
- neck

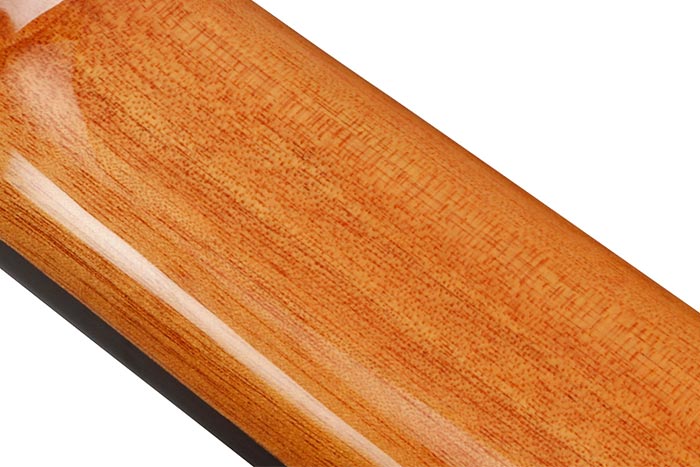

  GAOkoume neck
- fretboard

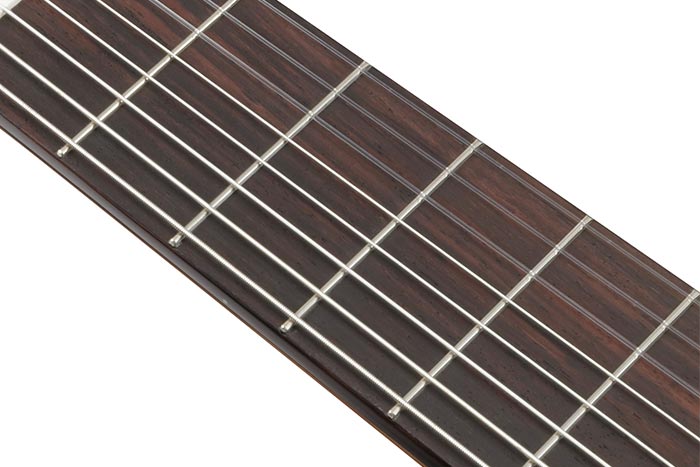

  Rosewood fretboard
- bridge

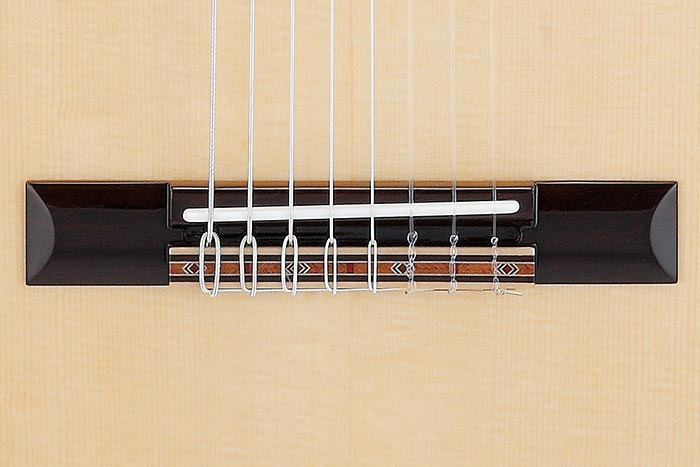

  Rosewood bridge
- body binding

  African Mahogany body binding
- top board purfling

  Wooden purfling
- soundhole rosette

  Classical Mosaic Design
- tuning machine

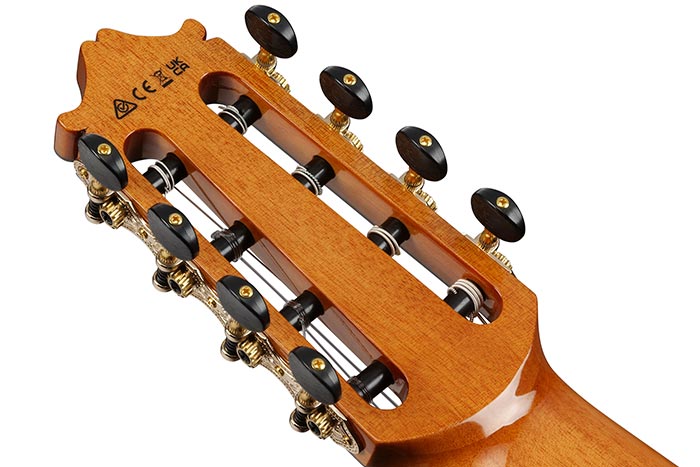

  Gold Classical tuners (14:1 gear ratio)
- nut material

  Bone
- number of frets

  20
- saddle material

  Bone
- strings

  Savarez Nylon strings 500CJ + 5207R
- string gauge

  .030/.034/.041/.029/.034/.044/.050
- string space

  11.6mm
- factory tuning

  1E,2B,3G,4D,5A,6E,7B
- pickup

  Fishman® S-Core
- preamp

  Ibanez AEQ-SP2 preamp w/Onboard tuner
- output jack

  Balanced XLR & 1/4" outputs
- battery

  9V x1
NECK DIMENSIONS
- - Scale :

    650mm/25.6"
  - a : Width

    59mm at NUT
  - b : Width

    68mm at 14F
  - c : Thickness

    22mm at 1F
  - d : Thickness

    24mm at 7F
  - Radius :

    Flat
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    19 1/16"
  - b : Width

    14 1/2"
  - c : Max Depth

    3 15/16"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
PREAMP

DESCRIPTION

The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
OTHER FEATURES
- Recommended Case

  GA50C

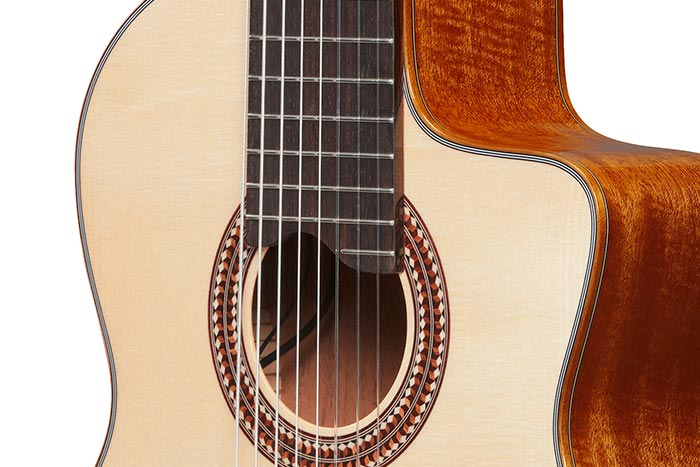

- Extended Fretboard

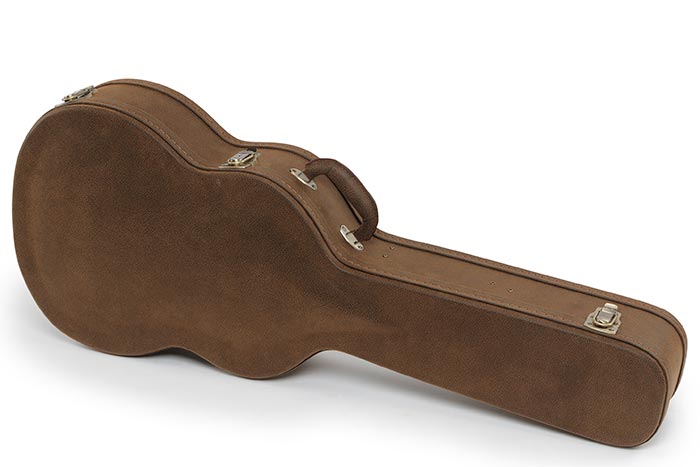

- Hardshell case included
