FRH10NL

PHOTOS
SPEC
FEATURES
SUPPORT

BSF : Brown Sunburst Flat

COLOR VARIATION：

FRH

SPEC

SPECS
- body shape

  FRH body
- bracing

  Fan Bracing for FRH
- top

  Solid Sitka Spruce top
- back & sides

  Sapele back & Sapele sides
- neck

  C shapeNyatohSet-in neck
- fretboard

  Rosewood fretboard
- bridge

  Rosewood bridge
- inlay

  White dot inlay
- tuning machine

  Gold Classical tuners
- nut material

  Bone
- number of frets

  22
- saddle material

  Bone
- strings

  D'Addario® XTC45
- string gauge

  .028/.032/.040/.028W/.035W/.044W
- string space

  11.6mm
- factory tuning

  1E,2B,3G,4D,5A,6E
- pickup

  Ibanez Undersaddle
- preamp

  Ibanez AEQ210T preamp w/Onboard tuner
- output jack

  1/4" output
- battery

  9V x1
NECK DIMENSIONS
- - Scale :

    648mm/25.5"
  - a : Width

    46mm at NUT
  - b : Width

    58mm at 14F
  - c : Thickness

    21mm at 1F
  - d : Thickness

    22mm at 7F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    17 5/16"
  - b : Width

    14 3/16"
  - c : Max Depth

    1 15/16"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body

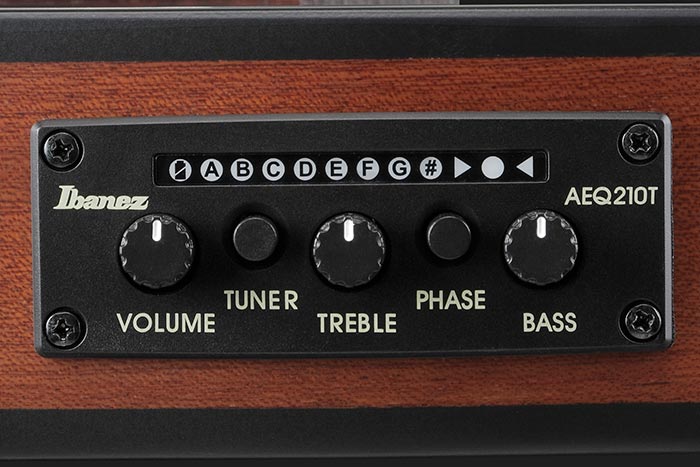

PREAMP

DESCRIPTION

The neck side of the preamp is the top of the control panel. The controls from left to right are the volume knob, tuner button, treble knob, phase button, and bass knob.
OTHER FEATURES
- Recommended Case

  FRH100C
- 400mmR fretboard radius
- Side Sound Port

Features

Nyatoh neck

The Nyatoh neck provides a rich mid-low end.

Rosewood fretboard

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Solid Sitka Spruce top

Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

Sapele back and sides

Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

Ibanez AEQ210T preamp w/Onboard tuner

The AEQ210T preamp provides the extra punch of an onboard EQ and the convenience of an easy-to-read digital tuner.

Rosewood bridge

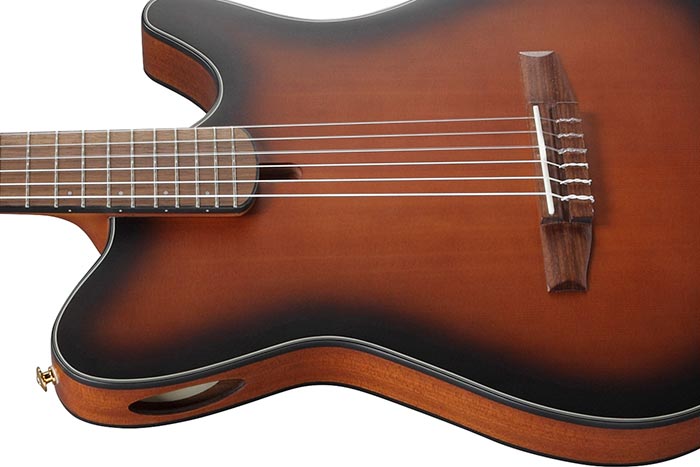

Modified FR hollow body w/ Fan bracing

Its thin, compact body and superior high fret access contribute to the superb playability of this guitar.
It has less feedback as there’s no sound hole on the body top. Fan bracing, which is commonly used for classical guitars, allows this guitar to have a warm and natural nylon string sound.

Side Sound Port

The sound port on the body side allows you to feel and hear the pure acoustic tone of this guitar more clearly and directly.

46mm width nut / 400R fretboad radius

The combination of a narrow 46mm width nut and 400R fretboard radius offers easy fingering.

Ibanez T-bar Undersaddle pickup

The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.
