FLATV2

SPEC

SPECS
- neck type

  FLATVS-TECH WOOD Roasted Maple neck
- top/back/body

  Alder body
- fretboard

  Rosewood fretboardIvory dot inlay
- fret

  Medium fretsPrestige fret edge treatment
- number of frets

  21
- bridge

  Gotoh® F1803 bridge
- string space

  10.5mm
- neck pickup

  Seymour Duncan® FLAT5™ (H) neck pickupPassive/Alnico
- bridge pickup

  Seymour Duncan® FLAT5™ (S) bridge pickupPassive/Alnico
- factory tuning

  1E,2B,3G,4D,5A,6E
- strings

  D'Addario® EXL110
- string gauge

  .010/.013/.017/.026/.036/.046
- nut

  Bone nut
- hardware color

  Chrome
NECK DIMENSIONS
- - Scale :

    648mm/25.5"
  - a : Width

    42mm at NUT
  - b : Width

    56mm at 21F
  - c : Thickness

    22mm at 1F
  - d : Thickness

    24.5mm at 12F
  - Radius :

    250mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
CONTROLS

DESCRIPTION

With the guitar held in the playing position, there is a three-way selector switch near to the knee cutout on the lower part of the guitar. The volume knob and tone knob are situated closer to end of the body.
OTHER FEATURES
- Available in Summer
- Hardshell case included
- Gotoh® machine heads
- Luminlay side dots
- Gotoh®/Ibanez co-designed "In-Tune" saddles

Features

FLATV S-TECH WOOD Roasted Maple neck

The FLATV neck features a ’Soft V’ neck grip shape that blends the charm of a classic neck shape with a modern feel. This enables the neck to feel both substantial and comfortable to the player. The S-TECH Roasted Maple neck is constructed with 1 piece, and is the perfect combination of form and function.

Rosewood fretboard w/ Ivory dot

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

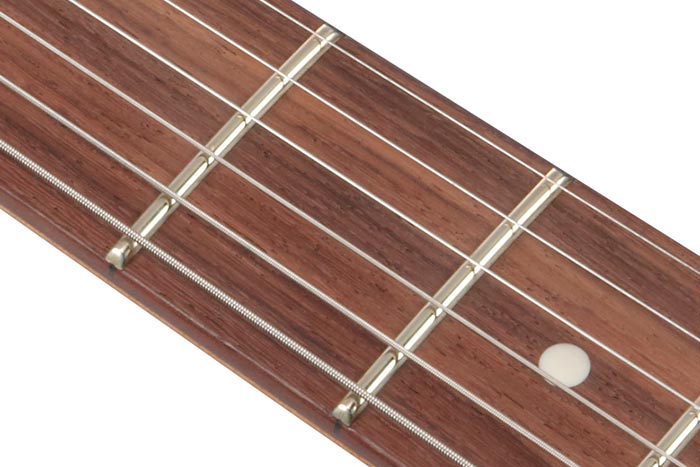

Medium frets with Prestige fret edge treatment

Medium sized frets enhance the accuracy of your notes. Prestige Fret Edge Treatment guarantees effortlessly fast playing.

Alder body

The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.

Seymour Duncan® FLAT5™ H-S pickups

Josh's signature pickup set from Seymour Duncan® features a vintage voiced neck humbucker pickup with a mounting ring that adds to the visual aesthetic of the ‘hot-rod' nature of this guitar, paired with a bridge pickup that is constructed with a mix of different types of Alnico magnets to best match the tone that Josh has relied on for years, and is able to capture guitar sounds that are both bright and fat. This pairing of the distinctly different pickups offers a unique tonal option in the middle position.

Gotoh® machine heads

Gotoh® machine heads provide super precision, smooth feel, and minimal back lush.

Gotoh® F1803 bridge

The Gotoh® F1803 bridge improves sustain and tuning stability.

Luminlay side dot inlays

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
