EHB1135MS
SPEC
-
SPECS
-
neck typeEHB59pc Panga Panga/Walnut neck w/Graphite reinforcement rods
-
top/back/bodyAsh topOkoume body
-
fretboardBound Panga Panga fretboardOff-set Abalone dot inlay
-
fretMedium Stainless Steel frets
-
number of frets24
-
bridgeMR5HS bridge
-
string space18mm
-
neck pickupBartolini® BH2 neck pickupPassive
-
bridge pickupBartolini® BH2 bridge pickupPassive
-
equaliserVari-mid 3-band EQ w/ EQ bypass switch (passive tone control on treble pot)
-
factory tuning1G,2D,3A,4E,5B
-
stringsD'Addario® EXL170-5SL
-
string gauge.045/.065/.080/.100/.130
-
hardware colorBlack
-
-
NECK DIMENSIONS
-
-
Scale :889mm/35" - 838mm/33"
-
a : Width45mm at NUT
-
b : Width74mm at 24F
-
c : Thickness19.5mm at 1F
-
d : Thickness21.5mm at 12F
-
Radius :500mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION
With the bass held in the playing position, there are two stacked knobs towards the end of the body, near the input jack. The top control of the stacked knobs closest to the lowest edge of the body is the treble boost/cut, and the bottom knob is the bass boost/cut. The top control of the stack next to the mini switch is the mid boost/cut, and the lower knob is the mid frequency sweep. There are two small knobs along the lower edge of the body. The knob closest to the neck is the volume knob, and the knob between the volume control and the stacked knobs is the pickup balancer. Positioned above these knobs is the EQ bypass. When the switch is in neck position, the EQ is off. When the switch is in bridge position, the EQ is on. When EQ is off, the treble boost/cut knob functions as a passive tone control.
-
FREQUENCY RESPONSE
DESCRIPTION
-
OTHER FEATURES
- Recommended Case
-
MRB350C
- Gig bag included
- Ibanez custom headpieces
- Luminescent side dot inlay
- Schaller S-Locks strap lock pins
Features

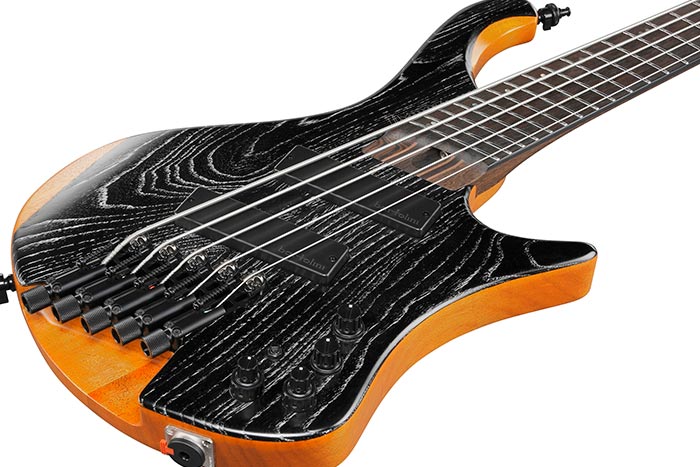

Ergonomic body design
The EHB’s headless construction and specially designed body enable the player to maintain a similar playing position whether seated or standing.

Slanted body back
The top half of the back of the body is slanted which allows the bass to rest slightly closer to the player’s body for better control and a more ergonomic feel.

Ibanez custom headpieces
Rugged yet light-weight Ibanez custom headpieces enable strings to be easily set and released by a hex wrench from the back side.

Comfortably rounded body edge, Chambered body
Its contoured, ergonomic design and chambered body make for a lightweight, well-balanced, and comfortable instrument that’s excellent for long sets or practice session.

Scooped cut on the body back
There is extra carving on the back of the body behind the lower horn for easier upper fret access.

9pc Panga Panga/Walnut neck w/Graphite reinforcement rods
The 9-piece Panga Panga/Walnut neck provides superior note attack, tight lows and increased sustain with the Panga Panga fretboard.

Ash top / Okoume body
The Ash top imbues this bass with an exotic appearance and the Okoume body delivers a rich mid-low end.

Bartolini® BH2 pickups
The Bartolini® BH2 pickups provide a tight bottom-end, punchy mid-range, and smooth response. The dual-coil style configuration maximizes articulation and a long blade pole piece widens the magnetic field, providing balanced string-to-string pickup response.

Vari-Mid 3-Band EQ w/EQ bypass switch
The Vari-mid 3-band EQ features a variable mid-frequency control which allows you to dial in an incredibly wide range of sounds. There is also an EQ bypass switch for passive operation with the treble control acting as a passive tone control when the EQ is bypassed.

MR5HS mono rail bridge w/string spacing adjustable saddles
The MR5HS bridge is designed especially for the EHB basses and features wide intonation range. Each bridge piece is independently and securely attached to the body for maximum vibration transfer, and the saddles are adjustable for string spacing +/-1.5mm, answering every bassist’s individual string spacing demands, no matter what playing style. Teflon washers are used on each tuner for a smooth tuning action.

Schaller S-Locks strap pins and Neutrik locking jack
Schaller S-Lock strap lock pins and a Neutrik locking jack hold the strap and cable securely.

Detachable Finger ramp
A detachable Finger ramp is included for comfortable finger picking.

Panga Panga fretboard
Panga Panga features a beautiful wood grain which produces a tight low and mid range, along with a sharp attack on high end.

Luminescent side dot inlays
Luminescent side dot inlay provides clear visibility in dark environments.
