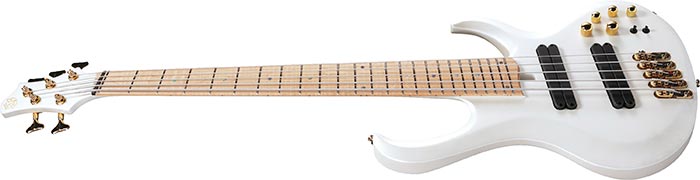

BTB605MLM-PWM
  • PWM : Pearl White Matte
  • COLOR VARIATION:
BTB

SPEC

  • SPECS

    • neck type
      BTB5 for Multi Scale5pc Maple/Walnut w/Graphite reinforcement rodsNeck-through
    • top/back/body
      Okoume wing body
    • fretboard
      Flamed Maple fretboardAbalone dot inlay
    • fret
      Medium Stainless Steel frets
    • number of frets
      24 (+ zero fret)
    • bridge
      MR5S bridge
    • string space
      19mm
    • neck pickup
      T1 neck pickupPassive
    • bridge pickup
      T1 bridge pickupPassive
    • equaliser
      Ibanez Custom Electronics 3-band EQ w/EQ bypass switch (passive tone control on treble pot), 3-way Mid frequency switch
    • factory tuning
      1G,2D,3A,4E,5B
    • strings
      D'Addario® NYXL45130SL
    • string gauge
      .045/.065/.080/.100/.130
    • hardware color
      Gold
  • NECK DIMENSIONS

      • Scale :
        889mm/35" - 864mm/34"
      • a : Width
        47mm at NUT
      • b : Width
        75mm at 24F
      • c : Thickness
        20mm at 1F
      • d : Thickness
        22mm at 12F
      • Radius :
        400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • CONTROLS

    BTB605MLM's control diagram

    DESCRIPTION

    With the bass held in the playing position, there are three small knobs located towards the lower edge of the body. Directionally, from the lower bout towards the neck these knobs control treble boost/cut, mid boost/cut, and bass boost/cut knob. Above these are two larger knobs closer to the bridge. Of these, the knob closest to the end of the body is the pickup balance, and the knob located towards the neck is the volume knob. There are two switches on this bass. The switch closest to the end of the body is a 3-way mid frequency switch. When the switch is in neck position, mid boost peak is at 250Hz. When the switch is in center position, mid boost peak is at 450Hz. When the switch is in bridge position, mid boost peak is at 700Hz. The other switch closer to the middle of the bass is the EQ bypass switch. When the switch is in neck position, the EQ is off. When the switch is in bridge position, EQ is on. When EQ is off, the treble knob works as a passive tone control knob.

  • FREQUENCY RESPONSE

    BTB605MLM's EQ curve diagram

    DESCRIPTION

    The bass boost/cut frequency curve has a peak at 20 Hz, the variable width becomes smaller toward the high range, and the variable width becomes zero at about 1000 Hz. The variable range of the peak frequency is approximately ±15 dB. The treble boost/cut frequency curve draws a mountain-shaped curve with a peak at around 10,000 Hz and zero variable range around 100 Hz. The variable range of the peak frequency is approximately ±15 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak can be switched to 700, 450 and 250 Hz. The variable range of the peak frequency is approximately ±15 dB.

  • OTHER FEATURES

Features

5pc Maple/Walnut neck with Graphite reinforcement rods

5pc Maple/Walnut neck with Graphite reinforcement rods

The 5pc Maple/Walnut neck provides tonal clarity and superior attack.The Graphite reinforcement rods provides massive sustain and excellent stability.

Neck-through constructionNeck-through construction

Neck-through construction

The neck-through construction contributes to massive sustain and smooth access to high fretboard positions.

Flamed Maple fretboard

Flamed Maple fretboard

The beautiful Flamed Maple fretboard imbues this model with an exotic appearance.

Medium Stainless Steel frets

Medium Stainless Steel frets

The Stainless Steel frets are durable and long-lasting.

Okoume wing body

Okoume wing body

The Okoume wing body provides a bright and solid sound.

T1 pickups

T1 pickups

The T1 pickup is a humbucker featuring two separate, individually mounted coils that provides tight bass response, punchy mid-range, and clear high-end. It offers flexible voicing suitable for various genres, and the height of each coil can be set individually for highly nuanced adjustments to the tone. On top of its great sound, the physical design features rounded edges for enhanced ergonomic comfort when using the pickup as a thumb rest. Moreover, the individually mounted coils allow them to be positioned slightly offset from one another. This makes it so the surface of the pickup where the player rests their thumb is directly parallel with the strings, which is not typical with most multi scale basses. This design greatly enhances the comfort and playability of the instrument.

Ibanez Custom Electronics 3-band EQ w/Mid frequency switch

Ibanez Custom Electronics 3-band EQ w/Mid frequency switch

Ibanez Custom Electronics 3-band EQ is our latest refinement on the concept of simple, straightforward, no-nonsense EQ control. The Boost and Cut for the Mid Control are each centered on slightly different frequencies, an innovation that delivers a preset range of the most favorable bass tones.

MR5S bridge

MR5S bridge

The MR5S bridge has adjustable saddles for variable string spacing by +/1.5mm, answering every bassist’s specific string spacing needs.

3-way Mid frequency switch

3-way Mid frequency switch

The 3-way Mid frequency switch allow players to change the mid-tone between 250, 450, and 700 Hz.

35-34 inch multi scale

35-34 inch multi scale

35-34 inch multi scale construction allows the higher strings to be played more easily, while still having adequate tension for lower strings.
