AZ47P1QM

SPEC

SPECS
- neck type

  AZ Oval CRoasted Maple neck
- top/back/body

  Quilted Maple topAmerican Basswood body
- fretboard

  Ebony fretboardMother of Pearl dot inlay
- fret

  Jumbo Stainless Steel frets
- number of frets

  24
- bridge

  Gotoh® T1502 bridge
- string space

  10.5mm
- neck pickup

  DiMarzio® Air Norton™ (H) neck pickupPassive/Alnico
- middle pickup

  DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
- bridge pickup

  DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
- factory tuning

  1E,2B,3G,4D,5A,6E
- strings

  D'Addario® EXL110
- string gauge

  .010/.013/.017/.026/.036/.046
- nut

  Graph Tech® nut
- hardware color

  Gold
NECK DIMENSIONS
- - Scale :

    648mm/25.5"
  - a : Width

    42mm at NUT
  - b : Width

    57mm at 24F
  - c : Thickness

    20.5mm at 1F
  - d : Thickness

    22.5mm at 12F
  - Radius :

    305mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.
CONTROLS

DESCRIPTION

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
OTHER FEATURES
- Recommended Case

  M300C
- Gig bag included
- Gotoh® MG-T locking machine heads
- Luminescent side dot inlay

Features

DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups

The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

Ebony fretboard

Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

Luminescent side dot inlays

The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Gotoh® MG-T locking machine heads

The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Oval C Roasted Maple neck

Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.

Gotoh® T1502 tremolo bridge

The T1502 tremolo bridge features steel saddles and a die-cast zinc tremolo block for a quick response and improved articulation. The 10.5mm string spacing allows for easy picking across strings and its snap-in construction makes it easy to load a tremolo arm.

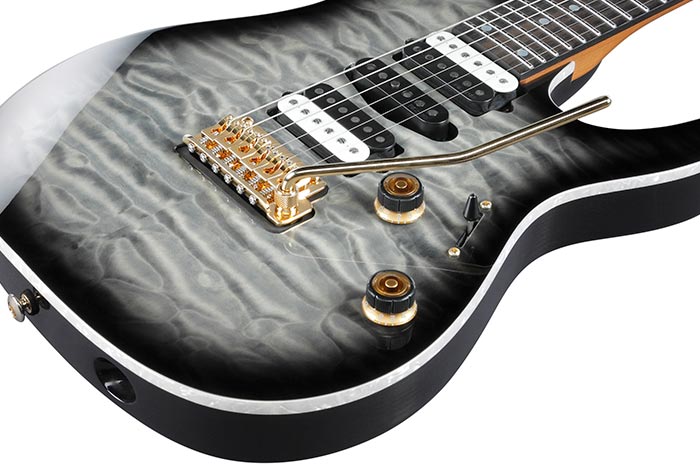

Ergonomic rear body contour

A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.

Super All Access Neck Joint

The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
