AZ41B1
- BKF : Black Flat
- COLOR VARIATION：
SPEC
-
SPECS
-
neck typeAZ Oval CRoasted Maple neck
-
top/back/bodyAmerican Basswood body
-
fretboardEbony fretboard
-
fretJumbo Stainless Steel frets
-
number of frets24
-
bridgeF106 bridge
-
string space10.5mm
-
neck pickupDiMarzio® Fusion Edge (H) neck pickupPassive/Ceramic
-
bridge pickupDiMarzio® Fusion Edge (H) bridge pickupPassive/Ceramic
-
factory tuning1E,2B,3G,4D,5A,6E
-
stringsD'Addario® EXL110
-
string gauge.010/.013/.017/.026/.036/.046
-
nutGraph Tech® nut
-
hardware colorBlack
-
-
NECK DIMENSIONS
-
-
Scale :648mm/25.5"
-
a : Width42mm at NUT
-
b : Width57mm at 24F
-
c : Thickness20.5mm at 1F
-
d : Thickness22.5mm at 12F
-
Radius :305mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the alter switch is in neck position, power tap mode is on. When the alter switch is in bridge position, power tap mode is off. When power tap mode is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, the neck side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected. When power tap mode is on and the pickup selector switch is in neck position, the neck pickup is selected and in power tap mode. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected and are both in power tap mode. When the switch is in between center and bridge position, the bridge side of the bridge pickup is selected. When the switch is in bridge position, bridge pickup is selected and is in power tap mode.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is the five-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch. Between the volume and tone knobs is the alter switch.
-
OTHER FEATURES
-
Recommended Case
-
Gotoh® MG-T locking machine heads
-
dyna-MIX10 switching system w/Alter Switch
-
Features
F106 bridge
The F106 bridge enriches sustain. String height adjustment can be done easily and independently.
Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.
DiMarzio® Fusion Edge Pickups
Through close collaboration between Ibanez and DiMarzio® Fusion Edge pickups have been engineered to produce a powerful, distinctive tone with a crisp, cutting high end, and a tight, compressed bottom end, minus any muddy mid-range.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

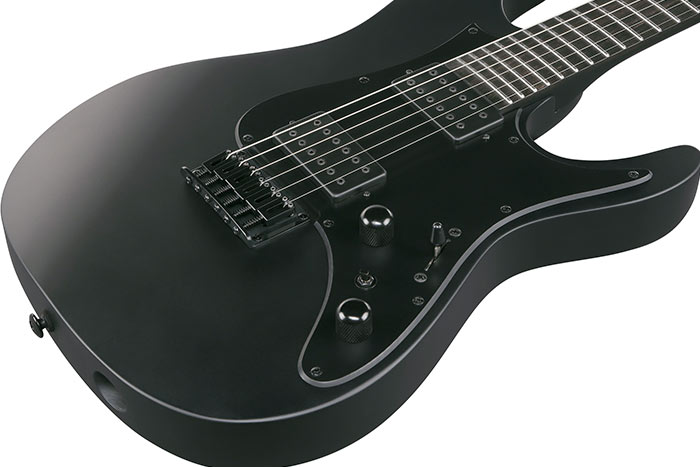

American Basswood body
The American Basswood body delivers a natural and flat tone.
Oval C Roasted Maple neck
Heat-treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.
dyna-MIX10 switching system w/Alter switch
The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.
Ergonomic rear body contour
A shallow body back contour and a big forearm contour make the guitar body fit the player naturally, thus increasing playing comfort. The AZ body has a deep waist and different radii on each body edge curve, making it easier to play in both standing or sitting positions.
Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
