SPEC
-
SPECS
-

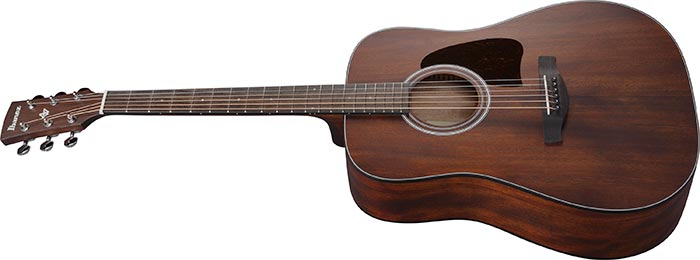

body shapeDreadnought body
-
topSolid Okoume top
-

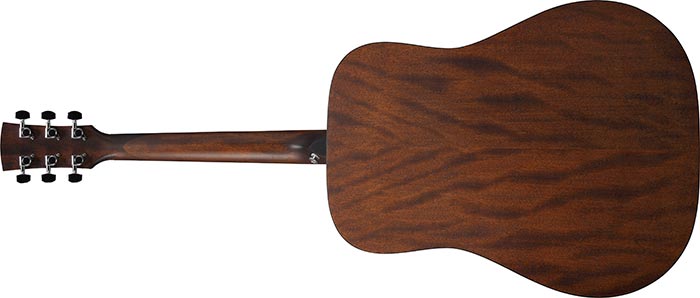

back & sidesOkoume back & Okoume sides
-
neckAWNyatoh neck
-
fretboardLaurel fretboard
-
bridgeLaurel bridge
-
inlayWhite dot inlay
-
soundhole rosetteBlack & White multi
-

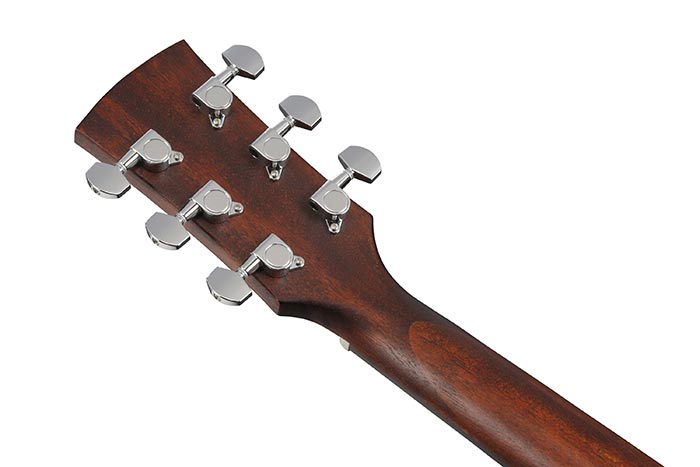

tuning machineChrome Die-cast tuners (18:1 gear ratio)
-
number of frets20
-
bridge pinsIbanez Advantage™
-
stringsD'Addario® XTAPB1253
-
string gauge.012/.016/.024/.032/.042/.053
-
string space11mm
-
factory tuning1E,2B,3G,4D,5A,6E
-
-
NECK DIMENSIONS
-
-
Scale :647.7mm/25.5"
-
a : Width43mm at NUT
-
b : Width54.33mm at 14F
-
c : Thickness21mm at 1F
-
d : Thickness22mm at 7F
-
Radius :400mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
-
a : Length20 1/8"
-
b : Width15 3/4"
-
c : Max Depth5"
-
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
OTHER FEATURES
-
Recommended Case
-
Features

Nyatoh neck
The Nyatoh neck provides a rich mid-low end.

Laurel fretboard
The Laurel fretboard provides a rich and warm tone.

Laurel bridge
The Laurel bridge transfers string vibration directly to the body, delivering a natural and warm tone.

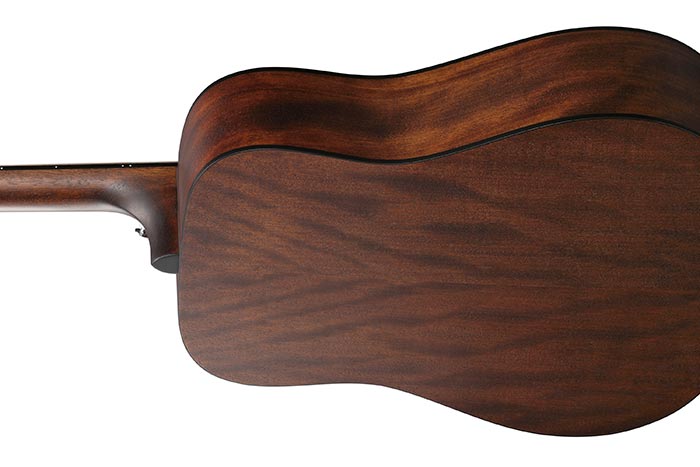

Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
