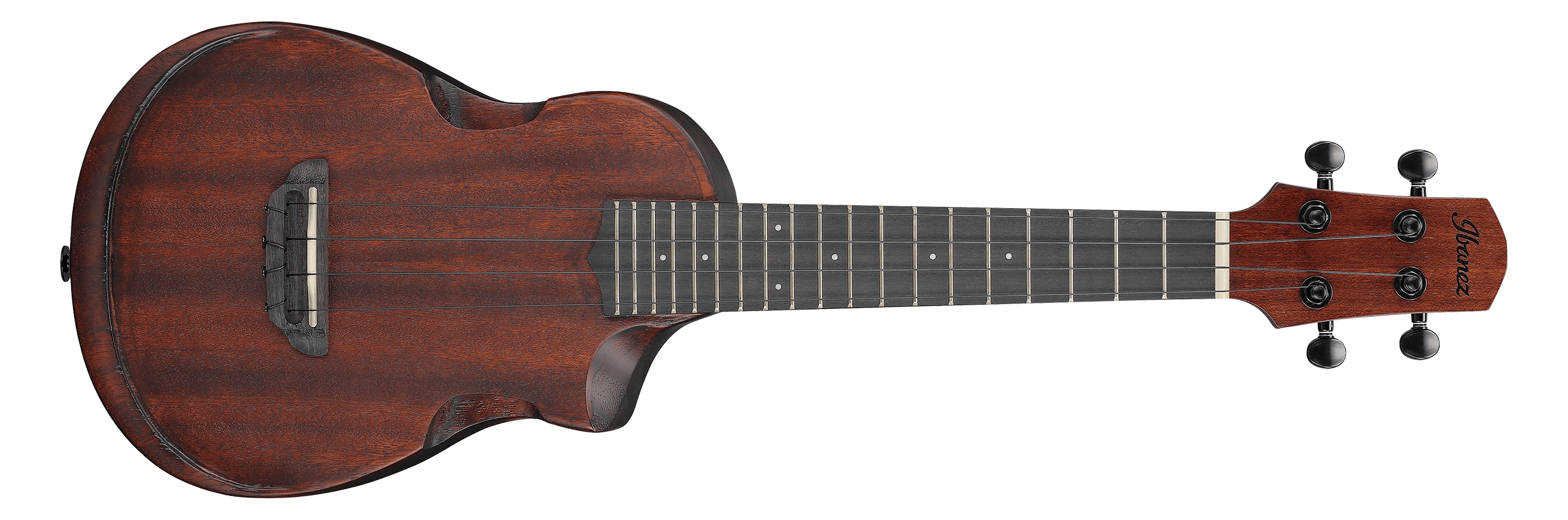

AUC14

SPEC

SPECS
- body shape

  AU concert body
- top

  Sapele top
- back & sides

  Solid Paulownia back & Solid Paulownia sides
- neck

  AUCOkoume neck
- fretboard

  Purpleheart fretboard
- bridge

  Purpleheart double hole bridge
- inlay

  White dot inlay

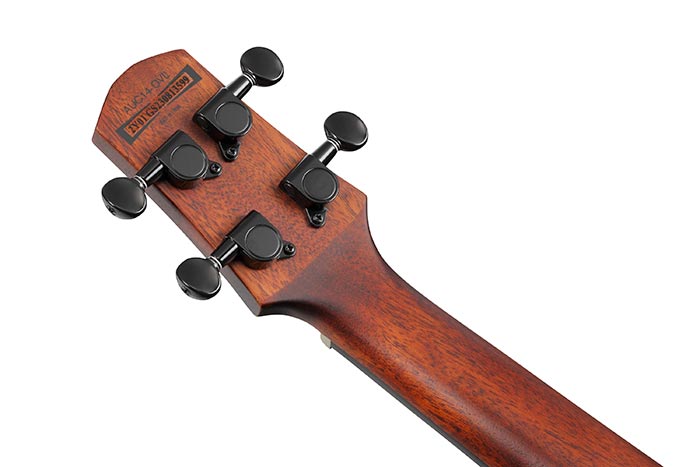

- tuning machine

  Black Die-cast tuners
- number of frets

  19
- strings

  Aquila® Nylblack
- string gauge

  .026/ .032/ .038/ .028
- string space

  15mm
- factory tuning

  1A,2E,3C,4G
NECK DIMENSIONS
- - Scale :

    382mm/15"
  - a : Width

    37mm at NUT
  - b : Width

    47mm at 14F
  - c : Thickness

    17.5mm at 1F
  - d : Thickness

    20.7mm at 7F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    11"
  - b : Width

    8 1/16"
  - c : Max Depth

    2 1/2"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
OTHER FEATURES
- Gig bag included
- Stereo Soundport System
- Elevated Comfort Armrest
- Edgeless Comfort Heel
- Beveled Cutaway

Features

Okoume neck

The Okoume neck provides greater playing comfort.

Purpleheart fretboard

The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this instrument.

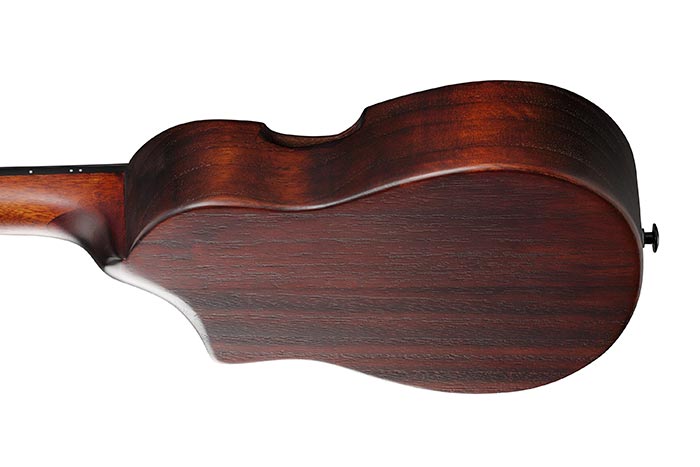

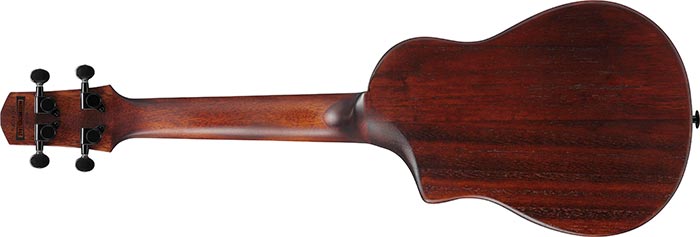

Solid Paulownia back and sides

The light weight Paulownia back and sides offer well-balanced tone with superior note definition and added brightness.

Purpleheart double hole bridge

The double hole bridge makes string changes super easy as there is no need to bend the strings or tie a knot at the end. This also helps maintain the correct string tension, which enhances tuning stability.

Stereo Sound Port System

The dual sound holes on the waist provide a unique surround sound effect, helping players more effectively monitor their sound.

Elevated Comfort Armrest

This Elevated Comfort Armrest can prevent your arm from touching the body top to provide richer sound and natural sustain while providing extreme playing comfort.

Beveled Cutaway

The Beveled Cutaway offers exceptional high fret access.

Edgeless Comfort Heel

The Edgeless Comfort Heel is smoothly rounded toward the cutaway, allowing for easy playing in any position.

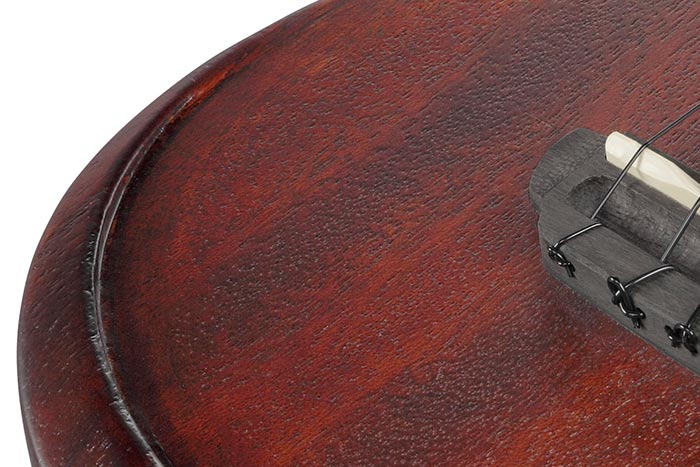

Sapele top

The Sapele top delivers a warm, full tone.
