AS93BC
SPEC
-
SPECS
-
neck typeAS Expressionist3pc Nyatoh/MapleSet-in neck
-
top/back/sideLinden top Bocote backBocote sides
-
fretboardBound Macassar Ebony fretboardAcrylic block inlay
-
fretMedium frets
-
number of frets22
-
bridgeGibraltar Performer bridge
-
string space10.5mm
-
tailpieceQuik Change III tailpiece
-
neck pickupSuper 58 (H) neck pickupPassive/Alnico
-
bridge pickupSuper 58 (H) bridge pickupPassive/Alnico
-
factory tuning1E,2B,3G,4D,5A,6E
-
stringsD'Addario® EXL140
-
string gauge.010/.013/.017/.030/.042/.052
-
hardware colorGold
-
-
NECK DIMENSIONS
-
-
Scale :628mm
-
a : Width43mm at NUT
-
b : Width57mm at 22F
-
c : Thickness21mm at 1F
-
d : Thickness24mm at 9F
-
Radius :305mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
-
a : Length19 1/4"
-
b : Width15 3/4"
-
c : Max Depth2 5/8"
-
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION

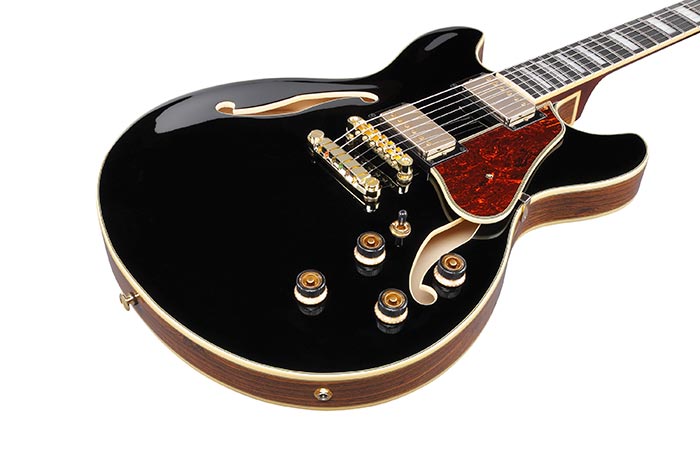

With the guitar held in the playing position, there are two knobs located along the lower edge of the body. The knob closest to the neck is the bridge volume knob, and the knob closest to the end of the body is the bridge tone. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the neck is the neck volume knob. There is also a three-way pickup selector switch neat the neck volume knob.
-
OTHER FEATURES
-
Recommended Case
-
Features
Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The low-positioned saddles promise comfortable playability.
3pc Nyatoh/Maple neck
The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

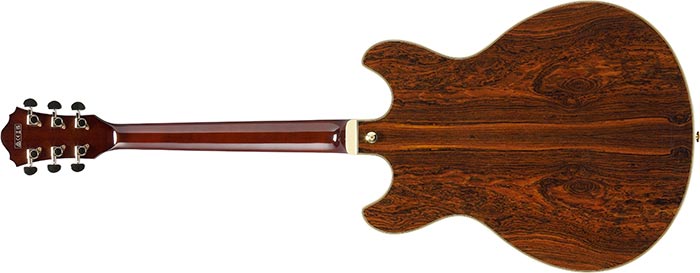

Linden top / Bocote back and sides
The Linden top delivers a natural and flat, yet accurate tone. The Bocote back and sides imbue this guitar with an exotic appearance and add a powerful and warm sound.
Quik Change III Tailpiece
The Quik Change III tailpiece enables faster and easier string changing.
Super 58 Pickups
Super 58 pickups feature moderate output and vintage tone.
