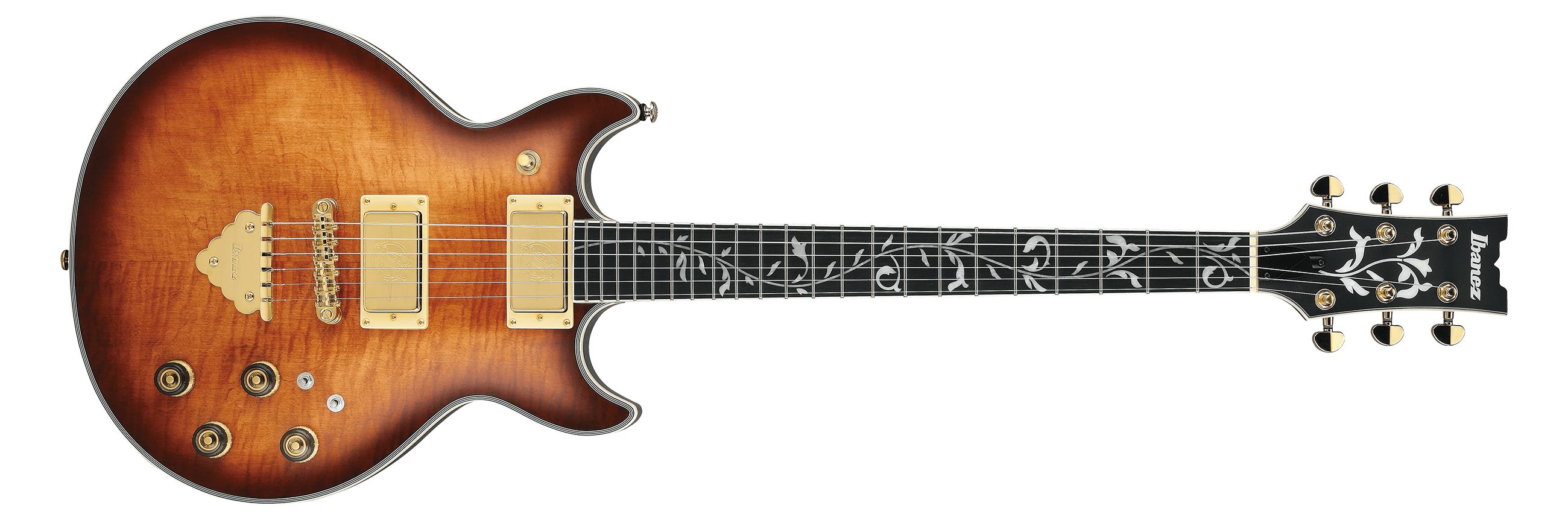

AR625FMSP

PHOTOS
SPEC
FEATURES
SUPPORT

CML : Caramel Burst Low Gloss

COLOR VARIATION：

SPEC

SPECS
- neck type

  AR3pc Maple neckSet-in neck (smooth heel)
- top/back/body

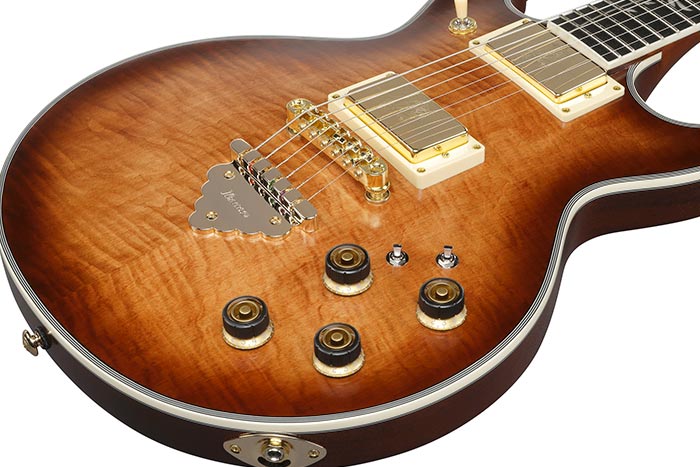

  Flamed Maple topOkoume body
- fretboard

  Bound Ebony fretboardAcrylic inlay
- fret

  Medium frets
- number of frets

  22
- bridge

  Gibraltar Performer bridge
- string space

  10.5mm
- tailpiece

  Quik Change Classic tailpiece
- neck pickup

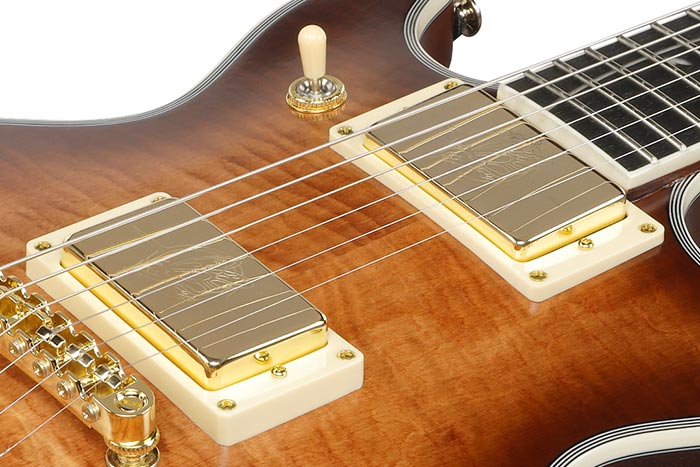

  Super 80 (H) neck pickupPassive/Ceramic
- bridge pickup

  Super 80 (H) bridge pickupPassive/Ceramic
- factory tuning

  1E,2B,3G,4D,5A,6E
- strings

  D'Addario® EXL110
- string gauge

  .010/.013/.017/.026/.036/.046
- hardware color

  Gold
NECK DIMENSIONS
- - Scale :

    628mm/24.75"
  - a : Width

    43mm at NUT
  - b : Width

    57mm at 22F
  - c : Thickness

    20mm at 1F
  - d : Thickness

    22mm at 9F
  - Radius :

    305mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. If you have the neck Tri-sound switch in neck position, the neck humbucker is in parallel. If you have the switch in center position, the neck side of the neck humbucker is on. If you have the switch is in bridge position, the neck pickup is in series. If you have the bridge Tri-sound switch in neck position, the bridge humbucker is in parallel. If the switch is in center position, the bridge side of the bridge humbucker is on. If the switch is in bridge position, the bridge pickup is in series.
CONTROLS

DESCRIPTION

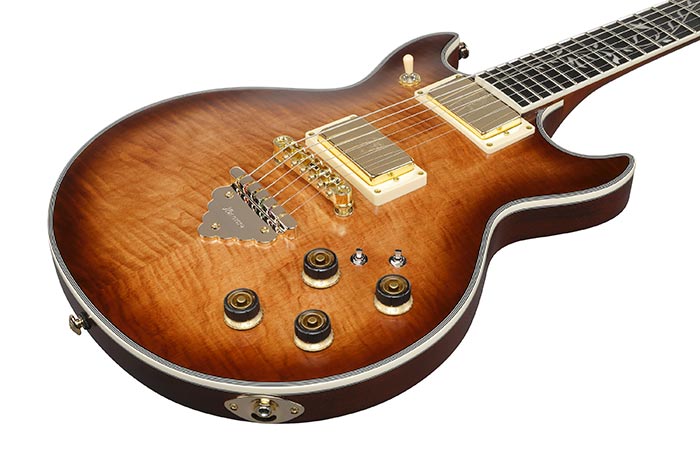

With the guitar held in the playing position, there are two knobs along the lower edge of the body. The knob close to the end of the body is the bridge tone control, and the knob closer to the direction of the neck is bridge volume. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone control, and the knob closest to the neck is the neck volume knob. There are also two switches next to the volume knobs. The switch closest to the neck volume knob is the tri-sound switch for the neck pickup, and the switch farthest away from the neck volume knob is the tri-sound switch for the bridge pickup. The pickup selector switch is located above the neck pickup.
OTHER FEATURES
- Recommended Bag

  IGB540-BK
- 2 Tri-sound switches
- * Each and every product will have passed stringent Ibanez quality control standards. However, due to the nature of the ultra-thin finish used on this model, some unevenness on the wooden surfaces and binding may be present and is considered normal.
