ALT50FA

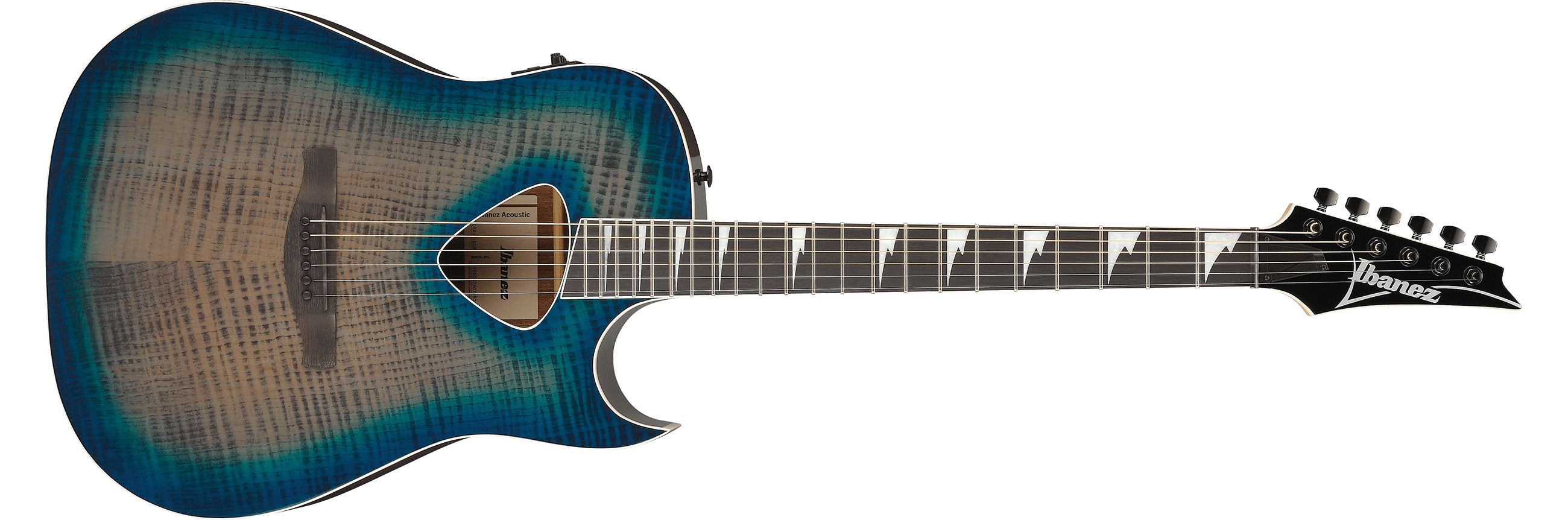

ALT50FA-BDB

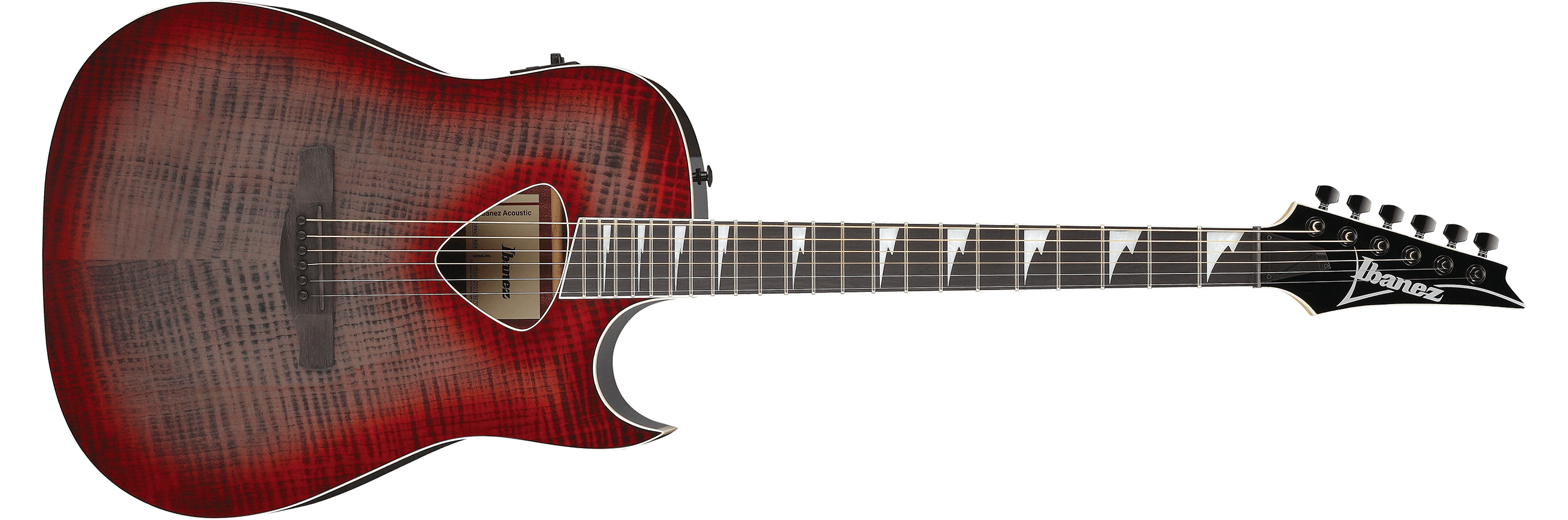

ALT50FA-RDB
ALT50FA-TVT
  • BDB : Blue Doom Burst High Gloss
  • RDB : Red Doom Burst High Gloss
  • TVT : Transparent Violet Sunburst
  • COLOR VARIATION：

Back of the ALT50FA-BDB's headstock

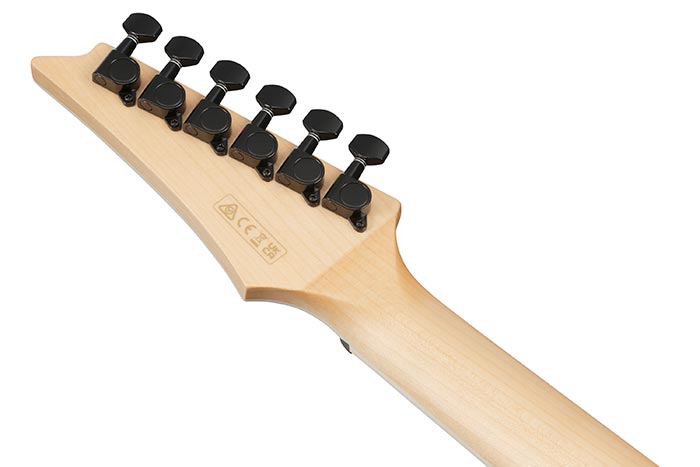

Back of the ALT50FA-RDB's headstock

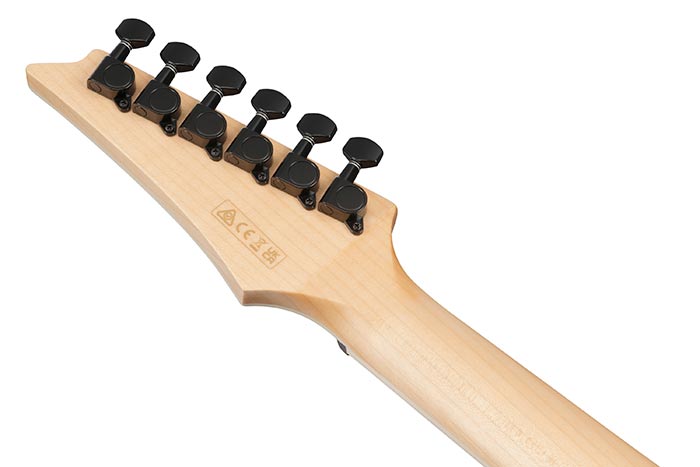

Back of the ALT50FA-TVT's headstock
Back of the ALT50FA-BDB's body

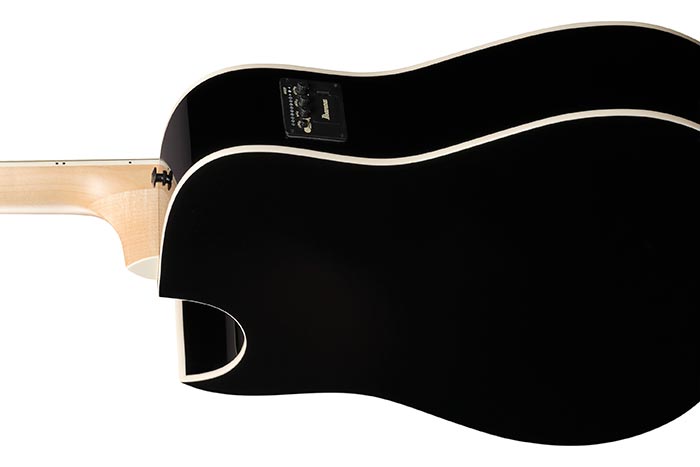

Back of the ALT50FA-RDB's body

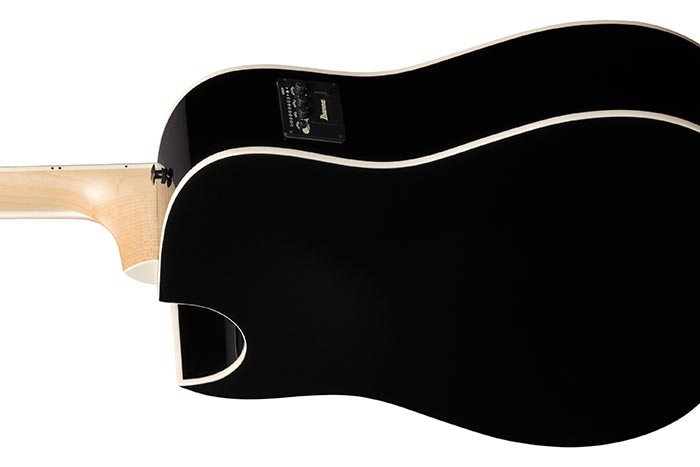

Back of the ALT50FA-TVT's body

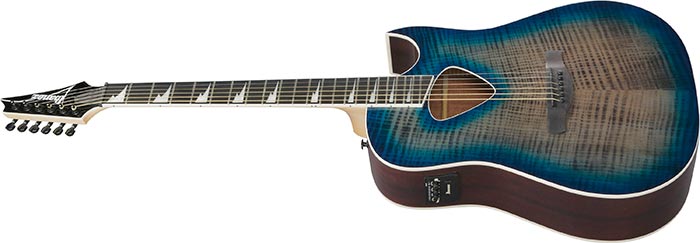

Entire top of the ALT50FA-BDB

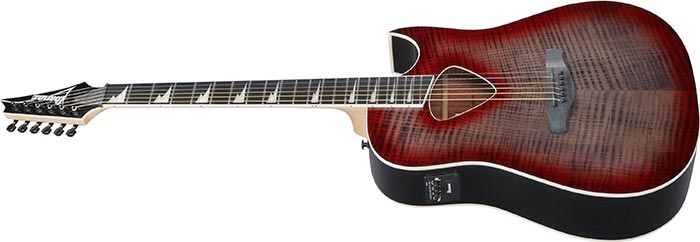

Entire top of the ALT50FA-RDB

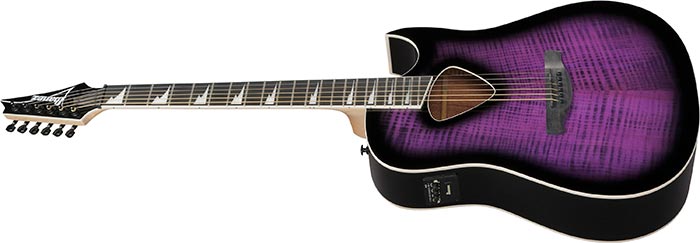

Entire top of the ALT50FA-TVT

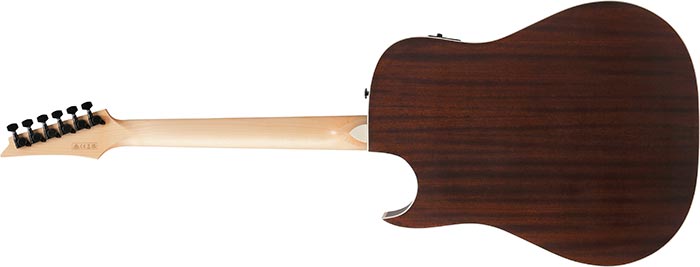

Entire back of the ALT50FA-BDB

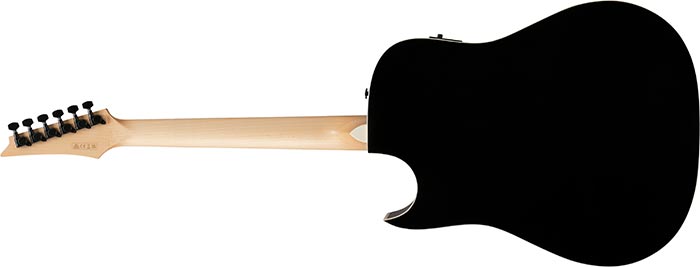

Entire back of the ALT50FA-RDB

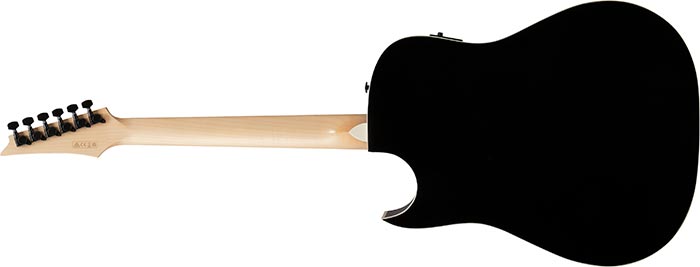

Entire back of the ALT50FA-TVT
Altstar

SPEC

  • SPECS

    • body shape
      Altstar body
    • top
      Flamed Maple Art Grain (Basswood) top
    • back & sides
      Sapele back & Sapele sides
    • neck
      Comfort GripMaple neck
    • fretboard
      Purpleheart fretboard
    • bridge
      Purpleheart bridge
    • inlay
      Sharktooth inlay
    • tuning machine
      Black Die-cast tuners (18:1 gear ratio)
    • number of frets
      22
    • bridge pins
      Ibanez Advantage™
    • strings
      Ibanez IACS61C
    • string gauge
      .010/.014/.023/.030/.039/.047
    • string space
      10.5mm
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • pickup
      Ibanez Undersaddle
    • preamp
      Ibanez AEQ-2T preamp w/Onboard tuner
    • output jack
      1/4" output
    • battery
      9V x1

  • NECK DIMENSIONS

      • Scale :
        648mm/25.5"
      • a : Width
        43mm at NUT
      • b : Width
        55mm at 16F
      • c : Thickness
        20mm at 1F
      • d : Thickness
        21mm at 7F
      • Radius :
        400mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        18 1/8"
      • b : Width
        14 5/8"
      • c : Max Depth
        4 3/8"

    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    ALT50FA's preamp diagram

    DESCRIPTION

    The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.

  • OTHER FEATURES

    • Recommended Case
      GA50C GA50C
    • Large frets

Features

Purpleheart fretboard

Purpleheart fretboard

The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this instrument.

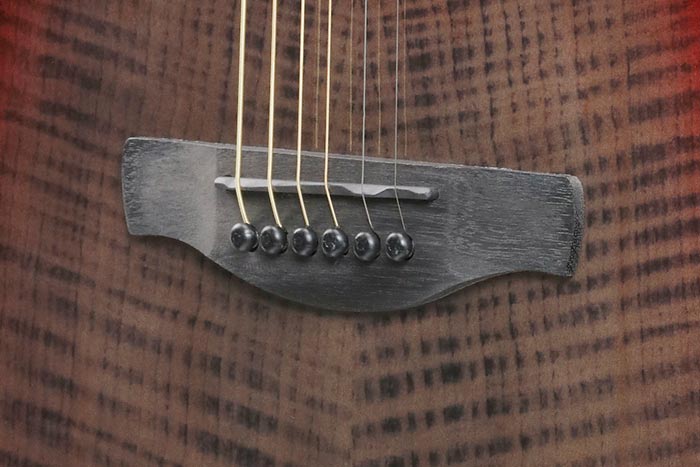

Purpleheart bridge

Purpleheart bridge

The Purpleheart bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Comfort Grip Maple neck

Comfort Grip Maple neck

The Comfort Grip Maple Neck contour provides superior playability.

Ibanez AEQ-2T preamp w/Onboard tuner

Ibanez AEQ-2T preamp w/Onboard tuner

AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.

Large frets

Large frets

The large frets contribute to smooth playability, especially for phrasing involving a series of quick, successive notes.

Ibanez Advantage bridge pins

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
