ALT30

ALT30-BKM
ALT30-DOM
  • BKM : Black Metallic High Gloss
  • DOM : Dark Orange Metallic High Gloss
  • COLOR VARIATION：

Back of the ALT30-BKM's headstock

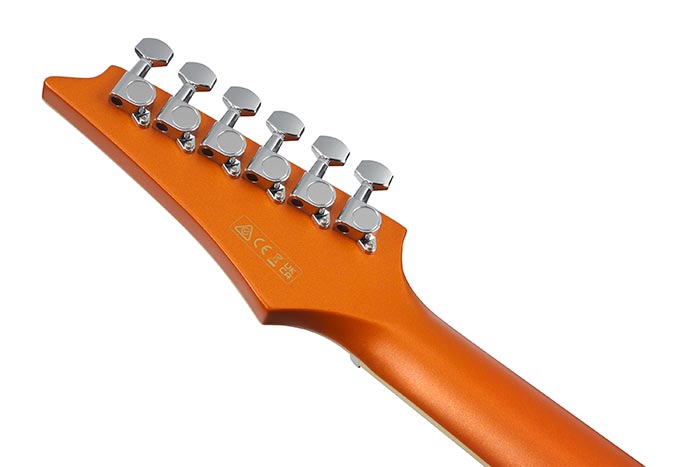

Back of the ALT30-DOM's headstock
Back of the ALT30-BKM's body

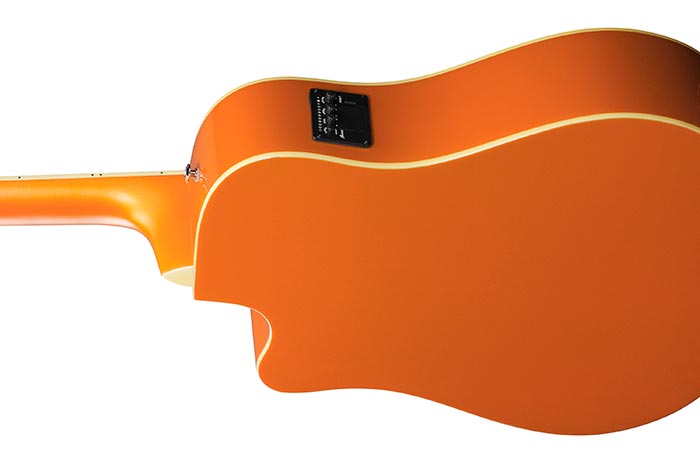

Back of the ALT30-DOM's body
Entire top of the ALT30-BKM
Entire top of the ALT30-DOM
Entire back of the ALT30-BKM

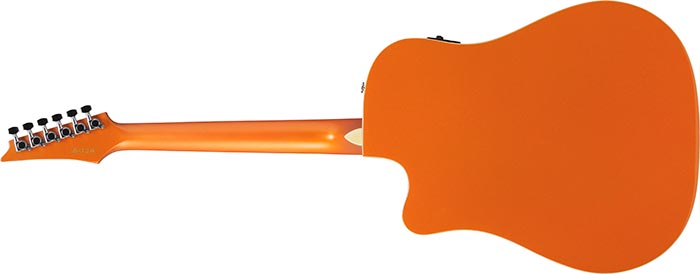

Entire back of the ALT30-DOM
Altstar

SPEC

  • SPECS

    • body shape
      Altstar body
    • top
      Spruce top
    • back & sides
      Sapele back & Sapele sides
    • neck
      Comfort GripMaple neck
    • fretboard
      Rosewood fretboard
    • bridge
      Rosewood bridge
    • inlay
      Altstar specially designed inlay
    • tuning machine
      Chrome Die-cast tuners (18:1 gear ratio)
    • number of frets
      22
    • bridge pins
      Ibanez Advantage™
    • strings
      Ibanez IACS61C
    • string gauge
      .010/.014/.023/.030/.039/.047
    • string space
      10.5mm
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • pickup
      Ibanez Undersaddle
    • preamp
      Ibanez AEQ-2T preamp w/Onboard tuner
    • output jack
      1/4" output
    • battery
      9V x1

  • NECK DIMENSIONS

      • Scale :
        648mm/25.5"
      • a : Width
        43mm at NUT
      • b : Width
        55mm at 16F
      • c : Thickness
        20mm at 1F
      • d : Thickness
        21mm at 7F
      • Radius :
        400mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        18 1/8"
      • b : Width
        14 5/8"
      • c : Max Depth
        4 3/8"

    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    ALT30's preamp diagram

    DESCRIPTION

    The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.

  • OTHER FEATURES

    • Recommended Case
      GA50C GA50C
    • Large frets

Features

Comfort Grip Maple neck

Comfort Grip Maple neck

The Comfort Grip Maple Neck contour provides superior playability.

Ibanez AEQ-2T preamp w/Onboard tuner

Ibanez AEQ-2T preamp w/Onboard tuner

AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.

Rosewood fretboard

Rosewood fretboard

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Rosewood bridge

Rosewood bridge

Ibanez Advantage bridge pins

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
