AFB200

PHOTOS
SPEC
FEATURES
SUPPORT

TKS : Transparent Black Sunburst

COLOR VARIATION：

AFB

SPEC

SPECS
- neck type

  AFB43pc Nyatoh/MapleSet-in
- top/back/body

  Linden topLinden sidesLinden back

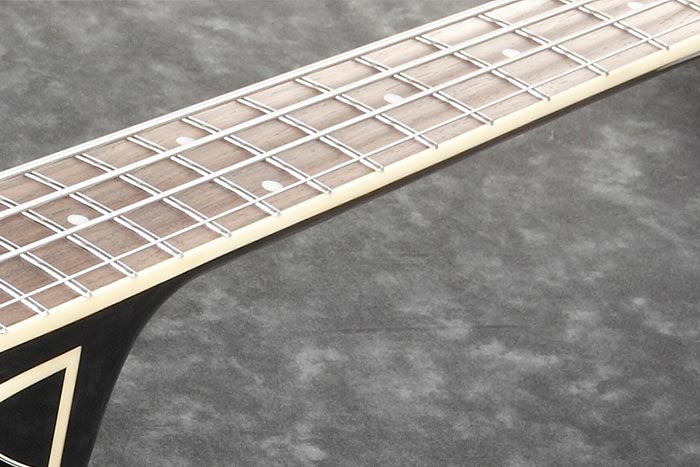

- fretboard

  Bound Rosewood fretboardWhite dot inlay
- fret

  Medium frets
- number of frets

  22
- bridge

  ART-1 wooden bridge
- string space

  19mm
- tailpiece

  FBT40 tailpiece
- neck pickup

  Classic Elite Bass neck pickupPassive
- bridge pickup

  Classic Elite Bass bridge pickupPassive
- factory tuning

  1G,2D,3A,4E
- string gauge

  .050/.070/.085/.105
- hardware color

  Chrome
NECK DIMENSIONS
- - Scale :

    770mm/30.3"
  - a : Width

    42mm at NUT
  - b : Width

    61mm at 22F
  - c : Thickness

    21.5mm at 1F
  - d : Thickness

    24mm at 9F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
CONTROLS

DESCRIPTION

With the bass held in the playing position, the pickup selector switch is the control closest to the lower edge of the body. Just above the selector switch, there are two knobs arranged diagonally. The knob closest to the input jack is the tone knob. The knob closest to the neck is the volume knob.
OTHER FEATURES
- Recommended Case
- AFB100C

Features

3pc Nyatoh/Maple neck

3pc Nyatoh/Maple neck

The 3pc Nyatoh/Maple Neck provides a rich mid-low end and great resonance.

Classic Elite Bass Pickup

Classic Elite Bass Pickup

Classic Elite Bass Pickups deliver classic tone, punch and extra output.

ART-1 Wooden Bridge

ART-1 Wooden Bridge

The ART-1 wooden bridge gives a more natural acoustic sound.

FBT40 tailpiece

FBT40 tailpiece

FBT40 tailpiece provides excellent tuning stability.
