AF2000
SPEC
-
SPECS
-
neck typeAF Artstar3pc African Mahogany/S-TECH WOOD Roasted MapleSet-in neck
-
top/back/sideSpruce top Figured Anigre backFigured Anigre sides
-
fretboardBound Ebony fretboardAcrylic & Abalone block inlay
-
fretMedium fretsPrestige fret edge treatment
-
number of frets20
-
bridgeEbony bridge
-
string space10.4mm
-
tailpieceAF Special tailpiece
-
neck pickupSuper 58 (H) neck pickupPassive/Alnico
-
bridge pickupSuper 58 (H) bridge pickupPassive/Alnico
-
factory tuning1E,2B,3G,4D,5A,6E
-
string gauge.011/.015/.022w/.030/.040/.050
-
nutBone nut
-
hardware colorGold
-
-
NECK DIMENSIONS
-
-
Scale :628mm/24.7"
-
a : Width43mm at NUT
-
b : Width56.5mm at 20F
-
c : Thickness20mm at 1F
-
d : Thickness22mm at 12F
-
Radius :305mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
-
a : Length20 "
-
b : Width16 1/2"
-
c : Max Depth3 3/4"
-
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
There are two knobs located along the lower edge of the body. The knob closest to the end of the body is the bridge tone knob, and the knob closest to the sound hole is the bridge volume knob. Above these, there are two more knobs closer to the bridge. The knob closest to the end of the body is the neck tone knob, and the knob closest to the sound hole is the neck volume knob. The pickup selector is located above the neck pickup.
-
OTHER FEATURES
-
Gotoh® machine heads
-
Hardshell case included
-
Features
AF Special tailpiece
The stunning AF Special tailpiece offers better tuning stability and more sustain.
3pc African Mahogany/S-TECH WOOD Roasted Maple neck
The S-TECH special roasted treatment increases the wood's stability, durability, water resistance and tolerance of temperature changes.
Bone Nut
The Bone nut provides richer tone throughout the entire register.
Super 58 Pickups
Super 58 pickups feature moderate output and vintage tone.

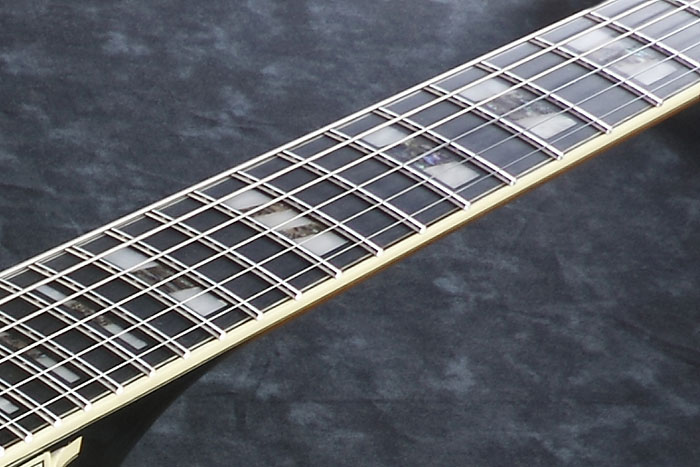

Ebony Fretboard w/Artstar Fret Edge Treatment
Ebony produces a tight low end and mid-range with a defined high end attack. It also delivers quick response and rich sustain.
