TKS : Transparent Black Sunburst High Gloss
AMS : Amber Sunburst High Gloss

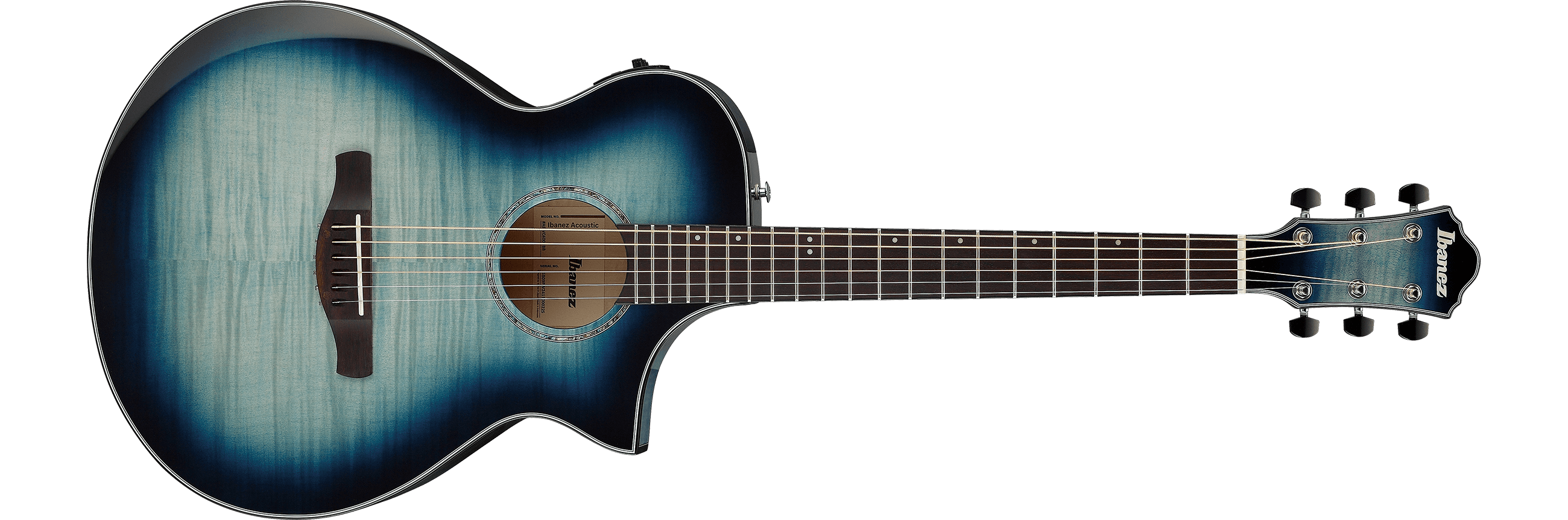

IBB : Indigo Blue Burst High Gloss

COLOR VARIATION：

COLOR VARIATION

AEW

SPEC

SPECS
- body shape

  AEWC specially designed comfort body

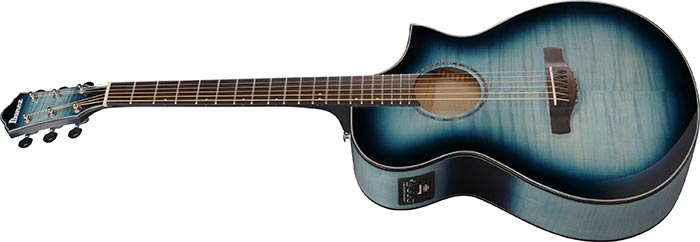

- top

  Flamed Maple top

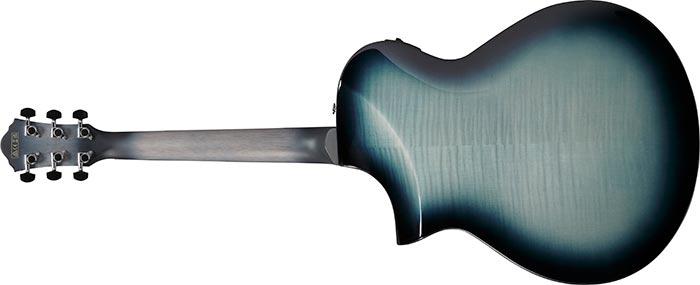

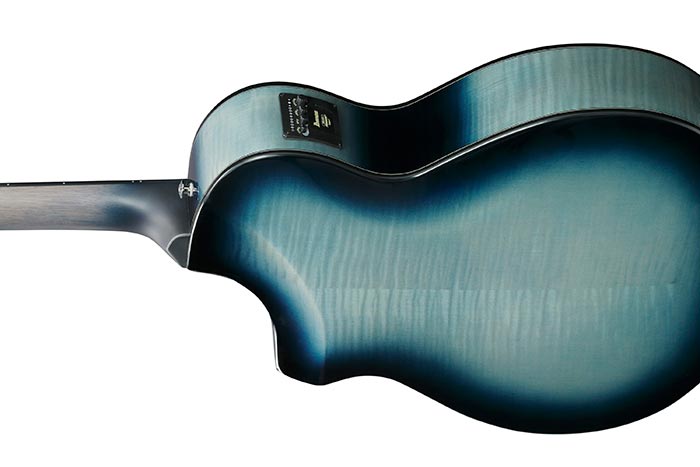

- back & sides

  Flamed Maple back & Flamed Maple sides
- neck

  AEWC Asymmetric comfortNyatoh neck
- fretboard

  Rosewood fretboard
- bridge

  Rosewood AEWC original top loading bridge
- inlay

  Off-set white dot inlay
- soundhole rosette

  Abalone rosette

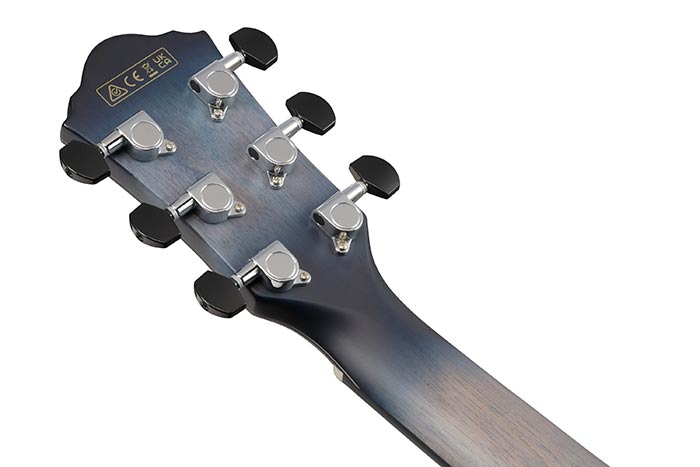

- tuning machine

  Chrome Die-cast tuners w/Black knobs (18:1 gear ratio)
- number of frets

  20
- strings

  Ibanez IACS6C
- string gauge

  .012/.016/.024/.032/.042/.053
- string space

  11mm
- factory tuning

  1E,2B,3G,4D,5A,6E
- pickup

  Fishman® S-Core
- preamp

  Ibanez AEQ-SP2 preamp w/Onboard tuner
- output jack

  Balanced XLR & 1/4" outputs
- battery

  9V x1
NECK DIMENSIONS
- Scale :

  634mm/25"
- a : Width

  43mm at NUT
- b : Width

  55mm at 14F
- c : Thickness

  20mm at 1F
- d : Thickness

  21mm at 7F
- Radius :

  400mmR
DESCRIPTION

Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the first fret
c： Thickness of the neck at the first fret
d: Thickness of the neck at the twelfth fret
Radius: Radius of the fingerboard
BODY DIMENSIONS
- a : Length

  19 3/8"
- b : Width

  15"
- c : Max Depth

  4"
DESCRIPTION

Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
PREAMP

DESCRIPTION

The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
OTHER FEATURES
- Recommended Case

  AC100C
- Large frets
- Forearm contour
