AEWC400

AEWC400-TKS
AEWC400-AMS
AEWC400-IBB
  • TKS : Transparent Black Sunburst High Gloss
  • AMS : Amber Sunburst High Gloss
  • IBB : Indigo Blue Burst High Gloss
  • COLOR VARIATION：

Back of the AEWC400-TKS's headstock
Back of the AEWC400-AMS's headstock

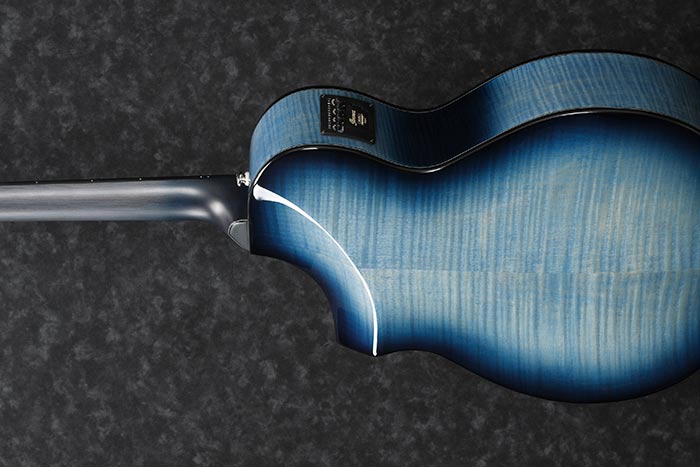

Back of the AEWC400-IBB's headstock
Back of the AEWC400-TKS's body
Back of the AEWC400-AMS's body
Back of the AEWC400-IBB's body
Entire top of the AEWC400-TKS
Entire top of the AEWC400-AMS
Entire top of the AEWC400-IBB
Entire back of the AEWC400-TKS
Entire back of the AEWC400-AMS
Entire back of the AEWC400-IBB
AEW

SPEC

  • SPECS

    • body shape
      AEWC specially designed comfort body
    • top
      Flamed Maple top
    • back & sides
      Flamed Maple back & Flamed Maple sides
    • neck
      AEWC Asymmetric comfortNyatoh neck
    • fretboard
      Rosewood fretboard
    • bridge
      Rosewood AEWC original top loading bridge
    • inlay
      Off-set white dot inlay
    • soundhole rosette
      Abalone
    • tuning machine
      Chrome Die-cast tuners w/Black knobs (18:1 gear ratio)
    • number of frets
      20
    • strings
      Ibanez IACS6C
    • string gauge
      .012/.016/.024/.032/.042/.053
    • string space
      11mm
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • pickup
      Fishman® S-Core
    • preamp
      Ibanez AEQ-SP2 preamp w/Onboard tuner
    • output jack
      Balanced XLR & 1/4" outputs
    • battery
      9V x1

  • NECK DIMENSIONS

      • Scale :
        634mm/25"
      • a : Width
        43mm at NUT
      • b : Width
        55mm at 14F
      • c : Thickness
        20mm at 1F
      • d : Thickness
        21mm at 7F
      • Radius :
        400mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        19 3/8"
      • b : Width
        15"
      • c : Max Depth
        4"

    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    AEWC400's preamp diagram

    DESCRIPTION

    The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.

  • OTHER FEATURES

    • Recommended Case
      AC100C AC100C
    • Large frets
    • Forearm contour

Features

Nyatoh neck

Nyatoh neck

The Nyatoh neck provides a rich mid-low end.

Ibanez AEQ-SP2 preamp w/Onboard tuner

Ibanez AEQ-SP2 preamp w/Onboard tuner

The Ibanez AEQ-SP2 Preamp delivers excellent sonic reproduction and control of tonal characteristics and easy operation

Large frets

Large frets

The large frets contribute to smooth playability, especially for phrasing involving a series of quick, successive notes.

Flamed Maple top

Flamed Maple top

The Flamed Maple top creates an attractive visual profile and offers a bright and tight tone.

Flamed Maple back and sides

Flamed Maple back and sides

Flamed Maple back and sides create an attractive visual profile and offer bright and tight tones.

Forearm contour

Forearm contour

The specially designed forearm contour on the body top offers playing comfort and adds an elegant accent to its appearance.

Rosewood top loading bridge

Rosewood top loading bridge

Rosewood top loading bridge offers fast and easy string changing without bridge pins.
