AEWC32FM

PHOTOS
SPEC
FEATURES
SUPPORT

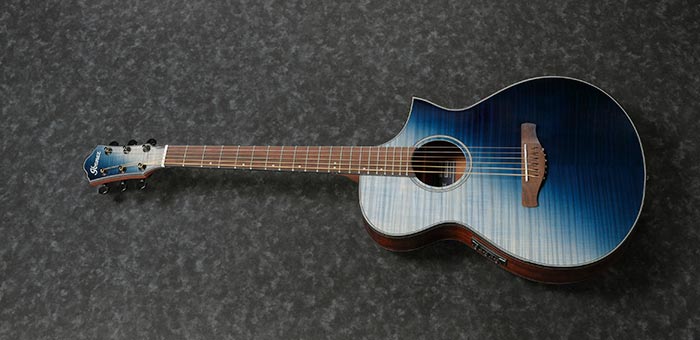

ISF : Indigo Sunset Fade High Gloss

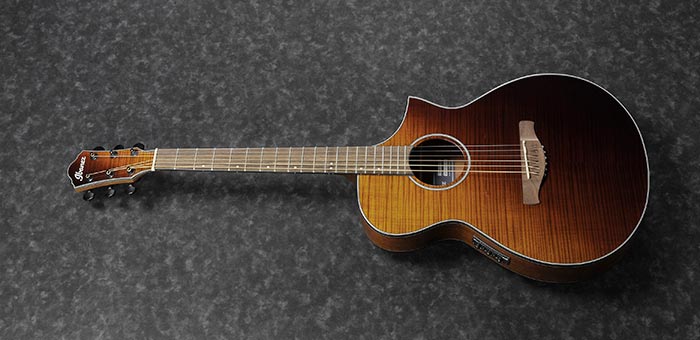

ASF : Amber Sunset Fade

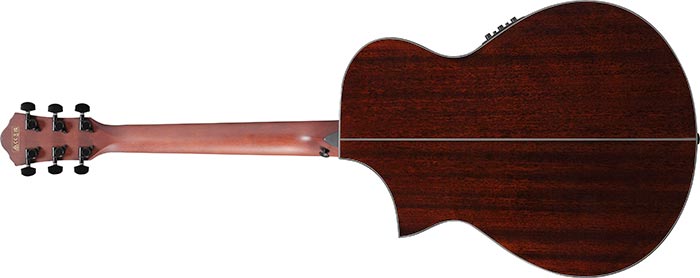

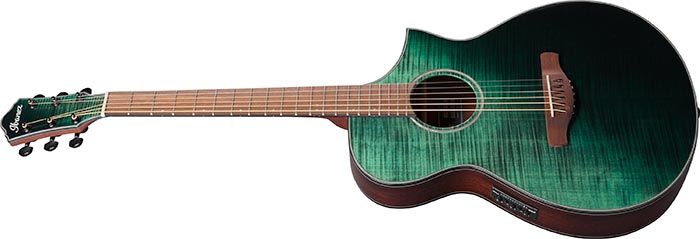

GSF : Dark Green Sunset Fade High Gloss

COLOR VARIATION：

AEW

SPEC

SPECS
- body shape

  AEWC body
- top

  Flamed Maple top

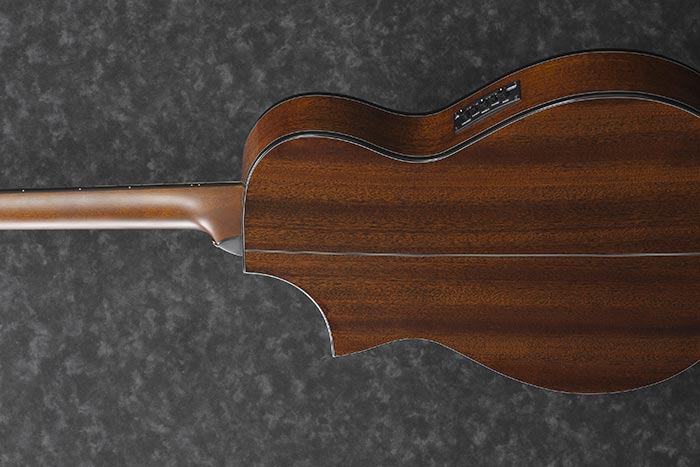

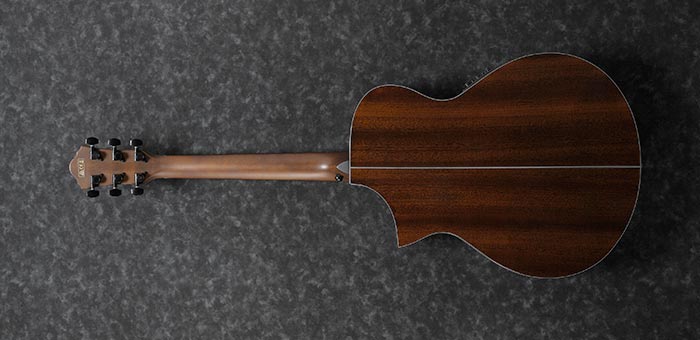

- back & sides

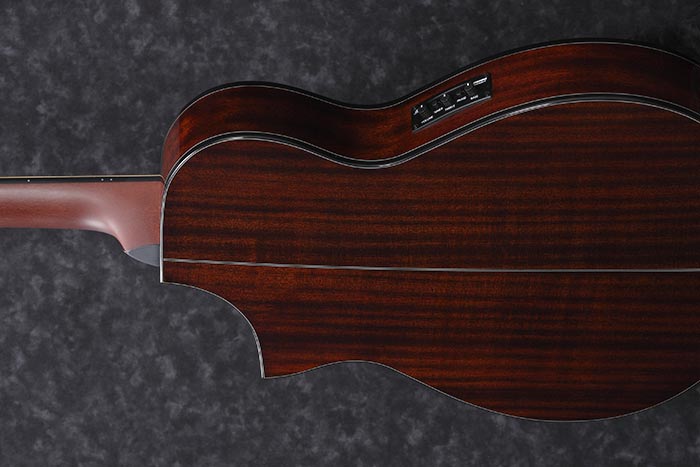

  Sapele back & Sapele sides
- neck

  Comfort GripNyatoh neck
- fretboard

  Rosewood fretboard
- bridge

  Rosewood top loading bridge
- inlay

  Off-set white dot inlay
- soundhole rosette

  Acrylic

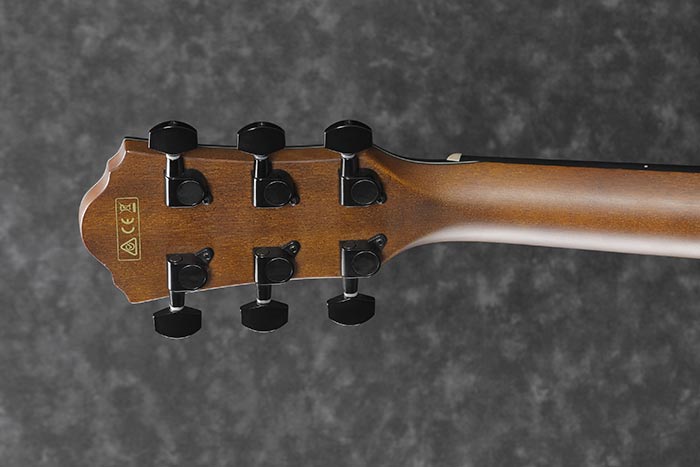

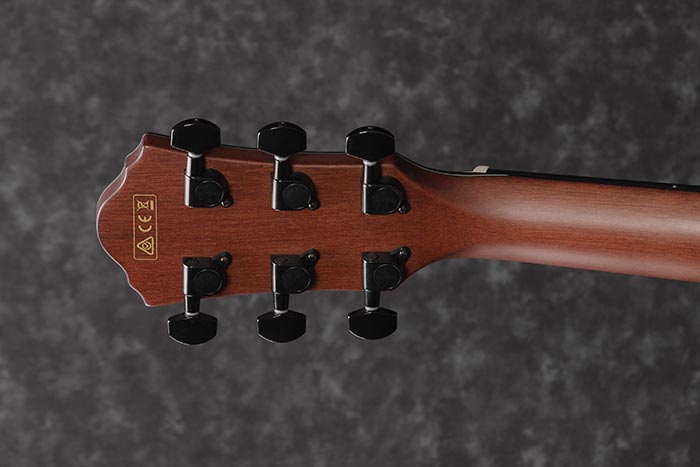

- tuning machine

  Black Die-cast tuners (18:1 gear ratio)
- number of frets

  20
- strings

  Ibanez IACS6C
- string gauge

  .012/.016/.024/.032/.042/.053
- string space

  11mm
- factory tuning

  1E,2B,3G,4D,5A,6E
- pickup

  Fishman® S-Core

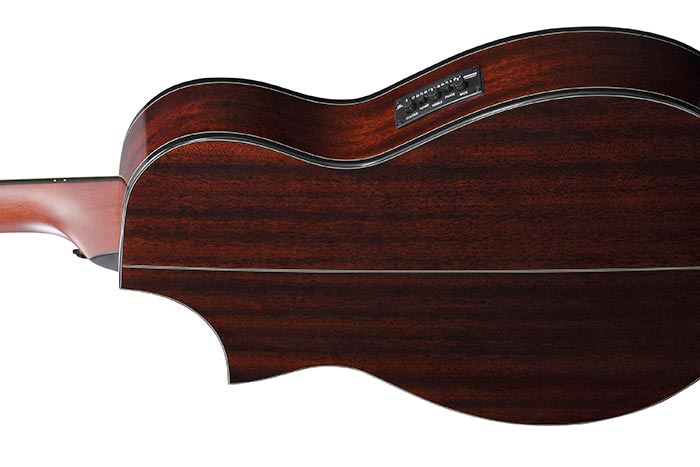

- preamp

  Ibanez AEQ210TF preamp w/Onboard tuner
- output jack

  1/4" output
NECK DIMENSIONS
- - Scale :

    634mm/25"
  - a : Width

    43mm at NUT
  - b : Width

    55mm at 14F
  - c : Thickness

    20mm at 1F
  - d : Thickness

    21mm at 7F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    19 1/4"
  - b : Width

    15 "
  - c : Max Depth

    2 3/4"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
PREAMP

DESCRIPTION

The guitar top side of the control panel is the top.
OTHER FEATURES
- Recommended Case

  AEG10C
- Large fret
