TEH : Transparent Emerald Burst High Gloss top, Dark Brown High Gloss back and sides
TKH : Transparent Black Sunburst High Gloss top, Dark Brown High Gloss back and sides
TLH : Transparent Blue Sunburst High Gloss top, Dark Brown High Gloss back and sides

COLOR VARIATION：

AEW

SPEC

SPECS
- body shape

  AEWC body
- top

  Quilted Maple Art Grain (Basswood) top
- back & sides

  Sapele back & Sapele sides
- neck

  Comfort GripNyatoh neck
- fretboard

  Rosewood fretboard
- bridge

  Rosewood AEWC original top loading bridge
- inlay

  Off-set white dot inlay
- soundhole rosette

  Water decal
- tuning machine

  Chrome Die-cast tuners (18:1 gear ratio)
- number of frets

  20
- strings

  Ibanez IACS6C
- string gauge

  .012/.016/.024/.032/.042/.053
- string space

  11mm
- factory tuning

  1E,2B,3G,4D,5A,6E
- pickup

  Ibanez Undersaddle
- preamp

  Ibanez AEQ-2T preamp w/Onboard tuner
- output jack

  1/4" output
- battery

  9V x1
NECK DIMENSIONS
- - Scale :

    634mm/25"
  - a : Width

    43mm at NUT
  - b : Width

    55mm at 14F
  - c : Thickness

    20mm at 1F
  - d : Thickness

    21mm at 7F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    19 3/8"
  - b : Width

    15"
  - c : Max Depth

    4"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
PREAMP

DESCRIPTION

The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
OTHER FEATURES
- Recommended Case

  AC100C

Features

Sapele back and sides

Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

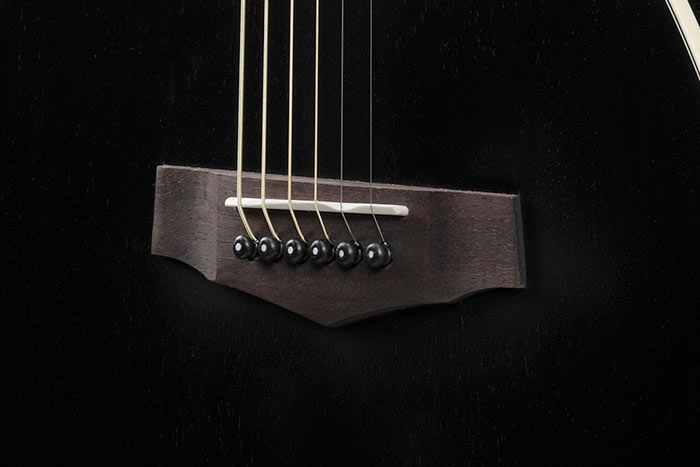

Ibanez Undersaddle pickup

The Ibanez Undersaddle Pickup accurately reproduces the acoustic nature of the bass.

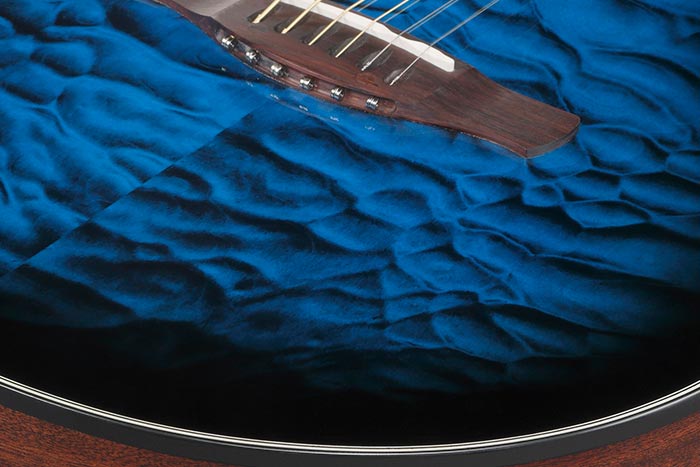

Quilted Maple Art Grain (Basswood) top

The Quilted Maple Art Grain (Basswood) top displaying a gorgeous wood grain.

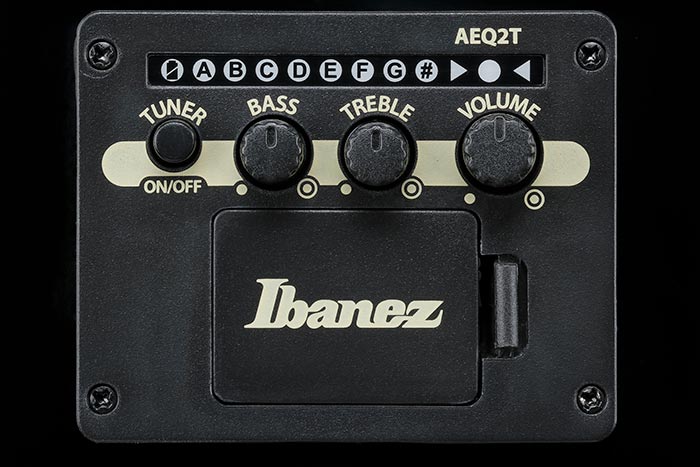

Ibanez AEQ-2T preamp w/Onboard tuner

AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.

Rosewood fretboard

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Rosewood top loading bridge

Rosewood top loading bridge offers fast and easy string changing without bridge pins.

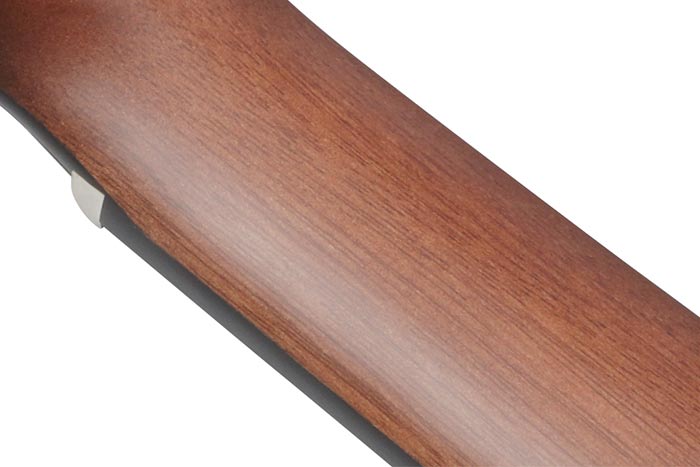

Comfort Grip Nyatoh neck

The Comfort Grip Nyatoh Neck contour provides superior playability.
