AEG70

PHOTOS
SPEC
FEATURES
SUPPORT

TCH : Transparent Charcoal Burst High Gloss, Natural High Gloss Back and Sides
VVH : Vintage Violin High Gloss, Natural High Gloss Back and Sides
PIH : Purple Iris Burst High Gloss, Natural High Gloss Back and Sides

COLOR VARIATION：

AEG

SPEC

SPECS
- body shape

  AEG body
- top

  Flamed Maple top

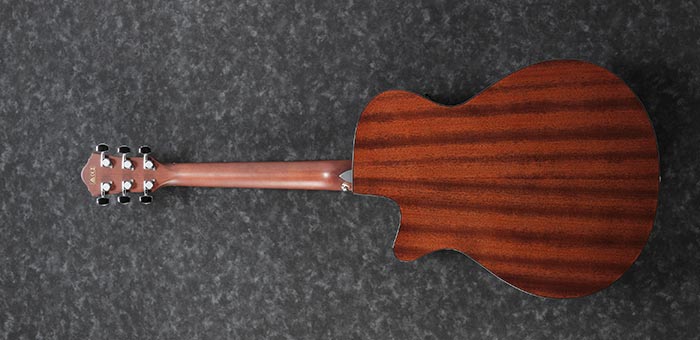

- back & sides

  Sapele back & Sapele sides
- neck

  Comfort GripNyatoh neck
- fretboard

  Rosewood fretboard
- bridge

  Rosewood bridge
- soundhole rosette

  Acrylic

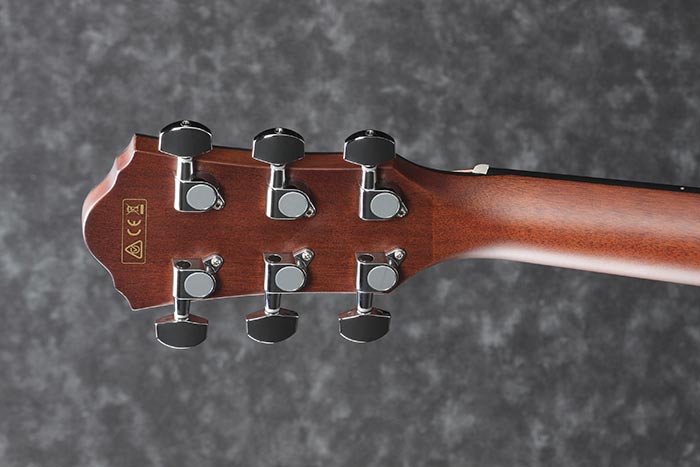

- tuning machine

  Chrome Die-cast tuners (18:1 gear ratio)
- number of frets

  20
- bridge pins

  Ibanez Advantage™
- strings

  Ibanez IACSP6C
- string gauge

  .012/.016/.024/.032/.042/.053
- string space

  11mm
- factory tuning

  1E,2B,3G,4D,5A,6E
- pickup

  Ibanez T-bar II Undersaddle
- preamp

  Ibanez AEQ-TTS preamp w/Onboard tuner
- output jack

  1/4" output
- battery

  9V x1
NECK DIMENSIONS
- - Scale :

    634mm/25"
  - a : Width

    43mm at NUT
  - b : Width

    55mm at 14F
  - c : Thickness

    20mm at 1F
  - d : Thickness

    21mm at 7F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    19 3/8"
  - b : Width

    15"
  - c : Max Depth

    3 3/4"
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
PREAMP

DESCRIPTION

The neck side of the preamp is the top of the control panel. There is an LCD screen readout for tune at the top center of the control unit. The volume knob is on the far left, and the shape knob is on the far right. In between both knobs is a tuner on/off switch.
OTHER FEATURES
- Recommended Case

  AEG10C

Features

Sapele back and sides

Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

Rosewood fretboard

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Rosewood bridge

Ibanez AEQ-TTS preamp w/Onboard Tuner

The small and simple preamp has only two control knobs, volume and shape. This at-a-glance tone control offers natural acoustic sound in the center position. It allows players to adjust the tone easily and enables them to go from low, fat and powerful tones to a bright and crisp sound while adjusting only one knob. A new easy-to-read onboard tuner with LCD(liquid crystal display) is located on the preamp.

Comfort Grip Nyatoh neck

The Comfort Grip Nyatoh Neck contour provides superior playability.

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
