AEG50N

AEG50N-BKH
  • BKH : Black High Gloss Top, Natural High Gloss Back and Sides
  • COLOR VARIATION：

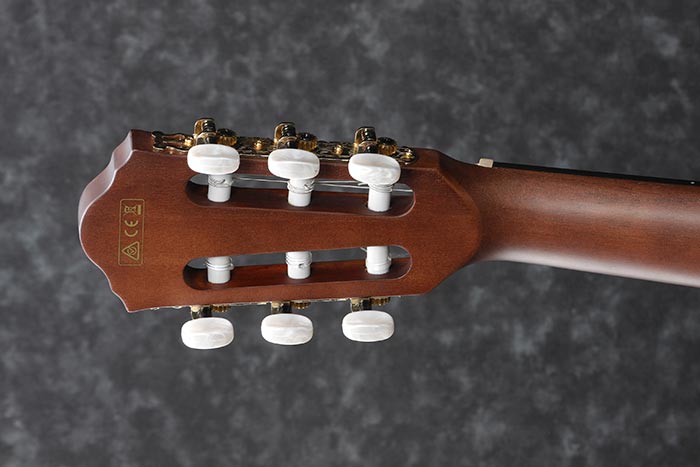

Back of the AEG50N-BKH's headstock

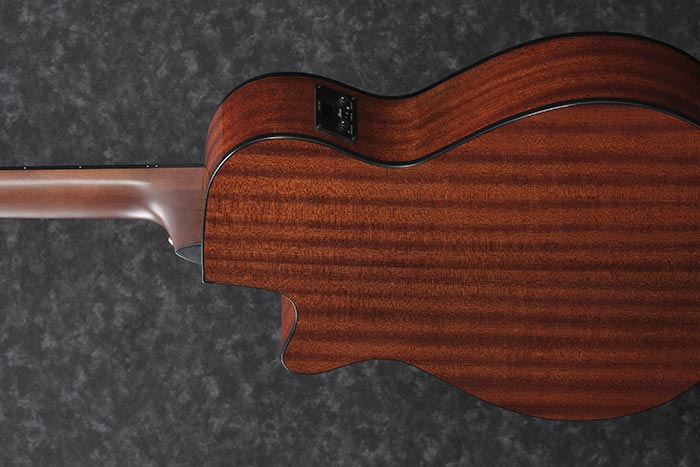

Back of the AEG50N-BKH's body

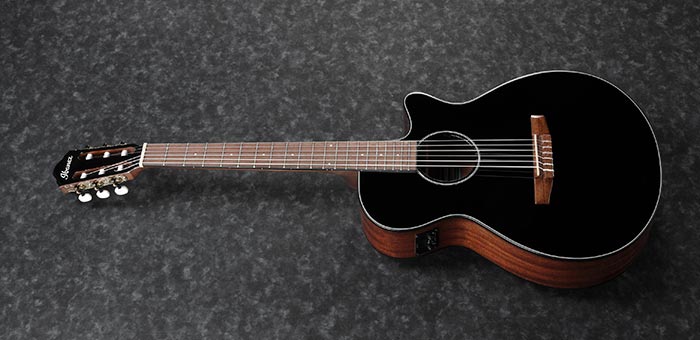

Entire top of the AEG50N-BKH
Entire back of the AEG50N-BKH
AEG

SPEC

  • SPECS

    • body shape
      AEG body
    • top
      Spruce top
    • back & sides
      Sapele back & Sapele sides
    • neck
      AEGNyatoh neck
    • fretboard
      Rosewood fretboard
    • bridge
      Rosewood bridge
    • inlay
      White dot inlay
    • soundhole rosette
      Acrylic
    • tuning machine
      Gold Classical tuners
    • number of frets
      20
    • strings
      Ibanez ICLS6NT
    • string gauge
      .0280/.0322/.0403/.029/.035/.043
    • string space
      11.6mm
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • pickup
      Ibanez T-bar II Undersaddle
    • preamp
      Ibanez AEQ-TTS preamp w/Onboard tuner
    • output jack
      1/4" output
    • battery
      9V x1

  • NECK DIMENSIONS

      • Scale :
        648mm/25.5"
      • a : Width
        46mm at NUT
      • b : Width
        58mm at 14F
      • c : Thickness
        21mm at 1F
      • d : Thickness
        22mm at 7F
      • Radius :
        Flat

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        19 3/8"
      • b : Width
        15 "
      • c : Max Depth
        3 3/4"

    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    AEG50N's preamp diagram

    DESCRIPTION

    The neck side of the preamp is the top of the control panel. There is an LCD screen readout for tune at the top center of the control unit. The volume knob is on the far left, and the shape knob is on the far right. In between both knobs is a tuner on/off switch.

  • OTHER FEATURES

Features

Spruce top

Spruce top

Spruce remains the most popular wood for acoustic guitar tops, mainly due to its pristine tonal clarity.

Sapele back and sides

Sapele back and sides

Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.

Rosewood fretboard

Rosewood fretboard

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

Rosewood bridge

Rosewood bridge

Ibanez AEQ-TTS preamp w/Onboard Tuner

Ibanez AEQ-TTS preamp w/Onboard Tuner

The small and simple preamp has only two control knobs, volume and shape. This at-a-glance tone control offers natural acoustic sound in the center position. It allows players to adjust the tone easily and enables them to go from low, fat and powerful tones to a bright and crisp sound while adjusting only one knob. A new easy-to-read onboard tuner with LCD(liquid crystal display) is located on the preamp.
