AEB105E

AEB105E-NT
  • NT : Natural High Gloss
  • COLOR VARIATION：

Entire top of the AEB105E-NT

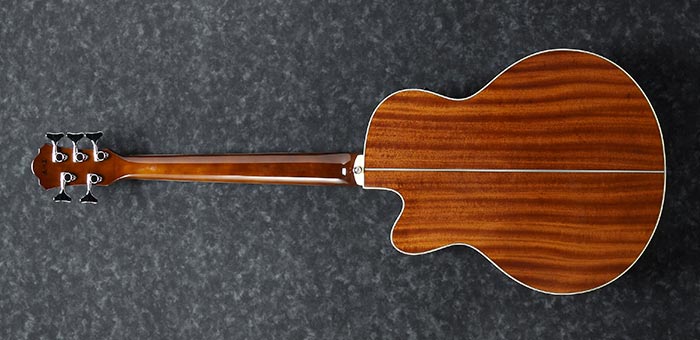

Back of the AEB105E-NT's body
Entire top of the AEB105E-NT
Entire back of the AEB105E-NT
ACOUSTIC BASS

SPEC

  • SPECS

    • body shape
      AEB body
    • top
      Spruce top
    • back & sides
      Sapele back & Sapele sides
    • neck
      AEBMaple neck
    • fretboard
      Purpleheart fretboard
    • bridge
      Purpleheart bridge
    • inlay
      White dot inlay
    • soundhole rosette
      Abalone
    • tuning machine
      Chrome Die-cast tuners
    • nut material
      Bone
    • number of frets
      22
    • saddle material
      Bone
    • string gauge
      .040/.060/.075/.095/.130
    • string space
      16.5mm
    • factory tuning
      1G,2D,3A,4E,5B
    • pickup
      Fishman® S-Core
    • preamp
      Ibanez AEQ-SP2 preamp w/Onboard tuner
    • output jack
      Balanced XLR & 1/4" outputs

  • NECK DIMENSIONS

      • Scale :
        812.8mm/32"
      • a : Width
        47mm at NUT
      • b : Width
        65mm at 14F
      • c : Thickness
        23.5mm at 1F
      • d : Thickness
        25.5mm at 7F
      • Radius :
        400mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        20 1/8"
      • b : Width
        16 1/4"
      • c : Max Depth
        5 "

    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    AEB105E's preamp diagram

    DESCRIPTION

    The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.

  • OTHER FEATURES

Features

Ibanez AEQ-SP2 preamp w/Onboard tuner

Ibanez AEQ-SP2 preamp w/Onboard tuner

The Ibanez AEQ-SP2 Preamp delivers excellent sonic reproduction and control of tonal characteristics and easy operation

Maple neck

Maple neck

The Maple neck provides stability and bright tonal character.
