AE440-LGS
  • LGS : Natural Low Gloss
  • COLOR VARIATION:
AE

SPEC

  • SPECS

    • body shape
      AE body
    • bracing
      X-M Bracing
    • top
      Solid African Mahogany top
    • back & sides
      Solid African Mahogany back & Solid African Mahogany sides
    • neck
      Advanced Comfort Grip with Rounded Fretboard EdgeAfrican Mahogany/Pau Ferro 5pc neck
    • fretboard
      Macassar Ebony fretboard
    • bridge
      Macassar Ebony scalloped bridge
    • body binding
      Macassar Ebony body binding with rounded body edge
    • top board purfling
      Wooden purfling
    • inlay
      Specially designed Wooden Vine inlay
    • soundhole rosette
      Abalone and Wooden rosette with Soundhole binding
    • tuning machine
      Chrome Die-cast tuners (18:1 gear ratio)
    • nut material
      Bone
    • number of frets
      20
    • saddle material
      Compensated Bone saddle
    • bridge pins
      Ebony with abalone dot
    • strings
      D'Addario® XTAPB1152
    • string gauge
      .011/.015/.022/.032/.042/.052
    • string space
      11mm
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • pickup
      Ibanez AP11 Magnetic, T-bar Undersaddle & Contact
    • preamp
      Ibanez Custom Electronics w/ Magnetic Pickup Volume, Undersaddle Pickup Volume and Contact Pickup Volume
    • output jack
      Dual Outputs (Mono Out / Stereo Out)
    • battery
      9V battery
  • NECK DIMENSIONS

      • Scale :
        648mm/25.5"
      • a : Width
        44mm at NUT
      • b : Width
        55mm at 14F
      • c : Thickness
        20mm at 1F
      • d : Thickness
        21mm at 7F
      • Radius :
        400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        20 1/8"
      • b : Width
        16 1/4"
      • c : Max Depth
        4 3/4"
    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    AE440's preamp diagram

    DESCRIPTION

    There knob closest to the player is the volume for the magnetic pickup. The knob futhest away from the player is the volume knob for the contact pickup.

  • OTHER FEATURES

    • Hardshell case included (ROADTOUR)
    • Luminlay side dots

Features

Ibanez AP11 Magnetic / T-bar Undersaddle / Contact pickups

Ibanez AP11 Magnetic / T-bar Undersaddle / Contact pickups

The AP11 pickup is small, lightweight, and positioned so it won't inhibit the natural vibrations of the top wood. The pickup generates a highly responsive sound with minimal feedback and delivers a lively response throughout the entire frequency range. The sound is transparent and reflects the guitar's natural acoustic tone while preserving presence and mid-range. The AP11 also works well with effects such as reverb, chorus, and many others. The T-bar under-saddle pickup reduces noise and provides wide range of natural piezo-style sound. It also captures palm hits and delivers a bass drum-like response. The Ibanez contact pickup consists of three transducers facilitating organic individual note clarity and naturally reproduces percussive body tapping techniques. This pickup also adds an airy depth of tone and brightness to the amplified sound.

Ibanez Custom Electronics w/ Magnetic Pickup Volume, Undersaddle Pickup Volume and Contact Pickup Volume

Ibanez Custom Electronics w/ Magnetic Pickup Volume, Undersaddle Pickup Volume and Contact Pickup Volume

Ibanez Custom Electronics amplify the signal of each pickup naturally throughout the entire tonal spectrum. Blending the sound of the three pickups allows the player to create a variety of tones to suit their particular playing style or genre of music.

Dual Outputs (Magnetic/Undersaddle/Contact pickup outputs)

Dual Outputs (Magnetic/Undersaddle/Contact pickup outputs)

Plugged into the endpin jack only: Magnetic pickup + Undersaddle pickup + Contact pickup with mixed output
Plugged into both the endpin jack and the open jack: Endpin Jack = Magnetic pickup output, Open Jack = Undersaddle + Contact pickup with Mixed output

Advanced Comfort Grip with Rounded Fretboard Edge

Advanced Comfort Grip with Rounded Fretboard Edge

In order to achieve supreme playability, the neck was specially designed with Thin-C shape style comfort grip with fingerboard's rounded edge.
“Advanced Comfort Grip” neck shape is an Ibanez original that feels “just right” to most players. Part of its excellent feel is due to its purposeful asymmetry from the 1st fret to the 7th fret. After the 7th fret, the neck becomes symmetrical up to the body.

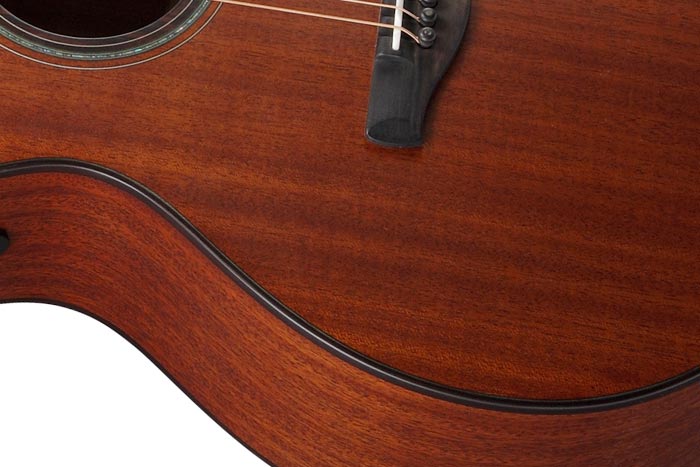

Solid African Mahogany top

Solid African Mahogany top

Solid African Mahogany top offers a full-bodied and warm mid-range and a bright tone.

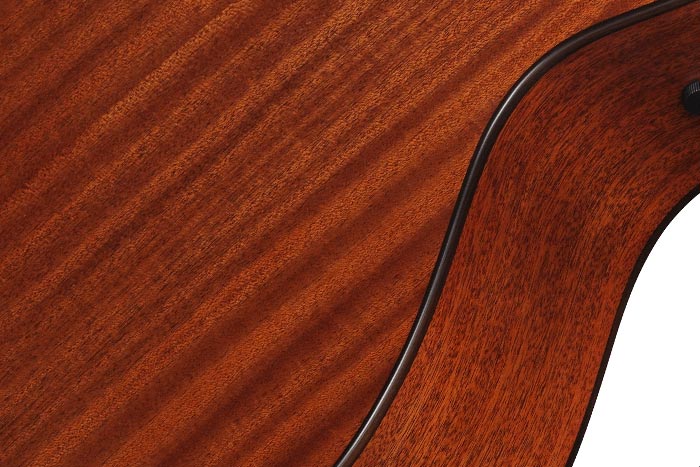

Solid African Mahogany back and sides

Solid African Mahogany back and sides

Solid African Mahogany back and sides offer full-bodied warm mid range.

Macassar Ebony Scalloped bridge

Macassar Ebony Scalloped bridge

The lightweight, scalloped bridge improves vibration efficiency for better resonance, as well as providing more flexibility in adjusting the action than usual bridge.

X-M Bracing

X-M Bracing

After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.

AE body shape

AE body shape

Designed for projection, balance, and comfort, the AE's perfectly crafted contemporary body shape offers the best of all worlds.

Hardshell case included (ROADTOUR)

Hardshell case included (ROADTOUR)

Luminescent Side Dot Inlays

Luminescent Side Dot Inlays

Luminescent side dot inlays line the side of the neck for more easily navigating the fretboard in low light environments.

Jumbo Frets

Jumbo Frets

The jumbo frets support easy fingering.

African Mahogany/Pau Ferro 5pc neck

African Mahogany/Pau Ferro 5pc neck

5pc neck construction boasts increased stability.

Macassar Ebony fretboard

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
