AE240JR
SPEC
-
SPECS
-
body shapeAE Junior body
-
bracingIbanez Original Scalloped X bracing / Tone Projection Back Bracing
-
topSolid Okoume top
-
back & sidesOkoume back & Okoume sides
-
neckAENyatoh neck
-
fretboardOvangkol fretboard
-
bridgeOvangkol bridge
-
inlayWhite dot inlay
-
soundhole rosetteAbalone and Maple
-
tuning machineChrome Open Gear tuners (18:1 gear ratio)
-
nut materialBone
-
number of frets20
-
saddle materialCompensated Bone
-
bridge pinsIbanez Advantage™
-
stringsD'Addario® XTAPB1152
-
string gauge.011/.015/.022/.032/.042/.052
-
string space11mm
-
factory tuning1E,2B,3G,4D,5A,6E
-
pickupIbanez T-bar Undersaddle
-
preampIbanez Custom Electronics
-
output jack1/4" Endpin Jack
-
batteryCR2032 x2
-
-
NECK DIMENSIONS
-
-
Scale :607mm/23.9"
-
a : Width43mm at NUT
-
b : Width55mm at 14F
-
c : Thickness20mm at 1F
-
d : Thickness21mm at 7F
-
Radius :400mmR
-
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
-
a : Length18 3/8"
-
b : Width14 3/4"
-
c : Max Depth4 3/8"
-
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
This is a photo of the Ibanez T-bar under saddle pickup, end pin with preamp, and battery box. There is a button on the battery box which allows muting of the output signal or checking the remaining battery life.
-
OTHER FEATURES
-
Recommended Case
-
Features

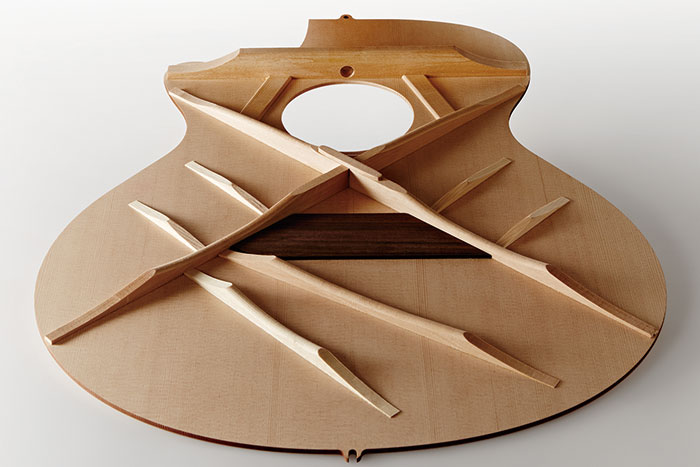

Scalloped X bracing
Scalloped X bracing on the top provides responsive and balanced tone.

Nyatoh neck
The Nyatoh neck provides a rich mid-low end.

Ovangkol fretboard
The Ovangkol fretboard provides greater playing comfort.

Okoume back and sides
The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Ovangkol bridge
The Ovangkol bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Ibanez T-bar Undersaddle pickup
The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.

Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
