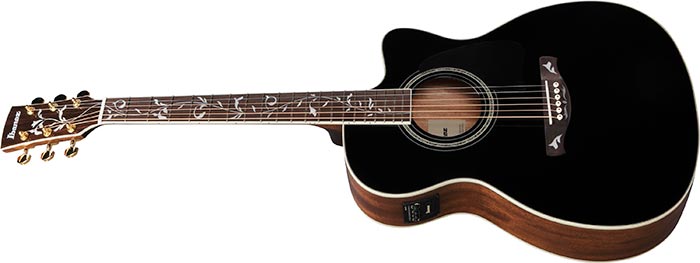

AC391CE

  • AC391CE-BKH
  • BKH : Black High Gloss top, Natural High Gloss back and sides
  • COLOR VARIATION：

COLOR VARIATION

SHARE：
ARTWOOD

SPEC

  • SPECS

    • body shape
      Cutaway Grand Concert body
    • top
      Solid Sitka Spruce top
    • back & sides
      Okoume back & Okoume sides
    • neck
      ACNyatoh neck
    • fretboard
      Rosewood fretboard
    • bridge
      Rosewood bridge
    • inlay
      Tree of Life inlay
    • soundhole rosette
      Abalone rosette

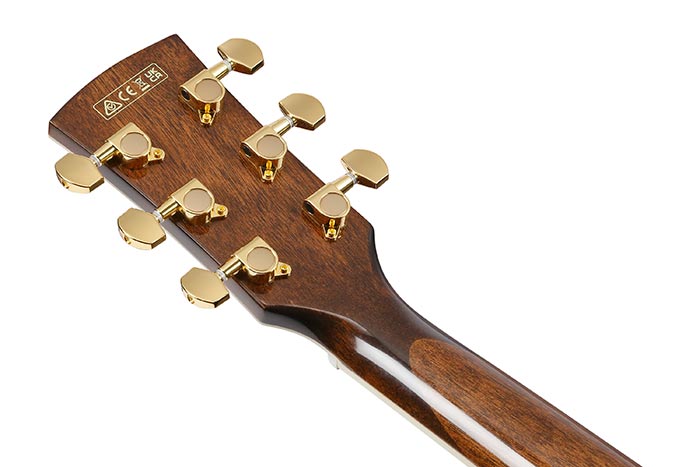

    • tuning machine
      Gold Die-cast tuners (18:1 gear ratio)
    • nut material
      Bone
    • number of frets
      20
    • saddle material
      Compensated Bone
    • bridge pins
      Ibanez Advantage™
    • strings
      D'Addario® XTAPB1253
    • string gauge
      .012/.016/.024/.032/.042/.053
    • string space
      11mm
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • pickup
      Ibanez T-bar Undersaddle
    • preamp
      Ibanez AEQ-TP2 preamp w/Onboard tuner
    • output jack
      Balanced XLR & 1/4" outputs
    • battery
      9V x1

  • NECK DIMENSIONS

    • Scale :
      634mm/25"
    • a : Width
      45mm at NUT
    • b : Width
      56mm at 14F
    • c : Thickness
      21mm at 1F
    • d : Thickness
      22mm at 7F
    • Radius :
      400mmR

    DESCRIPTION

    Guitar Neck Diagram
    a: Width of the neck at the nut
    b: Width of the neck at the first fret
    c： Thickness of the neck at the first fret
    d: Thickness of the neck at the twelfth fret
    Radius: Radius of the fingerboard

  • BODY DIMENSIONS

    • a : Length
      19 1/2"
    • b : Width
      15 1/8"
    • c : Max Depth
      4 1/8"

    DESCRIPTION

    Guitar Body Diagram
    A: Length of the body
    B: Maximum width of the body
    C: Maximum depth of the body

  • PREAMP

    AC391CE's preamp diagram

    DESCRIPTION

    The neck side of the preamp is the top of the control panel. There is one button switch and three knobs towards the top of the control panel. The button furthest left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.

  • OTHER FEATURES

    • Recommended Case
      AC100C AC100C
    • Tree of Life fingerboard inlay

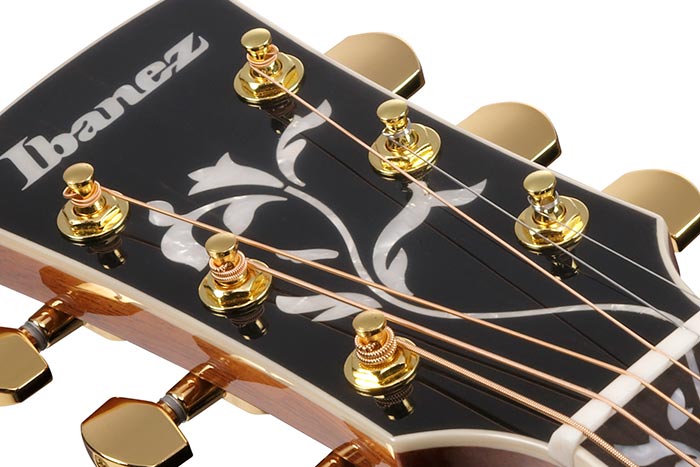

    • Tree of Life Headstock inlay
    • Tree of Life bridge inlay
    • Back Stripe inlay

Features

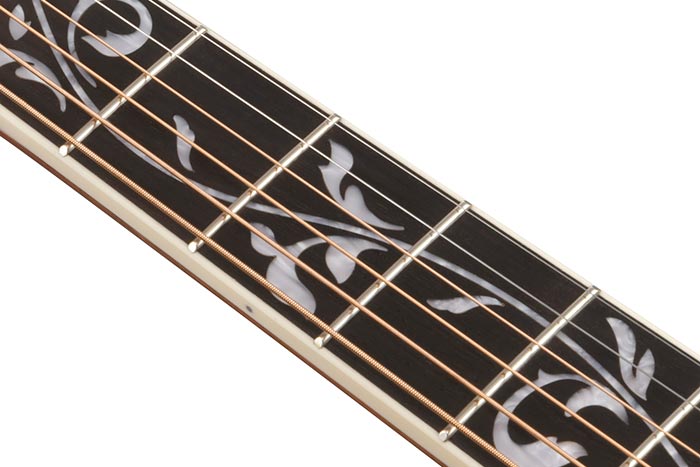

Tree of Life fingerboard inlay

Tree of Life Headstock inlay

Tree of Life bridge inlay

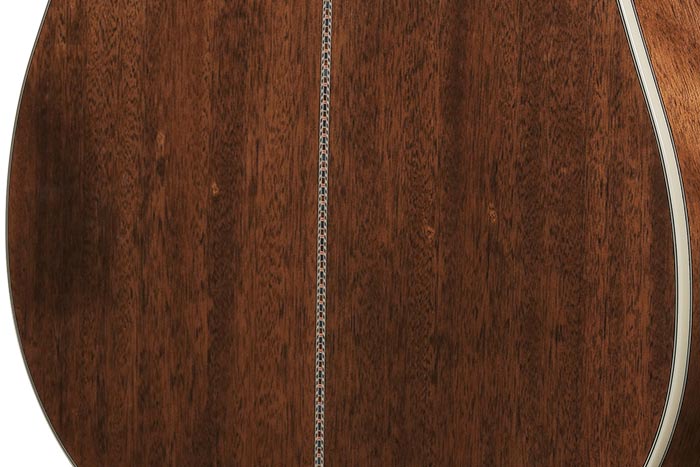

Back Stripe inlay

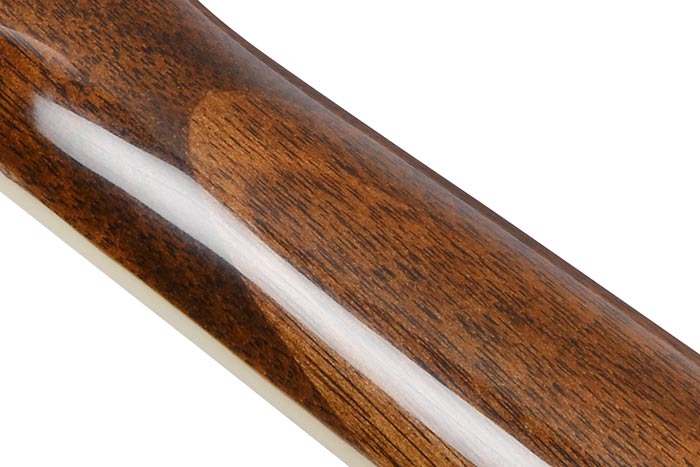

Nyatoh neck

The Nyatoh neck provides rich middle low end.

Rosewood fretboard

Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

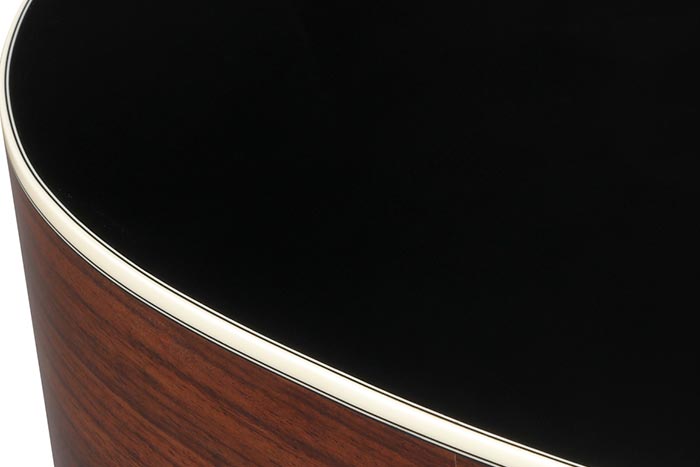

Solid Sitka Spruce top

Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

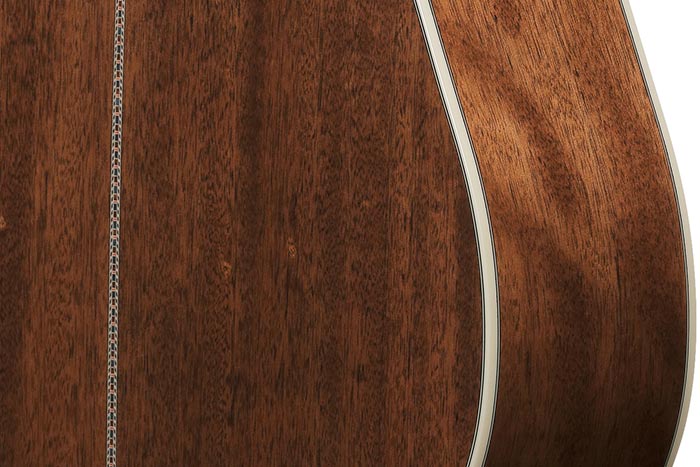

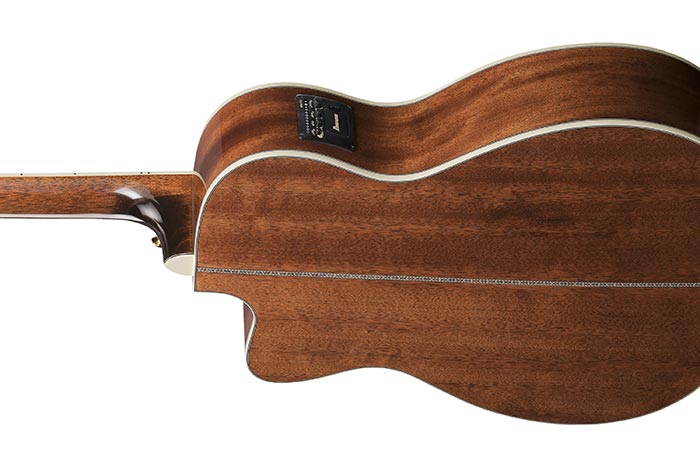

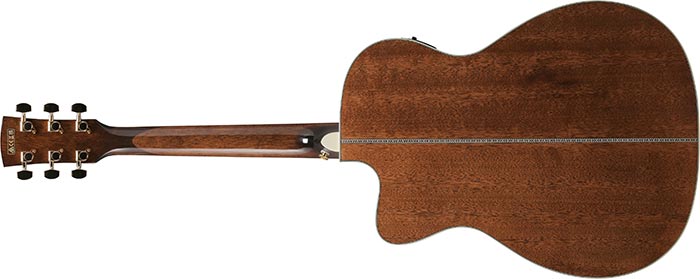

Okoume back and sides

The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

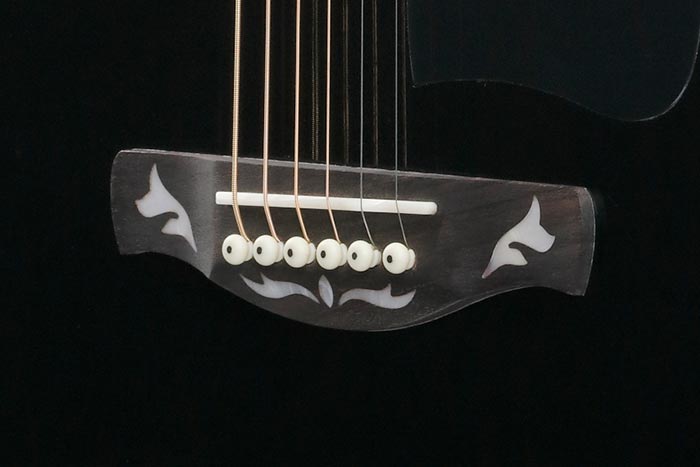

Rosewood bridge

The Rosewood bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Ibanez AEQ-TP2 preamp w/Onboard tuner

The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument’s upper bout.

Ibanez T-bar Undersaddle pickup

The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
