AAD77M1E

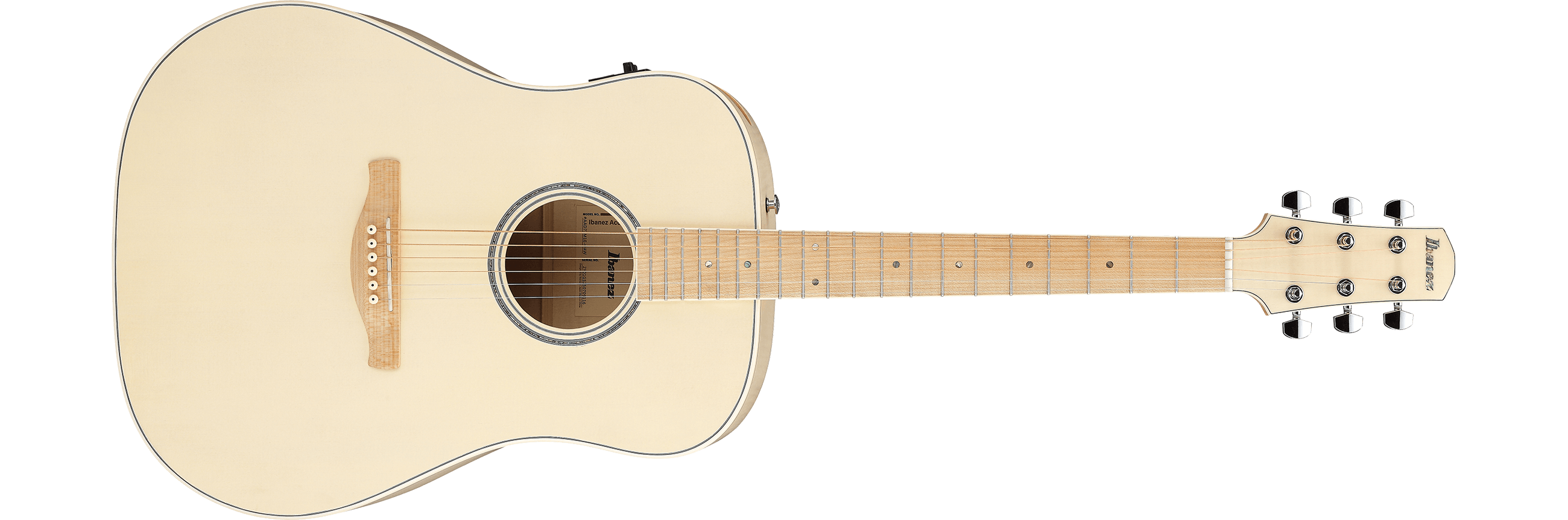

AAD77M1E-OAW
  • OAW : Open Pore Antique White
  • COLOR VARIATION：

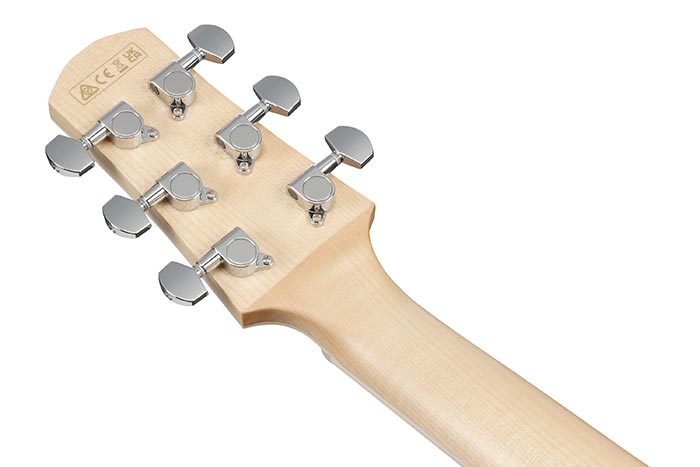

Back of the AAD77M1E-OAW's headstock

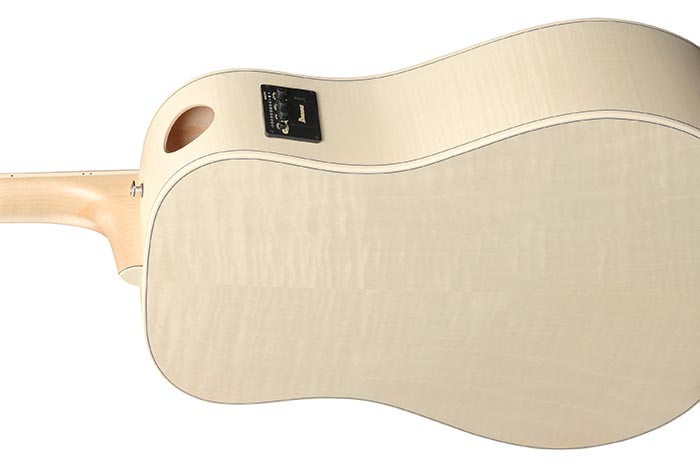

Back of the AAD77M1E-OAW's body
Entire top of the AAD77M1E-OAW

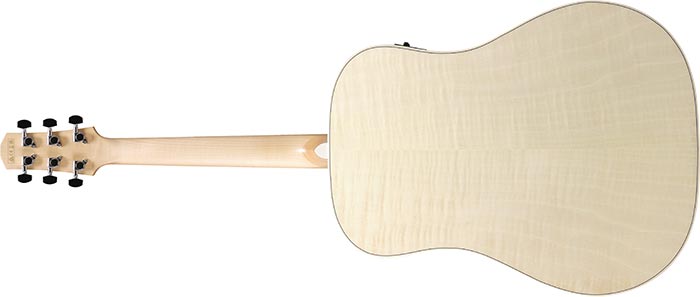

Entire back of the AAD77M1E-OAW
Advanced Acoustic

SPEC

  • SPECS

    • body shape
      Grand Dreadnought body
    • bracing
      X-M Bracing
    • top
      Solid Sitka Spruce top
    • back & sides
      Flamed Maple back & Flamed Maple sides
    • neck
      Low Oval GripOkoume neck
    • fretboard
      Maple fretboard
    • bridge
      Maple bridge
    • body binding
      Rounded body edge binding
    • inlay
      Abalone dot inlay
    • soundhole rosette
      Abalone rosette
    • tuning machine
      Chrome Die-cast tuners (18:1 gear ratio)
    • number of frets
      20
    • bridge pins
      Ibanez Advantage™
    • strings
      D'Addario® EXP16
    • string gauge
      .012/.016/.024/.032/.042/.053
    • string space
      11mm
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • pickup
      Ibanez T-bar Undersaddle
    • preamp
      Ibanez AEQ-TP2 preamp w/Onboard tuner
    • output jack
      Balanced XLR & 1/4" outputs
    • battery
      9V x1

  • NECK DIMENSIONS

      • Scale :
        650mm/25.6"
      • a : Width
        43mm at NUT
      • b : Width
        55mm at 14F
      • c : Thickness
        21mm at 1F
      • d : Thickness
        22mm at 7F
      • Radius :
        400mmR

    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        20 3/8"
      • b : Width
        16 1/4"
      • c : Max Depth
        5"

    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    AAD77M1E's preamp diagram

    DESCRIPTION

    The neck side of the preamp is the top of the control panel. There is one button switch and three knobs towards the top of the control panel. The button furthest left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.

  • OTHER FEATURES

    • Recommended Case
      MR600AC MR600AC
    • A.I.R.port
    • A.I.R.port cover included

Features

A.I.R.port

A.I.R.port

Through intensive research and development, we have designed the A.I.R.port with a unique internal structure that reflects sound waves and guides them to exit from a precisely positioned sound hole. As a result, players can monitor what they are playing more clearly, which enhances the overall playing experience.

Grand Dreadnought body

Grand Dreadnought body

Through a rigorous R&D process spanning several years, Ibanez has reimagined the Dreadnought from the ground up, pursuing the height of rich sound, robust low end, and rich tone. This brand new body shape is called the Grand Dreadnought. Proportionally, the Grand Dreadnought body is 5% larger than a standard dreadnought, allowing for more volume, richer tone, and more powerful low end response. It's also extremely comfortable to play thanks to the extensive consideration given to its ergonomics.

X-M Bracing

X-M Bracing

After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.

Low Oval Grip Okoume neck

Low Oval Grip Okoume neck

The Low Oval neck grip facilitates easy chord strumming.

Maple fretboard

Maple fretboard

The Maple fretboard provide crisp, bright highs and strong upper mids.

Solid Sitka Spruce top

Solid Sitka Spruce top

Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

Flamed Maple back and sides

Flamed Maple back and sides

Flamed Maple back and sides create an attractive visual profile and offer bright and tight tones.

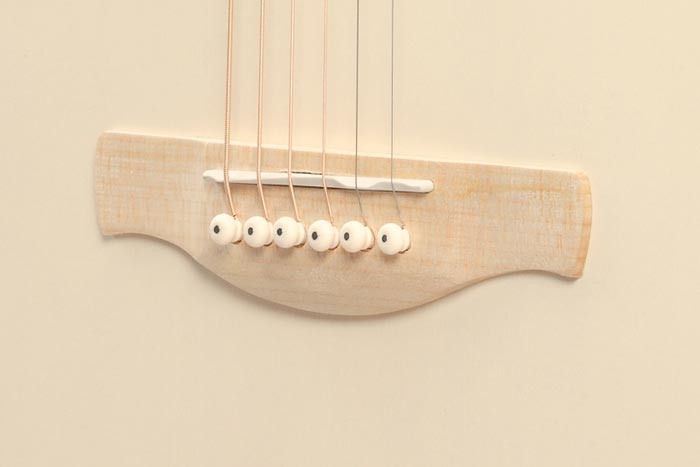

Maple bridge

Maple bridge

The Maple bridge transfers string vibration directly to the body, delivering a natural and warm tone.

Functional Tapered Headstock

Functional Tapered Headstock

The newly designed headstock shape is the result of thorough research and investigation. Its tapered shape provides lighter weight, as well as a straight string alignment which enhances tuning stability and reduces any neck twisting effect.

Ibanez AEQ-TP2 preamp w/Onboard tuner

Ibanez AEQ-TP2 preamp w/Onboard tuner

The Ibanez AEQ-TP2 preamp provides the extra punch of on-board EQ along with a convenient and easy-to-read digital tuner and 2-band EQ, located on the instrument’s upper bout.

Ibanez T-bar Undersaddle pickup

Ibanez T-bar Undersaddle pickup

The Ibanez T-bar Undersaddle pickup accurately translates that full sound to whatever amplification system you plug it into.

Ibanez Advantage bridge pins

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
