AAD50CE-LG
  • LG : Natural Low Gloss
  • COLOR VARIATION:
SHARE:
Advanced Acoustic

SPEC

  • SPECS

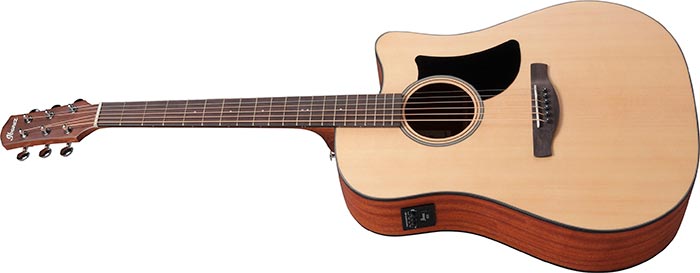

    • body shape

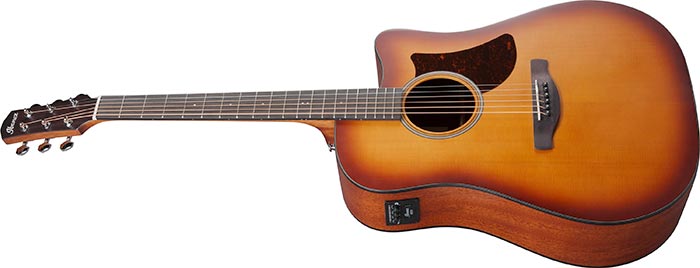

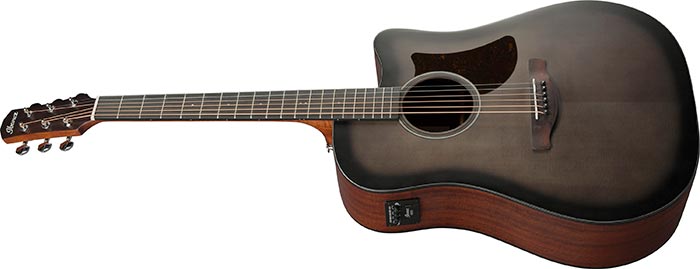

      Grand Dreadnought with Advanced Access Cutaway body
    • bracing
      X-M Bracing
    • top
      Solid Sitka Spruce top

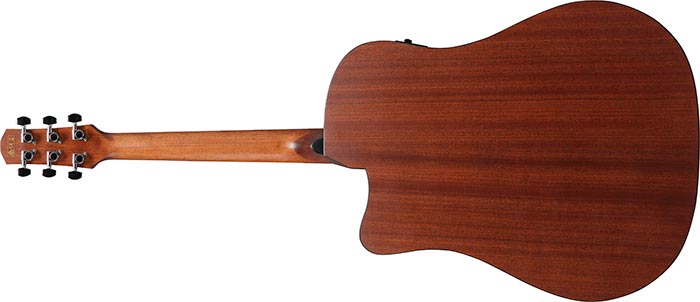

    • back & sides

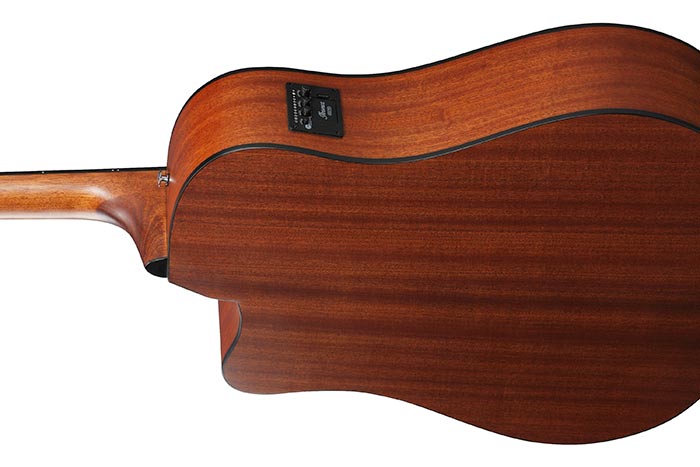

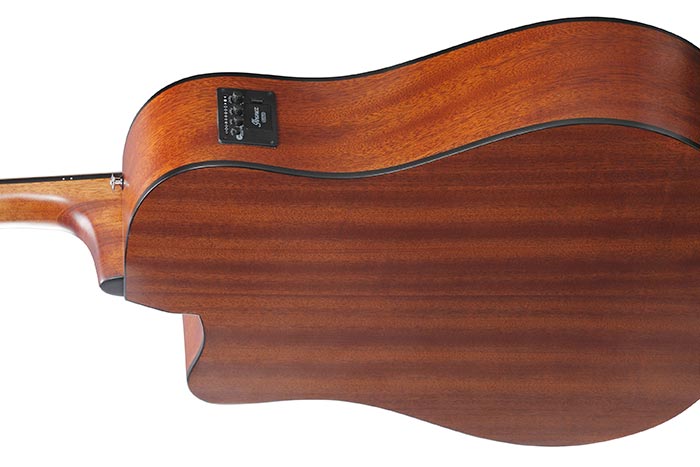

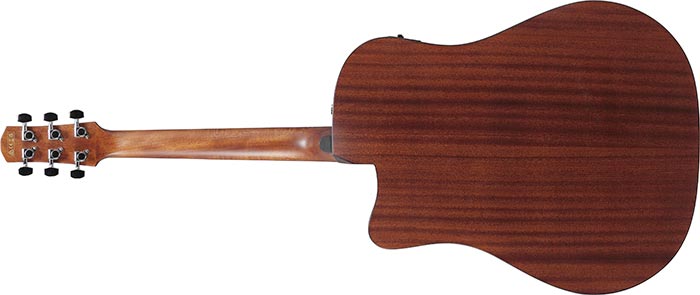

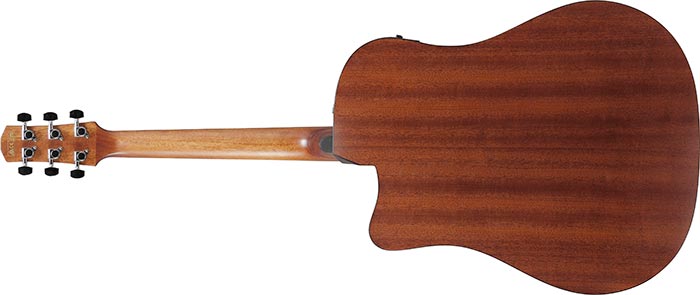

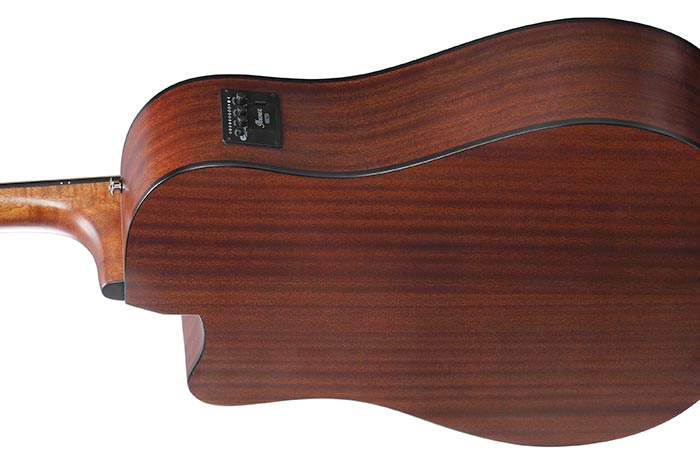

      Sapele back & Sapele sides
    • neck
      AADOkoume neck
    • fretboard
      Purpleheart fretboard
    • bridge
      Purpleheart bridge
    • inlay
      White dot inlay
    • soundhole rosette
      Black & White multi rosette

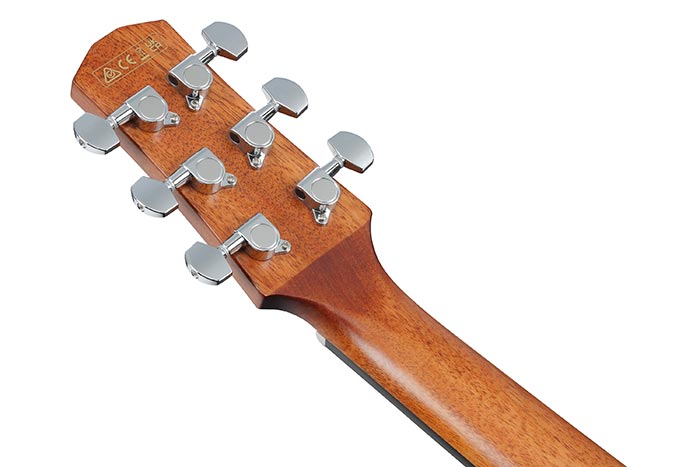

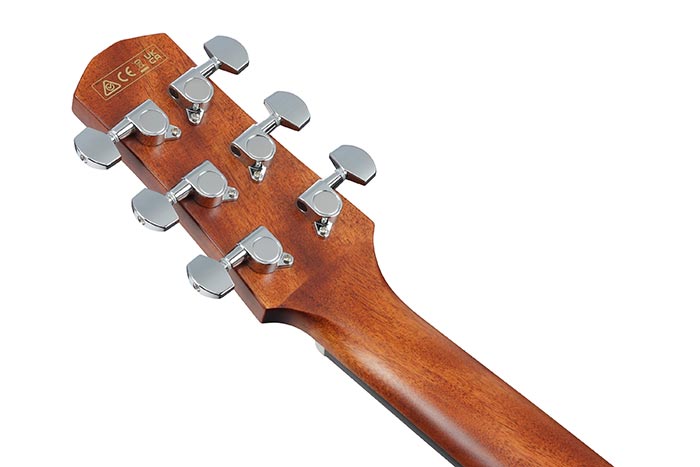

    • tuning machine

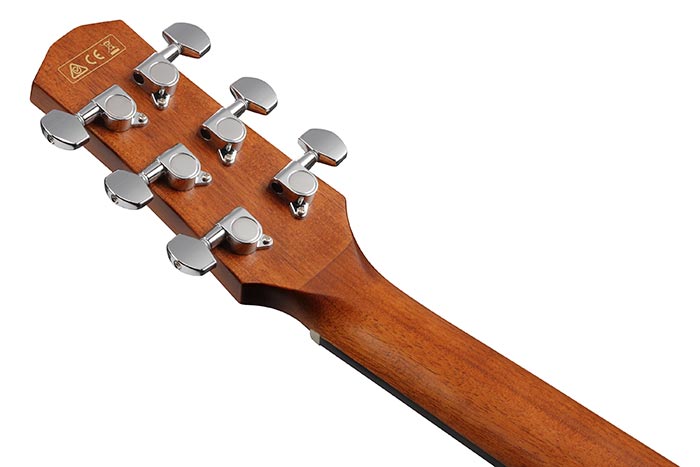

      Chrome Die-cast tuners (18:1 gear ratio)
    • number of frets
      20
    • bridge pins
      Ibanez Advantage™
    • strings
      D'Addario® EXP16
    • string gauge
      .012/.016/.024/.032/.042/.053
    • string space
      11mm
    • factory tuning
      1E,2B,3G,4D,5A,6E
    • pickup
      Ibanez T-bar Undersaddle
    • preamp
      Ibanez AEQ-TP2 preamp w/Onboard tuner
    • output jack
      Balanced XLR & 1/4" outputs
  • NECK DIMENSIONS

      • Scale :
        650mm
      • a : Width
        43mm at NUT
      • b : Width
        55mm at 14F
      • c : Thickness
        21mm at 1F
      • d : Thickness
        22mm at 7F
      • Radius :
        400mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the first fret
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the twelfth fret
      Radius: Radius of the fingerboard

  • BODY DIMENSIONS

      • a : Length
        20 3/8"
      • b : Width
        16 1/4"
      • c : Max Depth
        5 "
    • DESCRIPTION

      Guitar Body Diagram
      A: Length of the body
      B: Maximum width of the body
      C: Maximum depth of the body

  • PREAMP

    AAD50CE's preamp diagram

    DESCRIPTION

    The neck side of the preamp is the top of the control panel. There is one button switch and three knobs towards the top of the control panel. The button furthest left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
