SPEC

SPECS
- body shape

  Grand Dreadnought with Advanced Access Cutaway body
- bracing

  X-M Bracing
- top

  Solid Sitka Spruce top
- back & sides

  Okoume back & Okoume sides
- neck

  Low Oval Grip with Rounded Fretboard EdgeThermo Aged™ Nyatoh neck
- fretboard

  Macassar Ebony fretboard
- bridge

  Macassar Ebony scalloped bridge
- top board purfling

  Wooden purfling
- inlay

  Maple Dot inlay
- soundhole rosette

  Wooden rosette with Soundhole binding rosette
- tuning machine

  Chrome Die-cast tuners (18:1 gear ratio)
- nut material

  Bone
- number of frets

  20
- saddle material

  Compensated Bone saddle
- bridge pins

  Ibanez Advantage™
- strings

  D'Addario® XTAPB1253
- string gauge

  .012/.016/.024/.032/.042/.053
- string space

  11mm
- factory tuning

  1E,2B,3G,4D,5A,6E
- pickup

  Ibanez AP11 Magnetic & Contact
- preamp

  Ibanez Custom Electronics w/ Magnetic Pickup Volume and Contact Pickup Volume
- output jack

  Dual Outputs (Mono Out / Stereo Out)
NECK DIMENSIONS
- - Scale :

    651mm/25.6"
  - a : Width

    43mm at NUT
  - b : Width

    55mm at 14F
  - c : Thickness

    21mm at 1F
  - d : Thickness

    22mm at 7F
  - Radius :

    400mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
BODY DIMENSIONS
- - a : Length

    20 3/8"
  - b : Width

    16 1/4"
  - c : Max Depth

    5 "
- DESCRIPTION

  Guitar Body Diagram
  A: Length of the body
  B: Maximum width of the body
  C: Maximum depth of the body
PREAMP

DESCRIPTION

There knob closest to the player is the volume for the magnetic pickup. The knob futhest away from the player is the volume knob for the contact pickup.
OTHER FEATURES
- Recommended Case

  MR600AC
- Luminlay side dots

Features

Grand Dreadnought body

Through a rigorous R&D process spanning several years, Ibanez has reimagined the Dreadnought from the ground up, pursuing the height of rich sound, robust low end, and rich tone. This brand new body shape is called the Grand Dreadnought. Proportionally, the Grand Dreadnought body is 5% larger than a standard dreadnought, allowing for more volume, richer tone, and more powerful low end response. It's also extremely comfortable to play thanks to the extensive consideration given to its ergonomics.

X-M Bracing

After spending years of trial-and-error, Ibanez realized the out-of-the-box X-M Bracing to generate the ultimate sound standing out on the stage. The carefully designed scalloped X-bracing, the allocation of tone braces, and finger braces transmit the string vibration efficiently through the bridge to the body. The X-M Bracing creates the clear bottom and crispy treble sound with trimmed warm mid-range, yet provides a wide dynamic range and high response.

Advanced Access Cutaway

Its deep straight cutaway (from 18th fret) and shaved side enable amazing high fret access.

Low Oval Grip Thermo Aged™ Nyatoh neck with Rounded Fretboard Edge

The Low Oval neck grip is designed for easy chord strumming and the Rounded Fretboard Edges provides superior playability. Thermo Aged, a special drying process, makes the neck light and hard and provides stability and better resonance.

Functional Tapered Headstock

The newly designed headstock shape is the result of thorough research and investigation. Its tapered shape provides lighter weight, as well as a straight string alignment which enhances tuning stability and reduces any neck twisting effect.

Ibanez AP11 Magnetic pickup

The AP11 pickup is small, lightweight and positioned so it won't inhibit the natural vibrations of the top wood. The pickup generates a highly responsive sound with minimal feedback and delivers a lively response throughout the entire frequency range. The sound is transparent and reflects the guitar's natural acoustic tone while preserving presence and mid-range. The AP11 also works well with effects such as reverb, chorus and many others.

Macassar Ebony Scalloped bridge

The lightweight, scalloped bridge improves vibration efficiency for better resonance, as well as providing more flexibility in adjusting the action than usual bridge.

Contact pickup

It consists of three transducers facilitating organic individual note clarity and naturally reproduces percussive body tapping techniques. This pickup also adds an airy depth of tone and brightness to the amplified sound.

Solid Sitka Spruce top

Solid Sitka Spruce top provides an enormous frequency range that offers wave after wave of shimmering highs along with tight mids and a full-bodied low end.

Dual Outputs (Magnetic/Contact pickup outputs)

Plugged into the endpin jack only: Magnetic pickup + Contact pickup with mixed output
Plugged into both the endpin jack and the open jack: Endpin Jack = Magnetic pickup, Open Jack = Contact Pickup

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

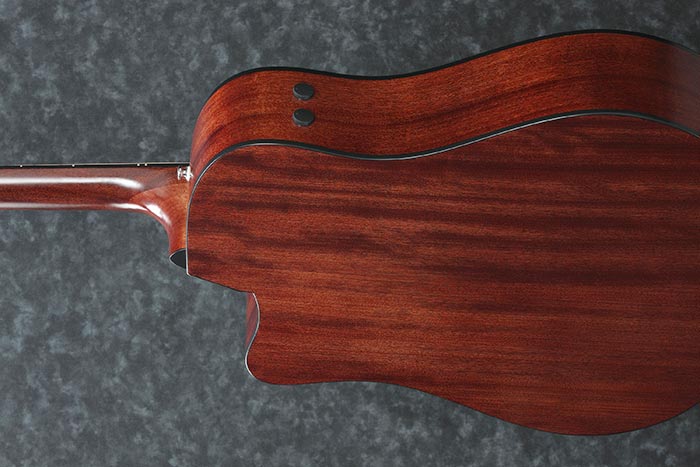

Okoume back and sides

The Okoume back and sides generate a woody, warm tone when the guitar is played softly or finger-picked and provide punchy high-mids with a clear projection when strummed.

Luminlay side dots

The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Ibanez Advantage™ bridge pins

These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
