540PIII

PHOTOS
SPEC
FEATURES
SUPPORT

DY : Desert Sun Yellow
PN : Purple Neon
BK : Black

COLOR VARIATION：

SPEC

SPECS

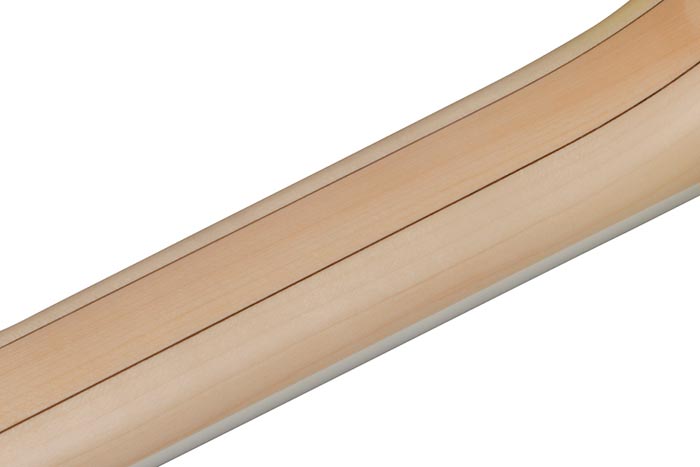

- neck type

  Super Wizard5pc Maple/Walnut neck

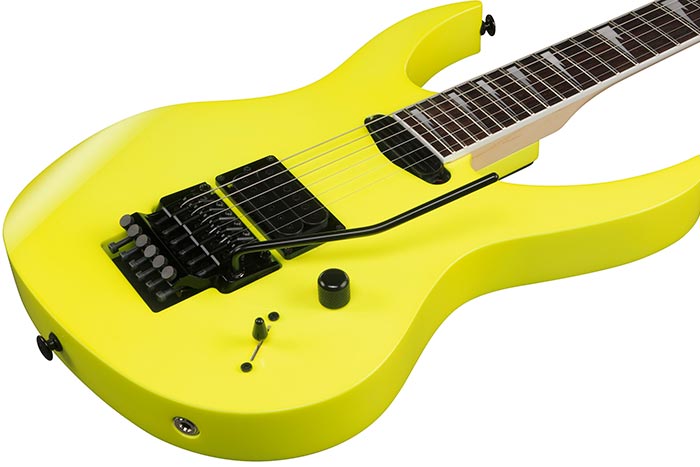

- top/back/body

  Basswood body

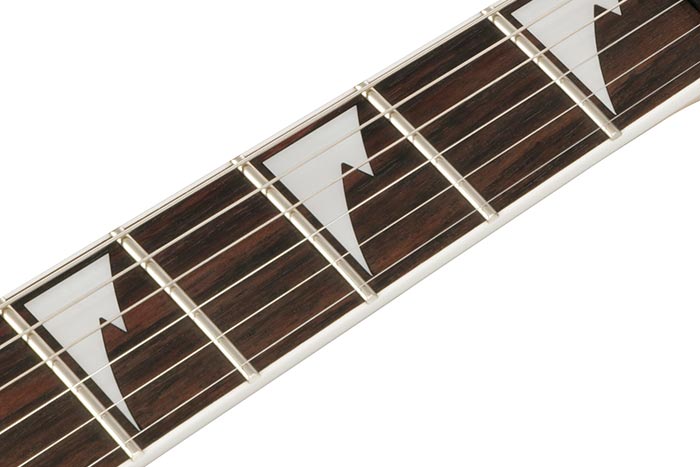

- fretboard

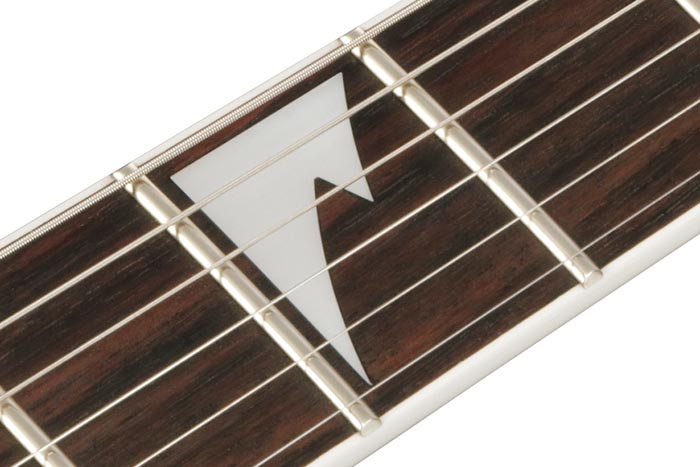

  Bound Rosewood fretboardWhite Sharktooth inlay
- fret

  Jumbo frets
- number of frets

  24

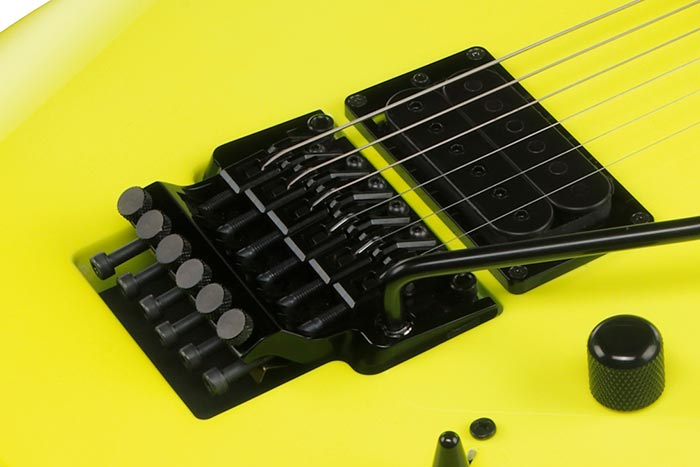

- bridge

  Edge bridge
- string space

  10.8mm

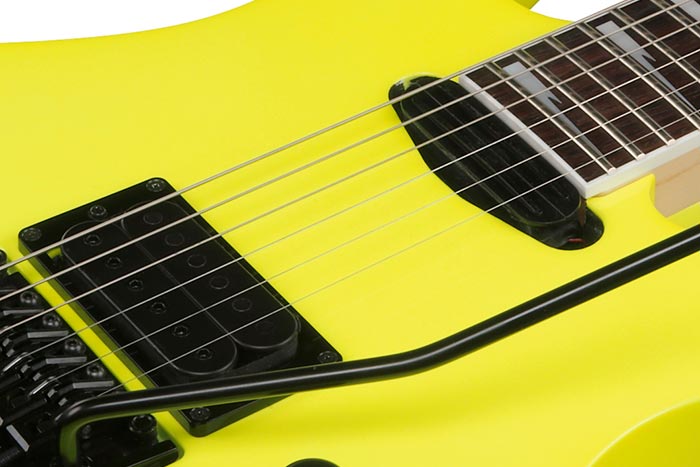

- neck pickup

  Infinity R (H) neck pickupPassive/Ceramic
- bridge pickup

  V8 (H) bridge pickupPassive/Alnico
- factory tuning

  1E,2B,3G,4D,5A,6E
- strings

  D'Addario® EXL120
- string gauge

  .009/.011/.016/.024/.032/.042
- nut

  Locking nut
- hardware color

  Black
NECK DIMENSIONS
- - Scale :

    648mm/25.5"
  - a : Width

    43mm at NUT
  - b : Width

    58mm at 24F
  - c : Thickness

    17mm at 1F
  - d : Thickness

    19mm at 12F
  - Radius :

    430mmR
- DESCRIPTION

  Guitar Neck Diagram
  a: Width of the neck at the nut
  b: Width of the neck at the fret position specified by the neck dimension
  c: Thickness of the neck at the first fret
  d: Thickness of the neck at the fret position specified by the neck dimension
  Radius: Radius of the fingerboard
SWITCHING SYSTEM

DESCRIPTION

When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and the neck side of the bridge pickups are selected. When the switch is in between center and bridge position, the neck side of the bridge pickup is selected. When the switch is in bridge position, the bridge pickup is selected.
CONTROLS

DESCRIPTION

With the guitar held in the playing position, there is avolume knob close to the edge of the body. The five-way pickup selector switch is located near the end of the body.
OTHER FEATURES
- Recommended Bag

  IGB540-BK
- Gotoh® machine heads
