XPT420DX
- RGC : Rose Gold Chameleon
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Wizard III5pc Maple/Walnut neckNeck-through
- top/back/body
- Okoume wing body
- fretboard
- Rosewood fretboardReversed Sharktooth inlay
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Edge-Zero II bridge
- string space
- 10.8mm
- neck pickup
- Quantum (H) neck pickupPassive/Ceramic
- bridge pickup
- Quantum (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Cosmo Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is active. When the switch is in the center position, both the neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there are a switch and two knobs along the lower edge of the body. From the end of the body towards the neck they are; the three-way pickup selector switch, tone knob, and volume knob.
-
OTHER FEATURES
- Gig bag included
Features

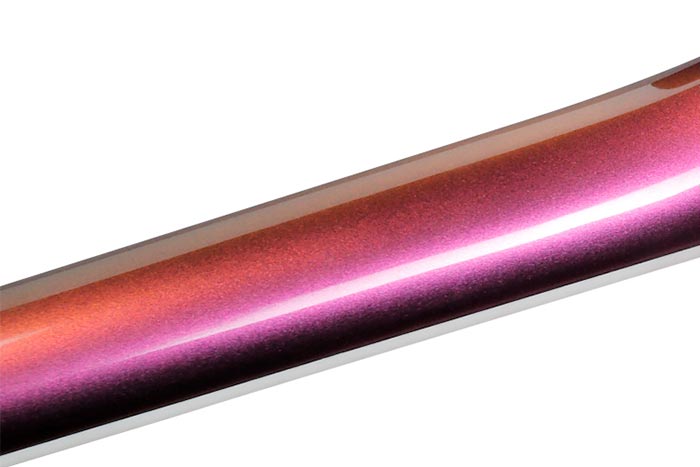

Wizard III 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

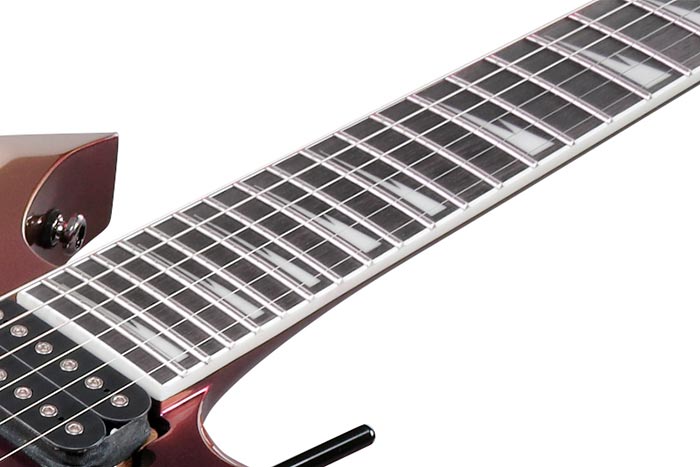

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

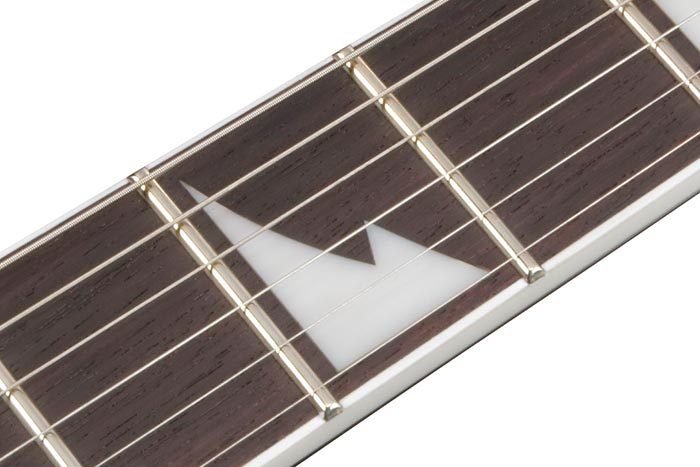

Jumbo frets
Jumbo frets contribute to smooth playability, especially for single-note playing.

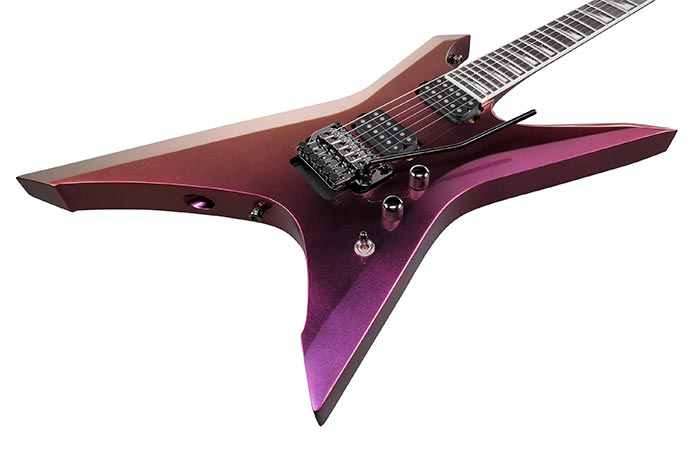

Okoume wing body
The Okoume wing body provides a bright and solid sound.

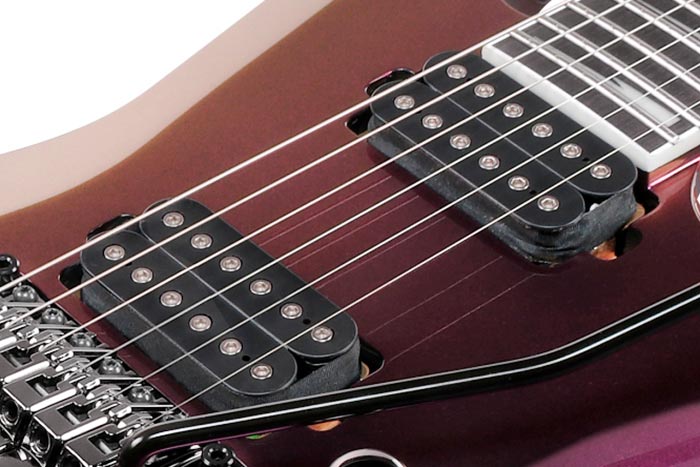

Quantum H-H pickups
The Quantum pickups have a quick low-end response to picking and are able to capture fast passages with precise note definition, while delivering a full-bodied mid-to-high range.

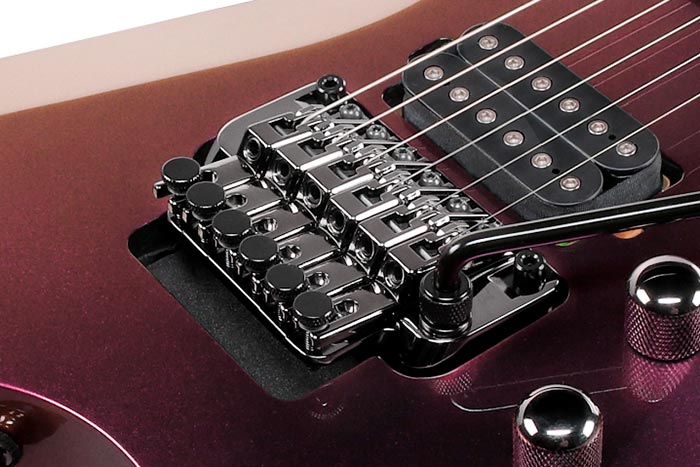

Edge-Zero II tremolo
The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning.
