TCY10PA

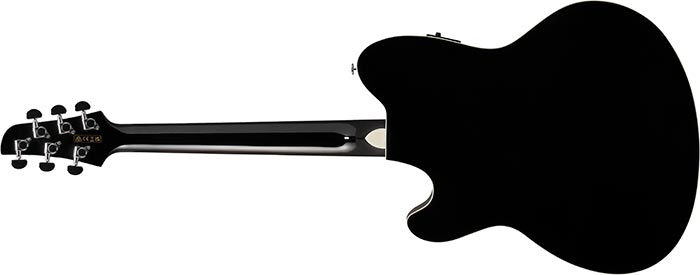

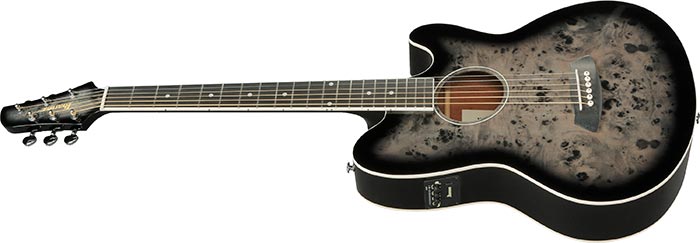

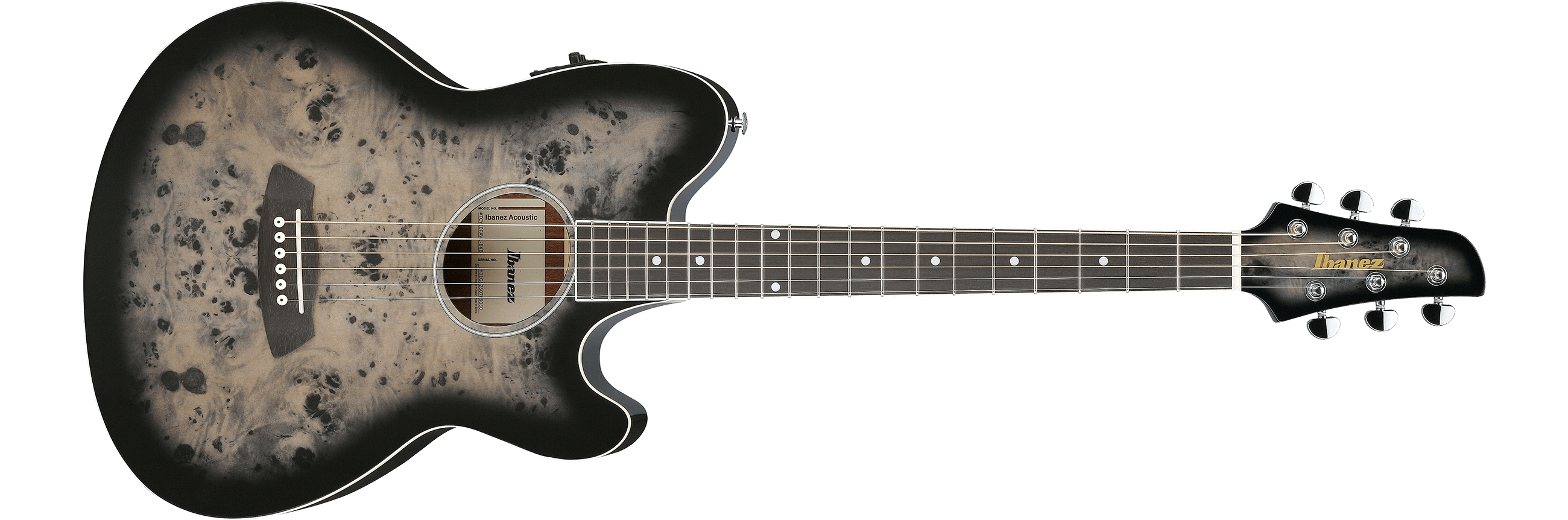

- BKB : Transparent Brown Black Burst High Gloss

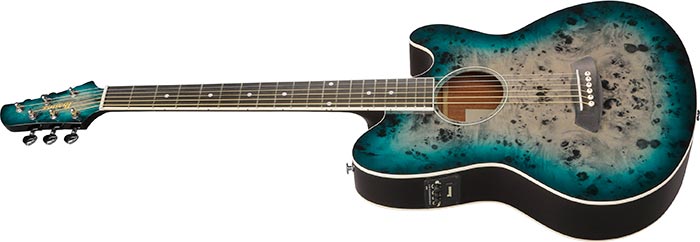

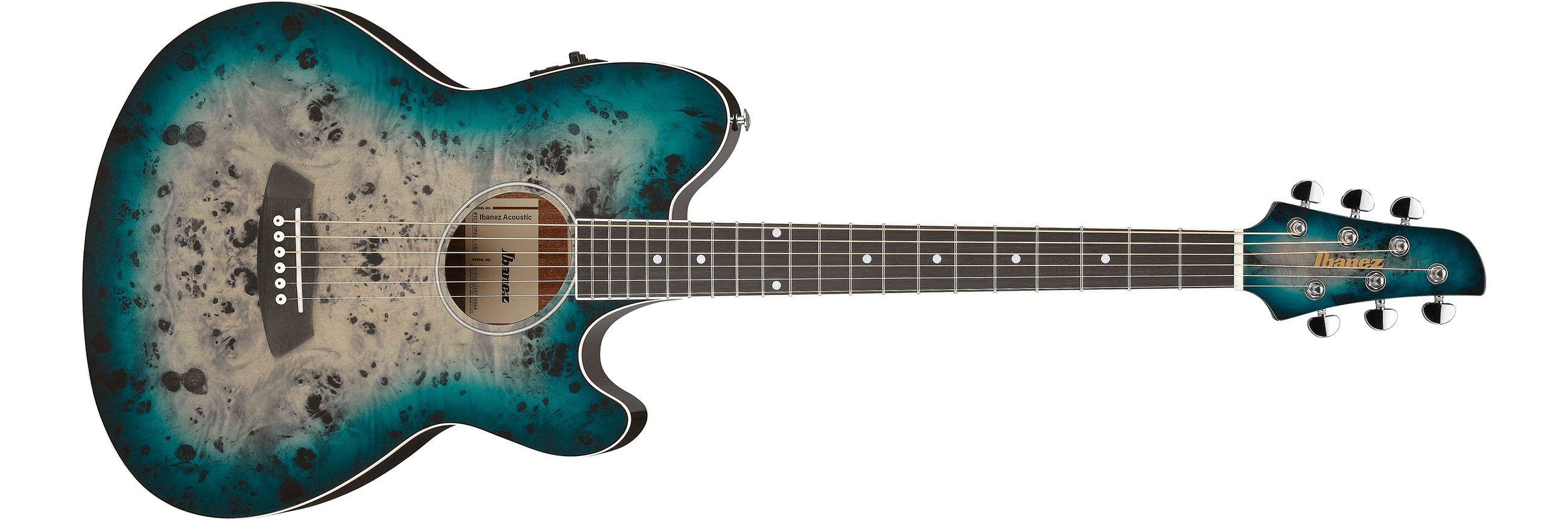

- CBS : Cosmic Blue Starburst High Gloss
- COLOR VARIATION：
SPEC
-
SPECS
- body shape
- Talman Double Cutaway body
- top
- Poplar Burl Art Grain (Basswood) top
- back & sides
- Sapele back & Sapele sides
- neck
- TCYOkoume neck
- fretboard
- Purpleheart fretboard
- bridge
- Purpleheart bridge
- inlay
- White dot inlay
- soundhole rosette
- Black & White multi

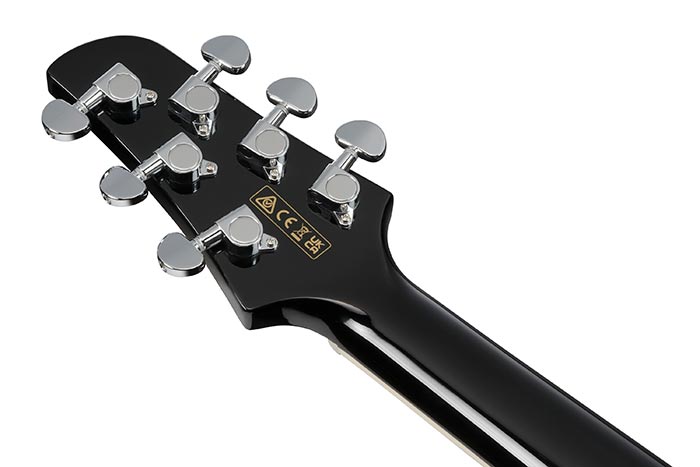

- tuning machine
- Chrome Die-cast tuners
- number of frets
- 20
- bridge pins
- Ibanez Advantage™
- string gauge
- .012/.016/.024/.032/.042/.053
- string space
- 11mm
- factory tuning
- 1E,2B,3G,4D,5A,6E
- pickup
- Ibanez Undersaddle
- preamp
- Ibanez AEQ-2T preamp w/Onboard tuner
- output jack
- 1/4" output
- battery
- 9V x1
-
NECK DIMENSIONS
-
- Scale :
- 650mm/25.6"
- a : Width
- 42mm at NUT
- b : Width
- 54mm at 14F
- c : Thickness
- 21.5mm at 1F
- d : Thickness
- 23.5mm at 7F
- Radius :
- 250mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 18 1/8"
- b : Width
- 14 3/8"
- c : Max Depth
- 3 5/8"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
PREAMP
DESCRIPTION
The neck side of the preamp is the top of the control panel. There is one button and three knobs along the top of the control panel. The button furthest to the left is the tuner on/off switch. To the right of that are the bass, treble, and volume knobs.
-
OTHER FEATURES
- Recommended Bag
-
ICB540-BK
Features
Ibanez Undersaddle pickup
The Ibanez Undersaddle Pickup accurately reproduces the acoustic nature of the bass.

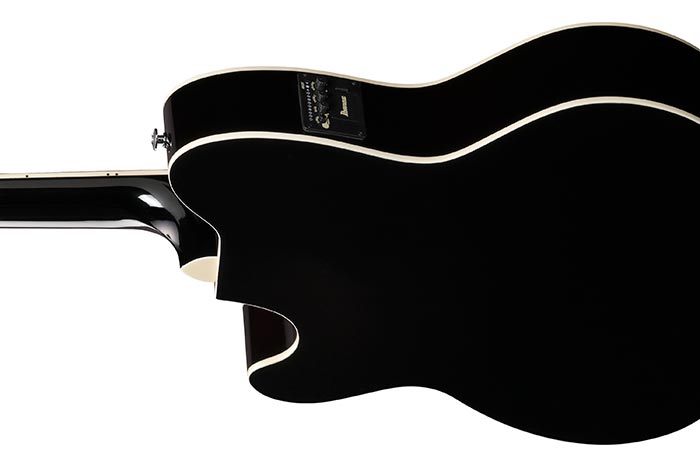

Sapele back and sides
Sapele back and sides offer a full-bodied and warm mid-range and a bright tone.
Okoume neck
The Okoume neck provides greater playing comfort.
Ibanez AEQ-2T preamp w/Onboard tuner
AEQ-2T preamp is specifically-designed to adjust the frequencies of a bass and Treble, and allows operation of the built-in tuner without the instrument being plugged in.
Poplar Burl Art Grain (Basswood) top
The Poplar Burl Art Grain (Basswood) top displaying a gorgeous wood grain.
Purpleheart fretboard
The Purpleheart fretboard emphasizes the beauty and the rich tonal character of this guitar.
Purpleheart bridge
The Purpleheart bridge transfers string vibration directly to the body, delivering a natural and warm tone.
Ibanez Advantage™ bridge pins
These pins really are an advantage over old-fashioned pins. Advantage™ pins are easier to take out and easier to put in than standard pins. A special bulb-shaped end makes the pin easy to grip and also prevents the pin from being pushed in too far. Best of all, with Advantage™ the pin and string stay put.
