TCB1006
SPEC
-
SPECS
- neck type
- TCB5pc Maple/PurpleheartSet-in neck
- top/back/body
- Quilted Maple topCurly Maple backCurly Maple body
- fretboard
- Bound Rosewood fretboardAcrylic block inlay
- fret
- Jumbo fretsPrestige fret edge treatment
- number of frets
- 24
- bridge
- Hipshot A style bridge
- string space
- 19mm
- neck pickup
- EMG 45HZ neck pickupPassive
- bridge pickup
- EMG 45HZ bridge pickupPassive
- equaliser
- Graph Tech Ghost® modular pickup system w/ Piezo/Mix/Magnetic pickup selector switch, MIDI program Up/Down switch, Mid/Dark EQ selector switch
- factory tuning
- 1C,2G,3D,4A,5E,6B
- strings
- La Bella Deep Talkin' Flatwound
- string gauge
- .029/.049/.069/.089/.109/.128
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 864mm/34"
- a : Width
- 58mm at NUT
- b : Width
- 98mm at 24F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 23mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimensiont
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION
With the bass held in the playing position, there are four knobs above the lower f-hole. Directionally, from the lower bout towards the neck the controls are; MIDI volume knob, piezo volume knob, magnetic tone knob, and magnetic volume knob. There are three switches along the lower edge of the body. From the lower bout towards the neck they are; mid/dark mode EQ selector switch, MIDI program up/down switch, and MIDI mix/magnetic & piezo pickup selector switch. MIDI program up/down switch and MIDI mix/magnetic & piezo pickup selector switch that is operational only when 13-pin output jack is connected. The pickup selector switch is near the upper bout of the bass. When the switch is in neck position, the neck pickup is selected. When the switch is in center position, both pickups are selected. When the switch is in bridge position, the bridge pickup is selected.
-
OTHER FEATURES
- Hardshell case included
- Hipshot Ultralite machine heads
- MIDI/Mix/Magnetic & Piezo selector switch, MIDI program Up/Down switch, Mid/Dark EQ selector switch
Features

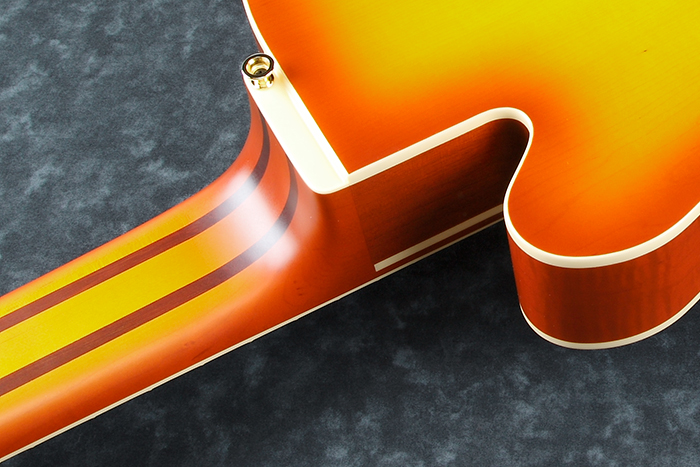

5pc Maple/Purpleheart neck
The 5pc Maple/Purpleheart neck provides tonal clarity and superior attack.

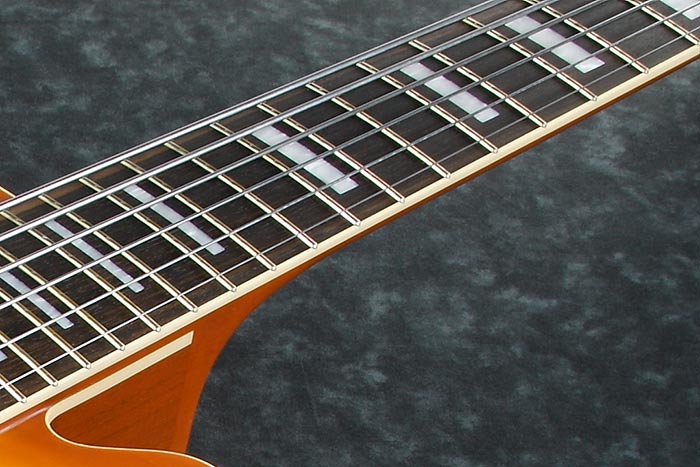

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

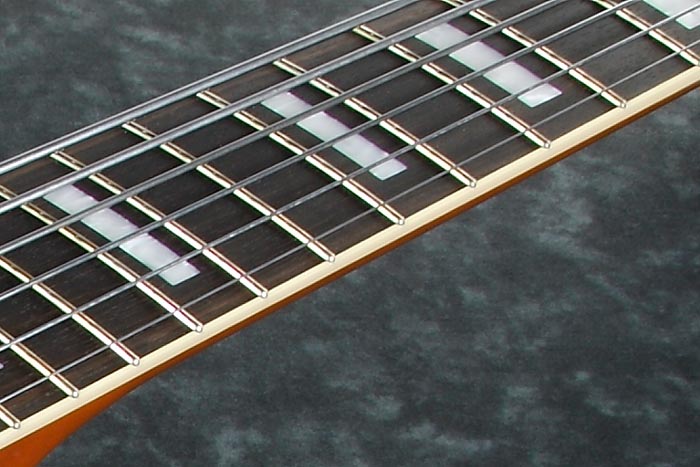

Jumbo frets with Prestige fret edge treatment
The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes. Prestige Fret Edge Treatment guarantees effortlessly fast playing.

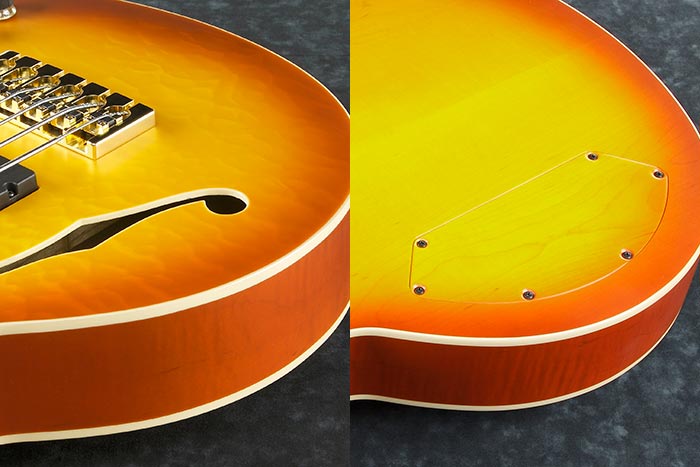

Quilted Maple top / Curly Maple back and sides
The beautiful combination of Quilted Maple top and Curly Maple back and sides flaunts some stunning looks.

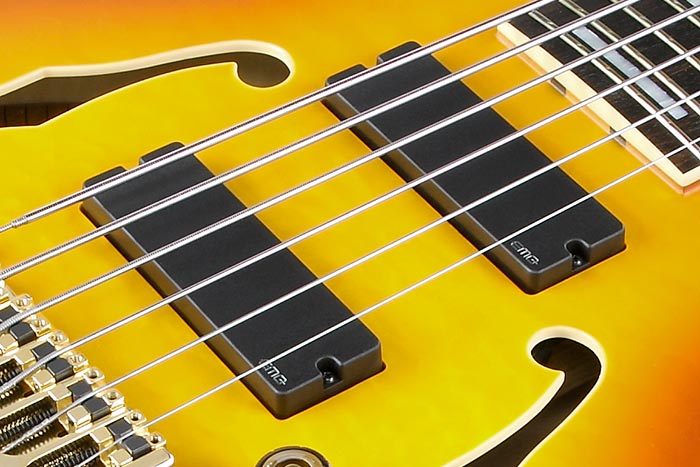

EMG 45HZ pickups
EMG 45HZ passive humbucking pickups feature low noise, plenty of output and warm tone.

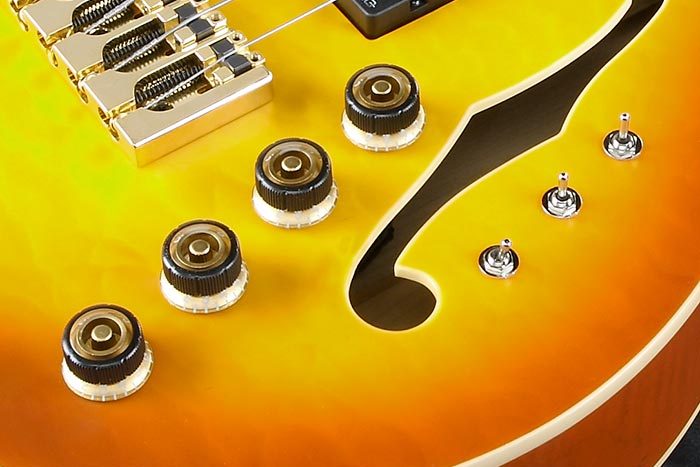

Graph Tech® Ghost modular pickup system
The Graph Tech Ghost® modular pickup system offers Piezo and MIDI output options to the player in addition to the magnetic sound. Players can quickly and smoothly control various tones by two knobs and three toggle switches; MIDI/Mix/Magnetic&Piezo, MIDI program up/down, and Mid/Dark (natural Ghost® acoustic sound/mid-boost) switches.

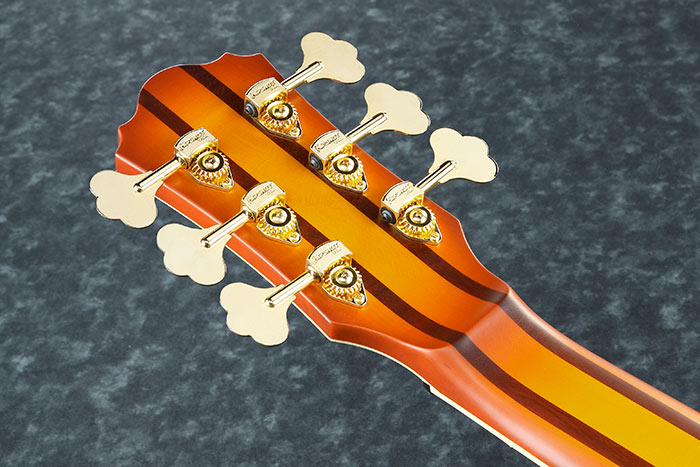

Hipshot® Ultralite machine heads
Hipshot Ultralite™ machine heads' open-back construction and solid machined aircraft grade aluminum housing help to provide the model with good balance of body and neck.

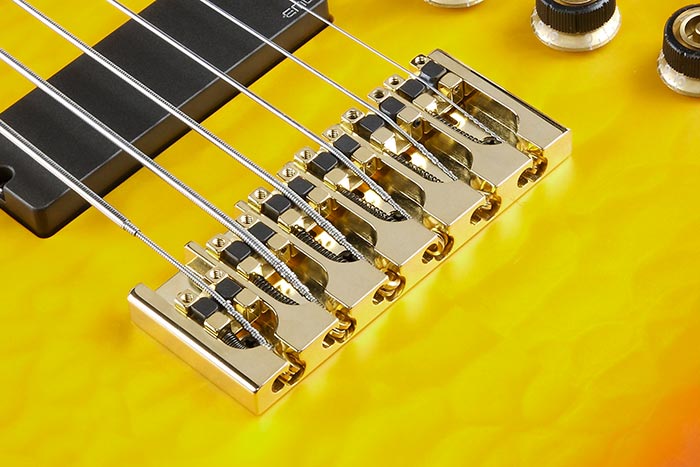

Hipshot A style bridge
The Hipshot® A Style bridge has 18mm string spacing, slightly wider than the standard 16.5mm SR-5 string spacing. The extra space offers players plenty of freedom for techniques like slap, without compromising player comfort.
MIDI/Mix/Magnetic & Piezo selector switch, MIDI program Up/Down switch, Mid/Dark EQ selector switch
Players can quickly and smoothly control various tones by using two knobs and three toggle switches: MIDI/Mix/Magnetic&Piezo, MIDI program up/down, and Mid/Dark (natural Ghost® acoustic sound/mid-boost) switches.
