SR3500
- BK : Black
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Atlas-4 HP5pc S-TECH WOOD Roasted Maple/Walnut neck
- top/back/body
- Alder body
- fretboard
- Rosewood fretboardMother of Pearl & Abalone oval inlay
- fret
- Medium fretsPrestige fret edge treatment
- number of frets
- 24
- bridge
- MR5S bridge
- string space
- 19mm
- neck pickup
- Nordstrand™ Big Single wood covered neck pickupPassive
- bridge pickup
- Nordstrand™ Big Single wood covered bridge pickupPassive
- equalizer
- Ibanez Sonitech Preamp 3-band EQ w/EQ bypass switch (push/pull), 3-way Mid frequency switch w/Hexa Mid system
- factory tuning
- 1G,2D,3A,4E
- strings
- D'Addario® EXL165
- string gauge
- .045/.065/.085/.105
- nut
- Graph Tech® BLACK TUSQ XL® nut
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 864mm/34"
- a : Width
- 38mm at NUT
- b : Width
- 62mm at 24F
- c : Thickness
- 19.5mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimensiont
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION

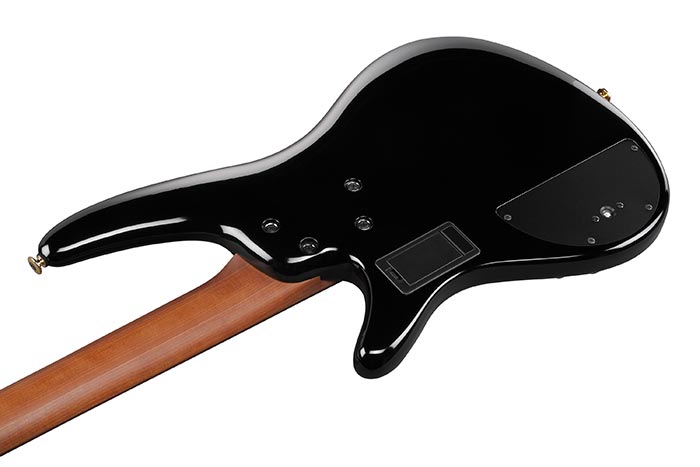

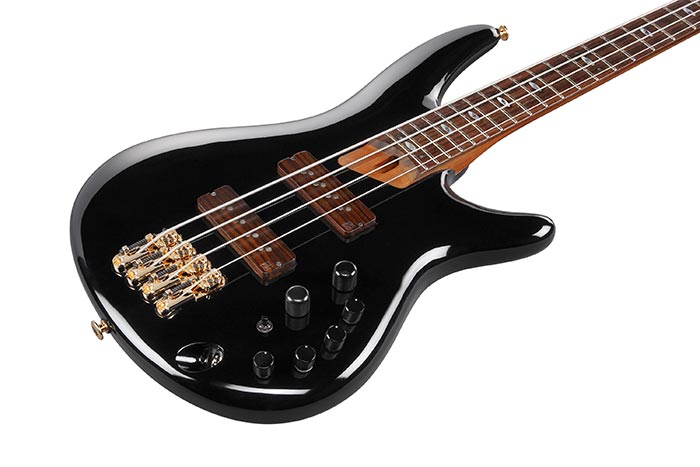

When holding the bass in the playing position, the Hexa Mid System switch is located on the control cavity cover on the back of the bass. Setting the switch to the up position activates the "H" or high bank, while the down position selects the "L" or low bank. The mini switch on the front of the body is a 3-way mid frequency selector. When the Hexa Mid System is set to the H bank, the mid boost peak is at 350Hz in the neck position, 600Hz in the center position, and 1kHz in the bridge position. In the L bank, the mid boost peak is at 250Hz in the neck position, 450Hz in the center position, and 850Hz in the bridge position. Two knobs are located near the mini-switch towards the neck. The knob closest to the mini toggle switch is the blend knob, and the knob towards the neck is the volume knob. Along the lower edge of the body, four knobs control the treble boost/cut, mid boost/cut, bass boost/cut, and master passive tone. A push/pull EQ bypass switch is incorporated into the master tone knob. When the master tone knob is pulled up, the EQ bypass is activated.
-
FREQUENCY RESPONSE
DESCRIPTION
The bass boost/cut frequency curve peaks at 50 Hz, with a variable width that narrows toward higher frequencies, reaching zero around 1000 Hz. The peak frequency's range is approximately ±18 dB. The treble boost/cut frequency curve forms a mountain-shaped peak around 10,000 Hz, with a variable range that becomes zero around 300 Hz. The peak frequency's range is approximately ±18 dB. The Hexa Mid System switch is located on the back of the bass, in the middle of the control cavity cover. In the up position (towards the center of the body), it is set to "H," and in the down position (towards the edge of the body), it is set to "L." When the Hexa Mid System is set to "H," the mid-boost/cut frequency curve creates a mountain-shaped peak at a specific frequency. The variable range is zero near 20 Hz and around 10,000 Hz. The peak frequency can be switched to 1000, 600, or 350 Hz, with a variable range of approximately ±13 dB. When the Hexa Mid System is set to "L," the mid-boost/cut frequency curve creates a similar mountain-shaped peak, but the variable range is zero near 20 Hz and around 10,000 Hz. The peak frequency can be switched to 850, 450, or 250 Hz, with a variable range of approximately ±13 dB.
-
OTHER FEATURES
Features
Atlas HP 5pc S-TECH WOOD Roasted Maple/Walnut neck
The Atlas HP 5pc S-TECH WOOD Roasted Maple/Walnut neck offers a balanced note attack and a rich sustain. The special S-TECH roasting process enhances the wood's stability, durability, water resistance, and tolerance to temperature fluctuations.
Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Medium frets with Prestige fret edge treatment
Medium sized frets enhance the accuracy of your notes. Prestige Fret Edge Treatment guarantees effortlessly fast playing.
Alder body
The Alder body delivers a well-balanced bright tone, enriched resonance and sustain.
Nordstrand™ Big Single pickups with wood cover
Nordstrand™ "Big Single" cram a meaty a single coil into a soapbar-style pickup, producing a full-bodied, powerful, aggressive tonal texture, while still retaining the clarity that's characteristic of single coil pickups. The pickups' beautiful wood cover imbues this bass guitar with an exotic appearance.
Ibanez Sonitech Preamp 3-band EQ w/EQ bypass switch (push/pull)
The Ibanez Sonitech Preamp boasts a meticulously tuned tonal character across the entire frequency spectrum. This circuit offers two selectable 3-band mid-range banks and a passive tone control for unparalleled versatility. Crafted in Japan with premium components, this preamp is designed to deliver maximum flexibility and ease of use.
The EQ bypass switch (push/pull) switches between EQ bypass (Pull) or EQ on (Push).
Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
MR5S bridge
The MR5S bridge has adjustable saddles for variable string spacing by +/ 1.5mm, answering every bassist's specific string spacing needs.
3-way Mid frequency switch w/Hexa Mid system
The Hexa Mid system offers players the flexibility to choose from two mid-range banks, each containing three distinct frequency points, for a total of six. Its exceptional versatility and user-friendly interface help players achieve their ideal bass sound.
Luminlay side dots
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
