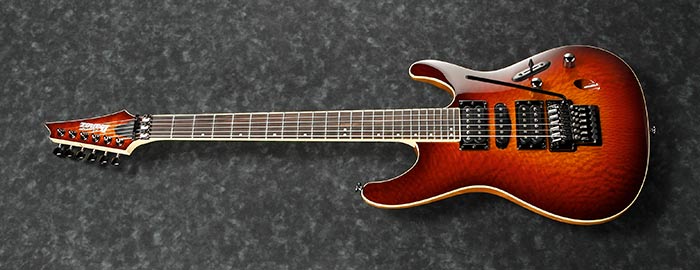

S6570SK-STB
  • STB : Sunset Burst
  • COLOR VARIATION:
S

SPEC

  • SPECS

    • neck type
    • Super Wizard HP 5pc Maple/Walnut neck w/KTS™ TITANIUM rods
    • top/back/body
    • Silky Oak topAfrican Mahogany body
    • fretboard
    • Bound Macassar Ebony fretboardOff-set white dot inlay
    • fret
    • Jumbo fretsPrestige fret edge treatment
    • number of frets
    • 24
    • bridge
    • Lo-Pro Edge tremolo bridge
    • string space
    • 10.8mm
    • neck pickup
    • DiMarzio® Air Norton™ (H) neck pickupPassive/Alnico
    • middle pickup
    • DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
    • bridge pickup
    • DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
    • factory tuning
    • 1E,2B,3G,4D,5A,6E
    • strings
    • D'Addario® EXL120
    • string gauge
    • .009/.011/.016/.024/.032/.042
    • hardware color
    • Cosmo black
  • NECK DIMENSIONS

      • Scale :
      • 648mm/25.5"
      • a : Width
      • 43mm at NUT
      • b : Width
      • 58mm at 24F
      • c : Thickness
      • 17mm at 1F
      • d : Thickness
      • 19mm at 12F
      • Radius :
      • 430mmR
    • DESCRIPTION

      Guitar Neck Diagram
      a: Width of the neck at the nut
      b: Width of the neck at the fret position specified by the neck dimension
      c: Thickness of the neck at the first fret
      d: Thickness of the neck at the fret position specified by the neck dimension
      Radius: Radius of the fingerboard

  • SWITCHING SYSTEM

    S6570SK's Switching system diagram

    DESCRIPTION

    When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.

  • CONTROLS

    S6570SK's control diagram

    DESCRIPTION

    With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.

  • OTHER FEATURES

    • Gotoh® machine heads
    • Hardshell case included

Features

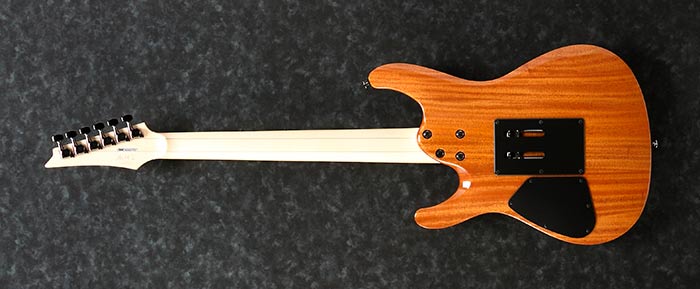

Super Wizard 5pc Maple/Walnut neck

Super Wizard 5pc Maple/Walnut neck

The Super Wizard 5pc Maple/Walnut neck provides extra-smooth playing.

Macassar Ebony fretboard

Macassar Ebony fretboard

Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

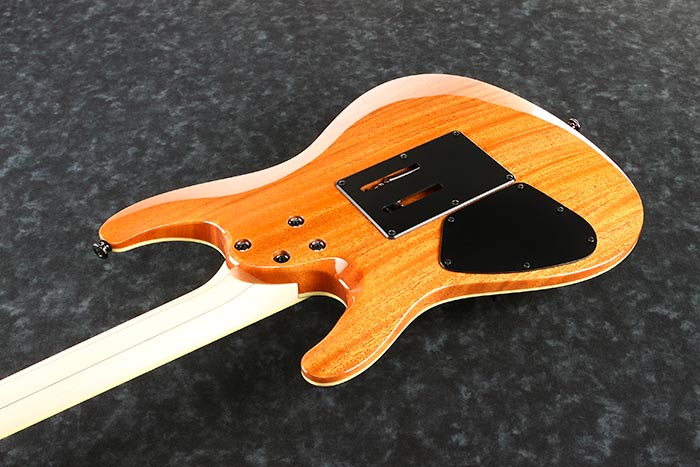

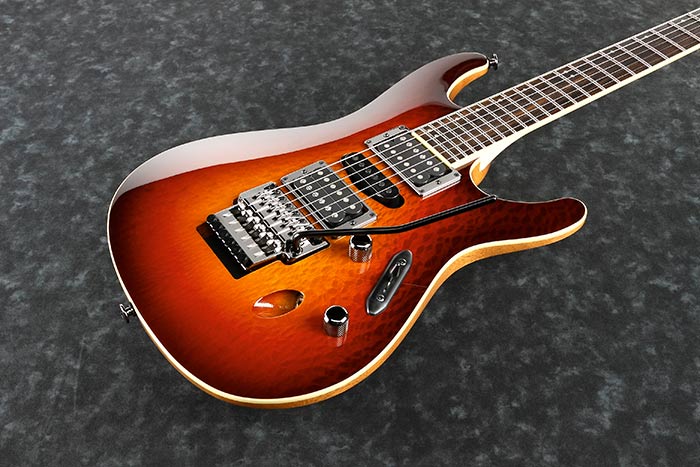

Silky Oak top/African Mahogany body

Silky Oak top/African Mahogany body

The S6570SK features a Silky Oak top which has an exotic wood grain.

DiMarzio pickups

DiMarzio® pickups

The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.

Lo-Pro Edge tremolo bridge

Lo-Pro Edge tremolo bridge

The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.

Gotoh® machine heads

Gotoh® machine heads

Gotoh® machine heads provide super precision, smooth feel, and minimal back lush.

Hardshell case included

Hardshell case included
