S1070PBZ

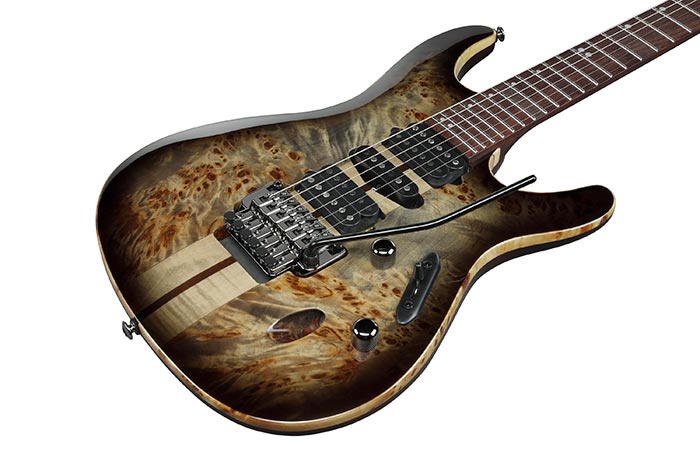

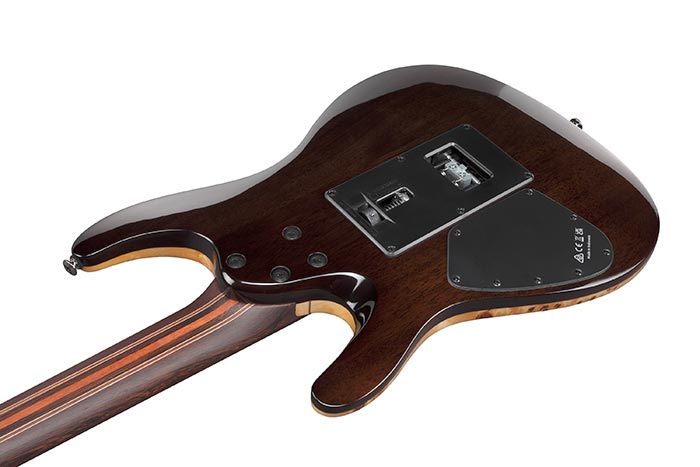

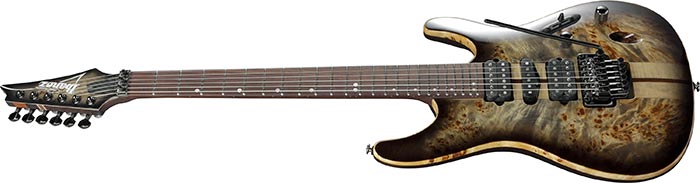

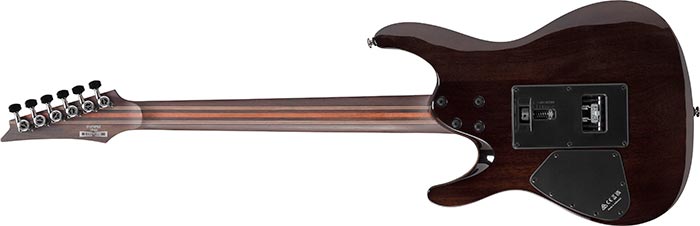

- CKB : Charcoal Black Burst

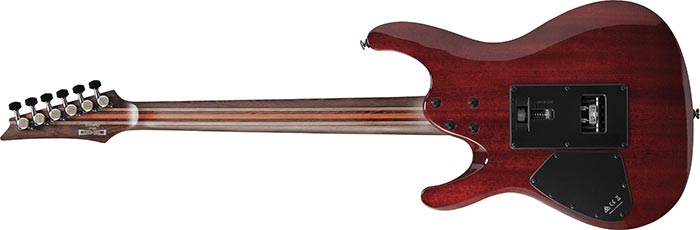

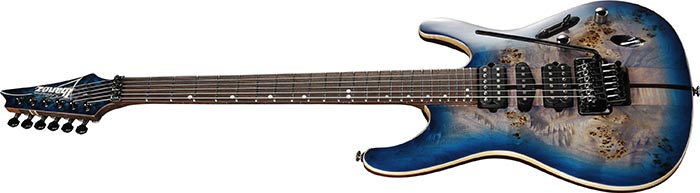

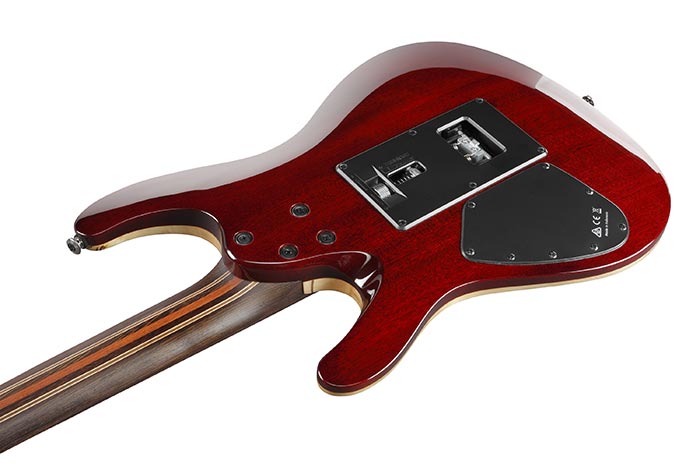

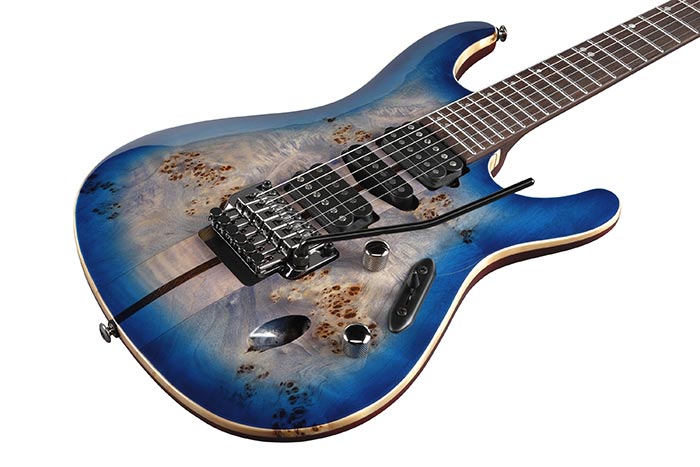

- CLB : Cerulean Blue Burst
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Wizard11pc Panga Panga/Maple/Walnut/Bubinga neck
- top/back/body
- Poplar Burl/Walnut/Curly Maple/Panga Panga (16.5mm) topAfrican Mahogany body
- fretboard
- Rosewood fretboardMother of Pearl off-set dot inlay
- fret
- Jumbo Stainless Steel fretsPremium fret edge treatment
- number of frets
- 24
- bridge
- Edge-Zero II w/ZPS3Fe bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® Air Norton™ (H) neck pickupPassive/Alnico
- middle pickup
- DiMarzio® True Velvet™ (S) middle pickupPassive/Alnico
- bridge pickup
- DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Cosmo Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 18mm at 1F
- d : Thickness
- 20mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck humbucker is selected. When the switch is between neck and center position, the bridge side of the neck humbucker and the center pickup are selected. When the switch is in center position, the center pickup is selected. When the switch is between the center and bridge position, center pickup and the neck side of the bridge humbucker are selected. When the switch is in bridge position, the bridge humbucker is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
- Recommended Case
-
MR500C
- Gig bag included
- Gotoh® MG-T locking machine heads
- Luminescent side dot inlay
Features
DiMarzio® Air Norton™ / True Velvet™ / The Tone Zone® pickups
The DiMarzio® Air Norton™, True Velvet™ and Tone Zone® pickups offer depth, warmth and rich dynamics when combined with the 5-way pickup switch.
Wizard 11pc Panga Panga/Maple/Walnut/Bubinga neck
The Wizard 11pc neck is made of Panga Panga, Maple and Walnut which contributes to the neck’s extreme rigidity and massive sustain.
Poplar Burl/Walnut/Curly Maple/Panga Panga top / African Mahogany body
The Poplar Burl/Walnut/Curly Maple/Panga Panga top flaunts a gorgeous wood grain. African Mahogany used as body wood delivers a rich mid-low end.
Premium Fret Edge Treatment
Premium Fret Edge Treatment offer super smooth,comfortable performance.
Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.
Luminescent side dot inlays
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
Edge-Zero II tremolo bridge w/ZPS3Fe
The Edge Zero II bridge design features a lower profile tremolo for playing comfort and stud lock function for stable tuning. In addtion, the zero point system provides much greater tuning stability.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
