RGRTBB21 (Baritone)
- BKF : Black Flat
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Wizard III Baritone5pc Maple/Walnutneck-through
- top/back/body
- Nyatoh wing body
- fretboard
- Ebony fretboard
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Mono-rail bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® D Activator™ (H) neck pickupPassive/Ceramic
- bridge pickup
- DiMarzio® D Activator™ (H) bridge pickupPassive/Ceramic
- factory tuning
- 1B,2F#,3D,4A,5E,6B
- strings
- D'Addario® EXL157
- string gauge
- .014/.018/.026/.044/.056/.068
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 712mm/28"
- a : Width
- 45mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 23mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the three-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
Features

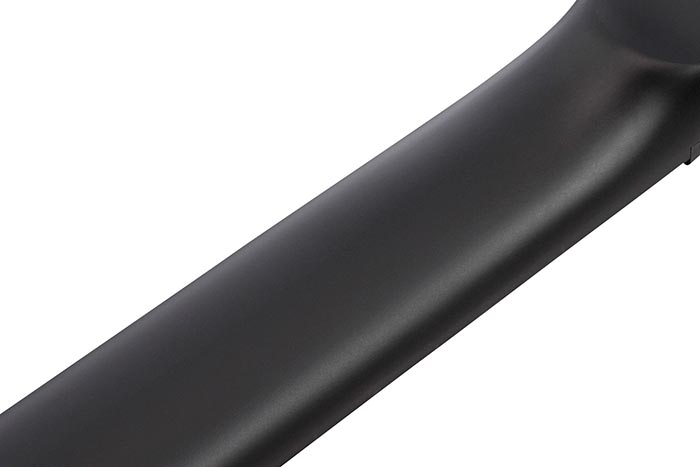

Wizard III Baritone 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability and features a two-octave 24-fret fretboard for a wide tonal range.

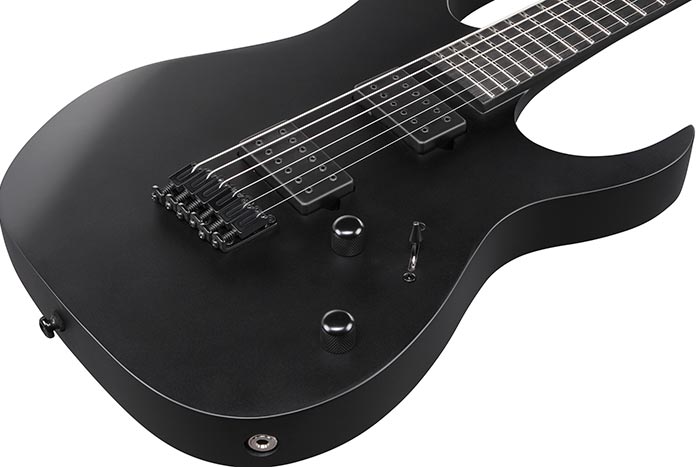

Nyatoh wing body
Nyatoh used as the body wood provides a rich mid-low end.

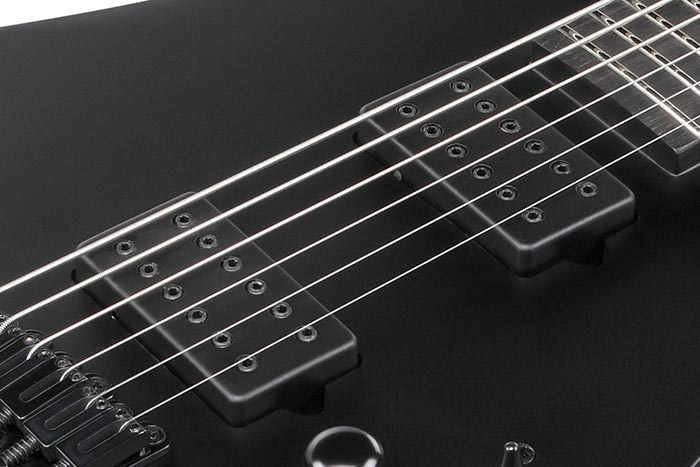

DiMarzio® D Activator™ pickups
DiMarzio® D Activator™ pickups have a powerful, clean, and open sound with excellent harmonic overtones and very tight low-end response.

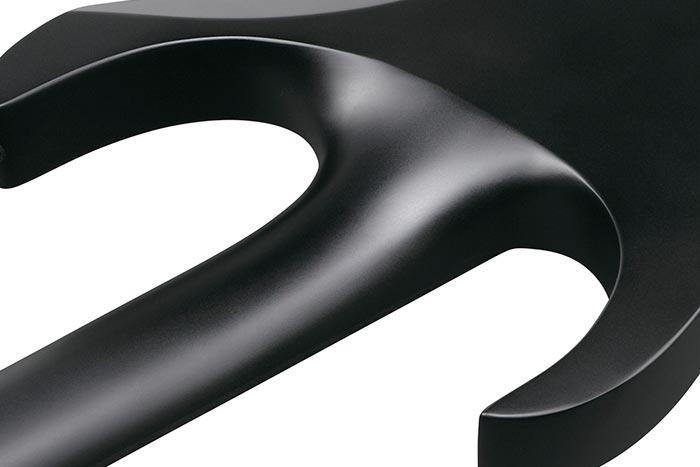

Neck-through construction
The neck-through construction contributes to massive sustain and smooth access to high fretboard positions.

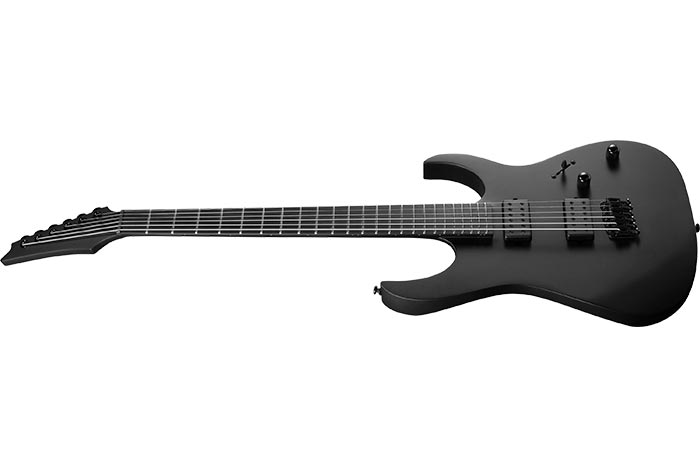

28 inch scale
Mono-rail bridge
Designed for both stability and sustain, the innovative Ibanez Mono-Rail bridge minimizes cross-talk between strings
Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.
Luminescent side dot inlays
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
