RGIXL7
- BKF : Black Flat
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Nitro Wizard-7 XL3pc Maple/Bubinga neck
- top/back/body
- Okoume body
- fretboard
- Ebony fretboard
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Gibraltar Standard III-7 bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® Fusion Edge 7 (H) neck pickupPassive/Ceramic
- bridge pickup
- DiMarzio® Fusion Edge 7 (H) bridge pickupPassive/Ceramic
- factory tuning
- 1D,2A,3F,4C,5G,6D,7A
- strings
- D'Addario® EXL110-7
- string gauge
- .010/.013/.017/.026/.036/.046/.059
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 686mm/27"
- a : Width
- 48mm at NUT
- b : Width
- 68mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.
-
CONTROLS
DESCRIPTION

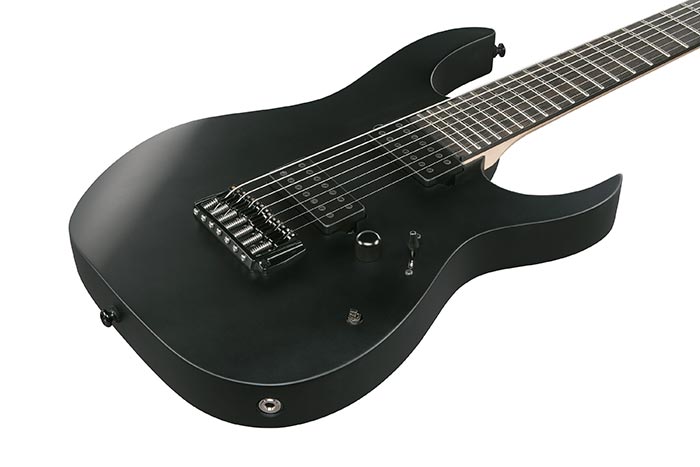

With the guitar held in the playing position, there are two switches along the lower edge of the guitar. The switch closest to the direction of the neck is a three-way pickup selector switch, the other switch, closer to the input jack is a coil tap switch. When the coil tap switch is in neck position, the coil tap is on, and when the switch is in bridge position, the coil tap is off. The knob right above the three-way pickup selector switch is the volume knob.
-
OTHER FEATURES
Features
Nitro Wizard 3pc Maple/Bubinga neck
The Legendary Super-thin, ultra-playable 3pc Nitro Wizard neck was made with Maple/Bubinga for road-tested durability.
Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.
Jumbo frets
Jumbo frets contribute to smooth playability, especially for single-note playing.
Okoume body
The Okoume body provides a bright and solid sound.
27 inch scale
Gibraltar Standard III bridge
The Gibraltar Standard III bridge, featuring a redesigned baseplate and saddles, offers enhanced playing comfort while ensuring optimal string vibration transfer.
Luminescent side dot inlays
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
Coil-tap switch
The coil tap switch adds sound and tonal variations for both pickups.
Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
