RGIB21
SPEC
-
SPECS
- neck type
- Nitro Baritone3pc Maple/Bubinga neck
- top/back/body
- Nyatoh body
- fretboard
- Rosewood fretboardOff-set white dot inlay
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Gibraltar Standard III bridge
- string space
- 10.8mm
- neck pickup
- EMG 60 (H) neck pickupActive/Ceramic
- bridge pickup
- EMG 81 (H) bridge pickupActive/Ceramic
- factory tuning
- 1B,2F#,3D,4A,5E,6B
- strings
- D'Addario® EXL157
- string gauge
- .014/.018/.026/.044/.056/.068
- hardware color
- Cosmo Black
-
NECK DIMENSIONS
-
- Scale :
- 712mm/28"
- a : Width
- 45mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 23mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
When holding the guitar in playing position, there is a three-way pickup selector switch near the knee cutout of the guitar. The knob right above the pickup selector switch is the volume knob.
-
OTHER FEATURES
Features

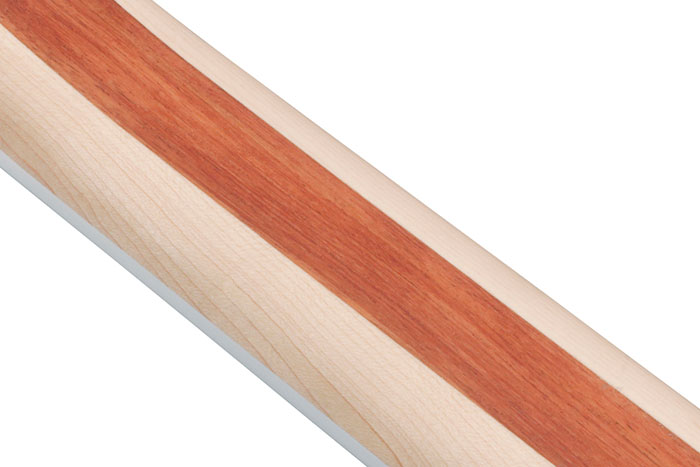

Nitro Baritone 3pc Maple/Bubinga neck
Legendary Super-thin, ultra-playable neck, made with Maple/Bubinga for road-tested durability.

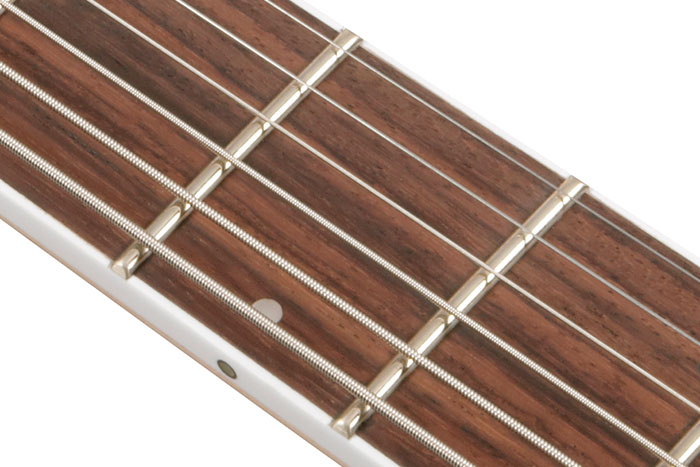

Jumbo frets
Jumbo frets contribute to smooth playability, especially for single-note playing.

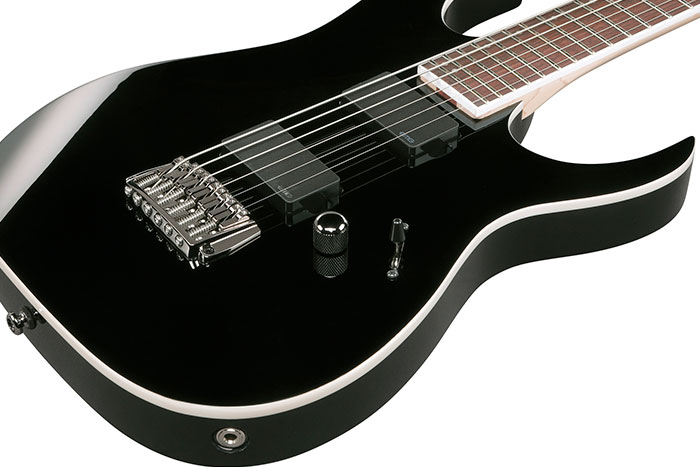

Nyatoh body
Nyatoh used as the body wood provides a rich mid-low end.

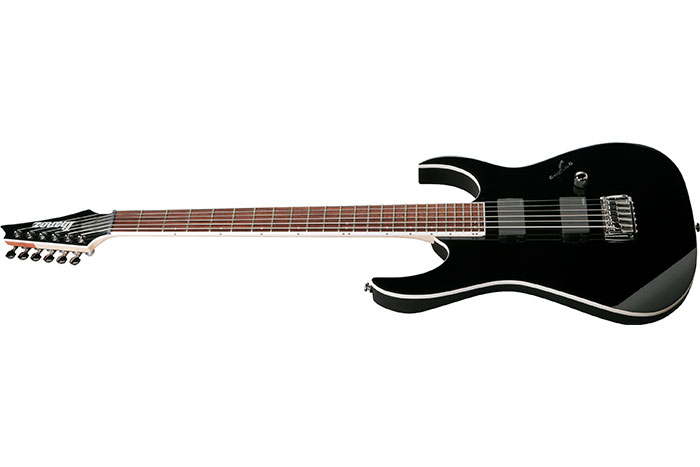

28 inch scale

Gibraltar Standard III bridge
The Gibraltar Standard III bridge, featuring a redesigned baseplate and saddles, offers enhanced playing comfort while ensuring optimal string vibration transfer.

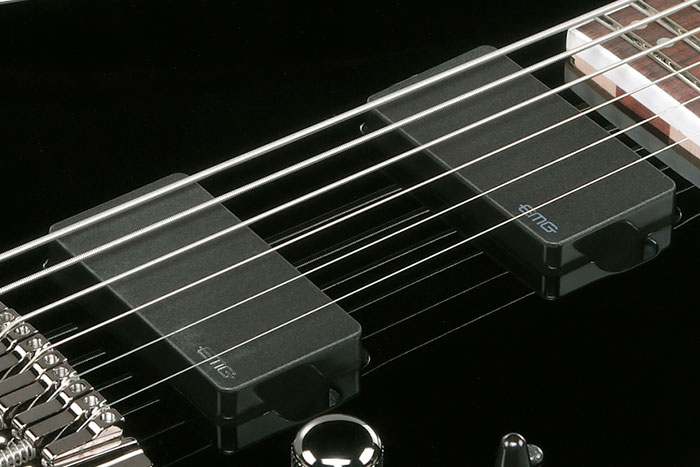

EMG® pickups
EMG® 60 neck pickup packs plenty of output with a balance of tones that is classic-thick; boosted mids, big lows, and fat highs. EMG&trg; 81 bridge pickup gives detailed intensity, incredible amounts of high end cut, and fluid sustain.

Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.

Luminescent side dot inlays
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
