- neck type
- Wizard-95pc Maple/Walnut neck
- Poplar Burl topNyatoh body
- Macassar Ebony fretboardWhite dot inlay
- Jumbo frets
- number of frets
- Gibraltar Standard II-9 bridge
- string space
- neck pickup
- Fishman® Fluence™ Modern Humbucker Alnico 9 (H) neck pickupActive/Alnico
- bridge pickup
- Fishman® Fluence™ Modern Humbucker Ceramic 9 (H) bridge pickupActive/Ceramic
- factory tuning
- D'Addario® EXL120-7 + .075/.090
- string gauge
- Graph Tech® nut
- hardware color
- Cosmo Black
- Scale :
- a : Width
- 62mm at NUT
- b : Width
- 88mm at 24F
- c : Thickness
- 21.5mm at 1F
- d : Thickness
- 23.5mm at 12F
- Radius :
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
When the Fishman Fluence voicing switch (For Voicing 3) is in neck position, voicing 3 is on. When the Fishman Fluence voicing switch (For Voicing 3) switch is in bridge position, voicing 3 is off. When Fishman Fluence voicing switch (For Voicing 3) is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When Fishman Fluence voicing switch (For Voicing 3) is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.

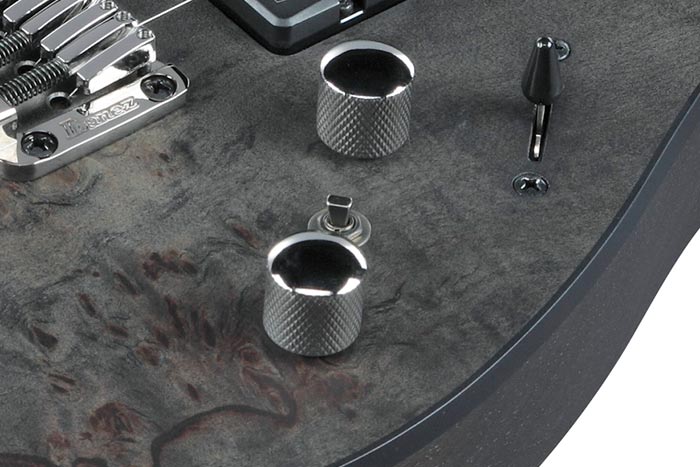

With the guitar held in the playing position, there is a three-way pickup selector switch near the knee cutout on the lower part of the body. There is a push/pull volume knob that also controls the fishman fluence voicing function, as well as a Fishman Fluence voicing switch (For Voicing 3) and tone knob toward the end of the body. When the volume knob is down, fluence voice 1 is engaged. With the volume knob up, fluence voice 2 is engaged. However, when voicing 3 is on, voicings 1 and 2 are is disabled, regardless of whether the volume knob is in the up or down position.
- Recommended Case
- Fishman® Fluence™ Voicing switch on volume control (push/pull)

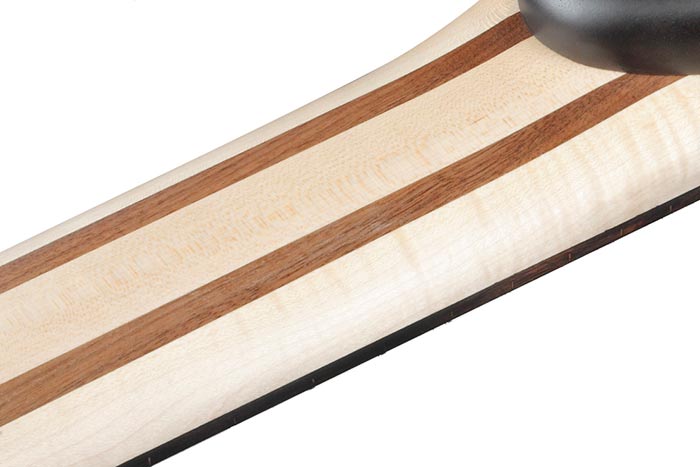

Wizard 5pc Maple/Walnut neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.

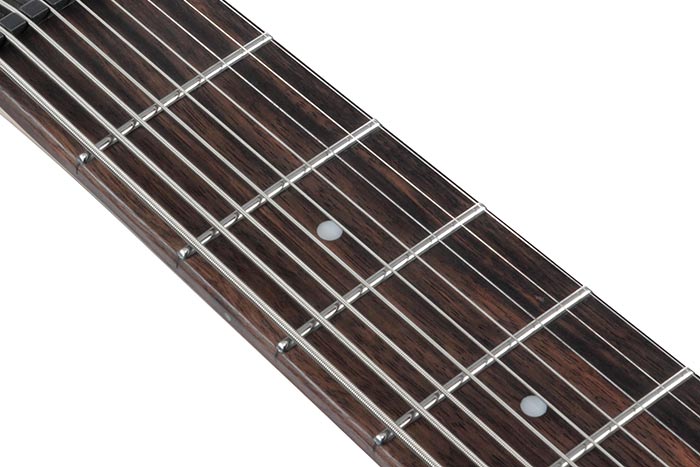

Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

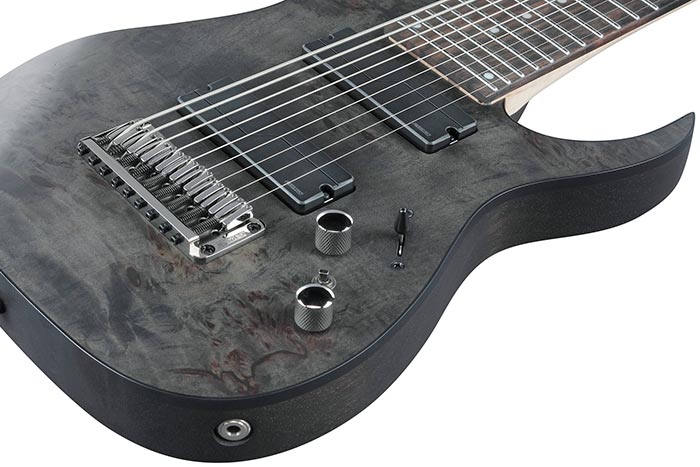

Poplar Burl top / Nyatoh body
The Poplar Burl top features an exotic wood grain and the Nyatoh body provides a rich mid-low end.

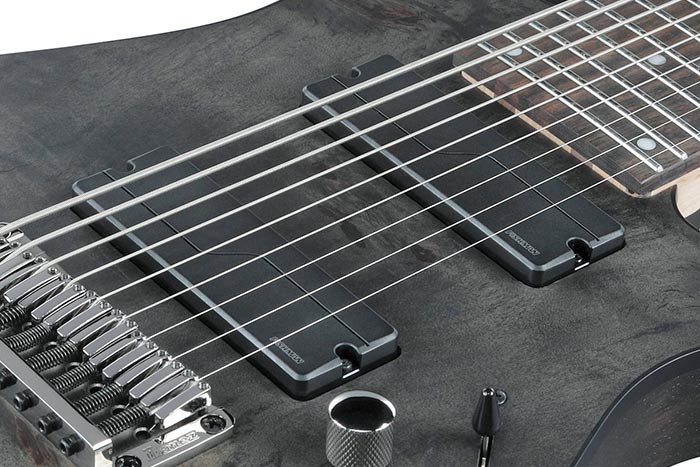

Fishman® Fluence™ Modern Humbucker Alnico / Fluence™ Modern Humbucker Ceramic pickups
The Fishman® Fluence™ Modern Humbucker pickups provide an aggressive tone and a powerful attack without excess noise.

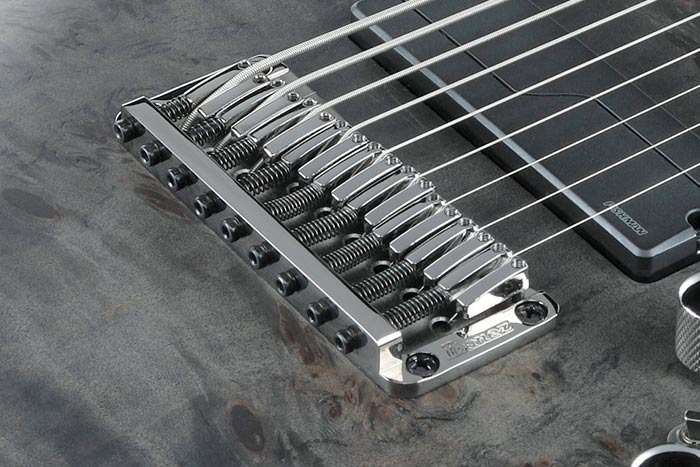

Gibraltar Standard II bridge
The Gibraltar Standard II is a simple fixed bridge designed to provide optimal transfer of each string's vibration and its smooth surface maximizes playing comfort.
The coil tap switch adds sound and tonal variations for both pickups.

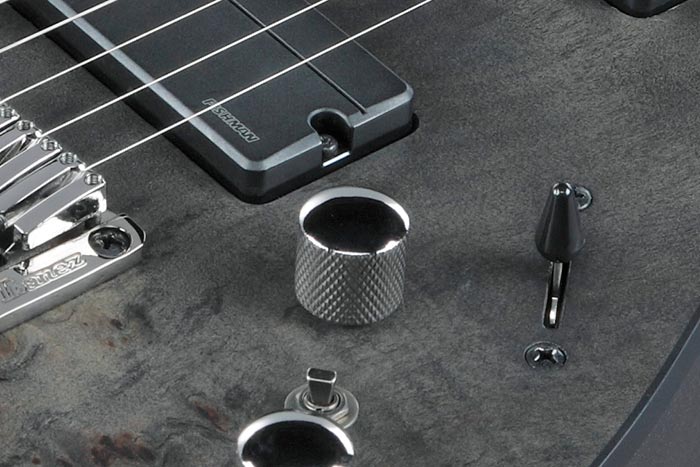

Fishman® Fluence™ Voicing switch on volume control (push/pull)
The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.
