RG8520
- SDE : Sodalite
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- RG j.custom Super Wizard5pc Maple/Wenge neck
- top/back/body
- AAA Flamed Maple (4mm) topAfrican Mahogany body
- fretboard
- Bound Macassar Ebony fretboardTree of Life inlay
- fret
- Jumbo fretsj.custom fret edge treatment
- number of frets
- 24
- bridge
- Lo-Pro Edge bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® Air Norton™ (H) neck pickupPassive/Alnico
- bridge pickup
- DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Cosmo Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 17mm at 1F
- d : Thickness
- 19mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.
-

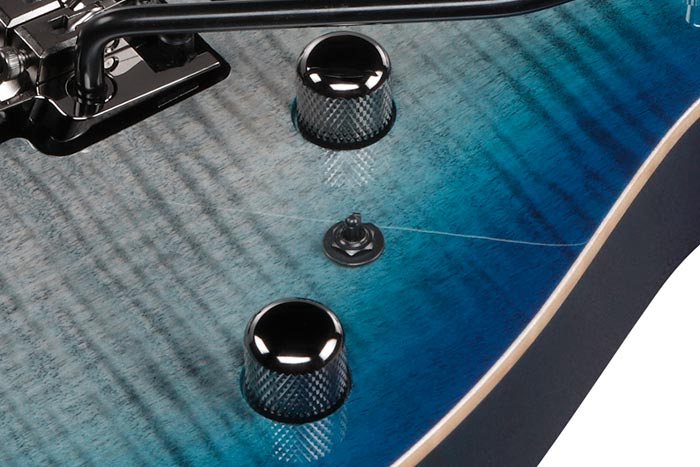

CONTROLS
DESCRIPTION
With the guitar held in the playing position, the three-way pickup selector switch is the control closest to towards the direction of the neck. There are two knobs near the end of the body. The one closest to the end of the body is the tone knob, and the knob closest to the neck is the volume knob. There is a coil tap switch between the two knobs. When the switch is in neck position, the coil tap is on, and when the switch is in bridge position, the coil tap is off.
-
OTHER FEATURES
- Recommended Bag
-
IGB724-BK
- Hardshell case included
- Gotoh® Strap lock pins
- Gotoh® machine heads
Features
Super Wizard 5pc Maple/Wenge neck
The Super Wizard 5pc Maple/Wenge neck provides extra-smooth playing.

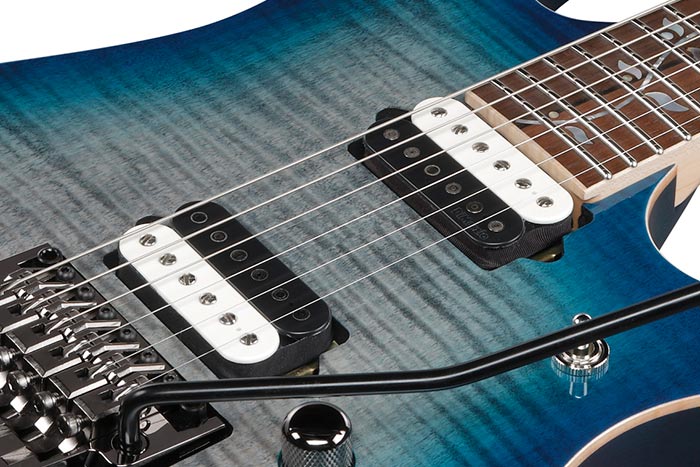

DiMarzio® Air Norton™ / The Tone Zone® pickups
A pair of high-output DiMarzio® Air Norton™ and The Tone Zone® pickups provides a huge sound with a broad dynamic range.
Coil-tap switch
The coil tap switch adds sound and tonal variations for both pickups.
Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.
Selected Flamed Maple top(4mm) / African Mahogany body
Selected Flamed Maple top(4mm) displays a beautiful wood grain and the African Mahogany body delivers a rich mid-low end.
Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
Gotoh® Strap lock pins
Gotoh® Strap lock pins protect your guitar from falling under tough stage performance.
Lo-Pro Edge tremolo
The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.
Special j.custom Neck
RG j.custom Super Wizard 5pc Maple/Wenge neck includes jumbo frets finished with our j.custom special fret edge treatment for a super smooth and comfortable performance. The "Velvetouch" finish on the back of the neck ensures a "just right" feel and easy playability.
All Access Neck Joint
j.custom special neck joint offers superior playability at the high frets.
