RG653DX
- WHF : White Flat
- TDF : Transparent Deep Blue Flat
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Super Wizard HP5pc Maple/Walnut neck
- top/back/body
- Ash body
- fretboard
- Bound Rosewood fretboardAcrylic & Abalone block inlay
- fret
- Jumbo frets
- number of frets
- 24
- bridge
- Edge bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® Air Norton™ (H) neck pickupPassive/Ceramic
- bridge pickup
- DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 17mm at 1F
- d : Thickness
- 19mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
Features
Super Wizard 5pc Maple/Walnut neck
The Super Wizard 5pc Maple/Walnut neck provides extra-smooth playing.
DiMarzio® Air Norton™ / The Tone Zone® pickups
A pair of high-output DiMarzio Air Norton™ and The Tone Zone® pickups provides a huge sound with a broad dynamic range.

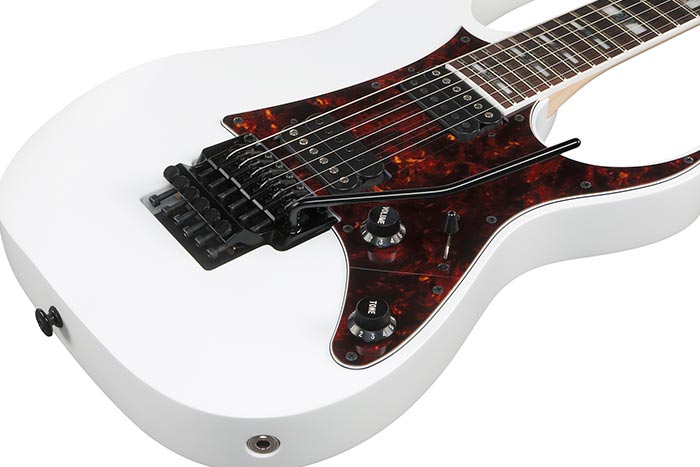

Ash body
The Ash body delivers a pleasant brightness and rich sustain.

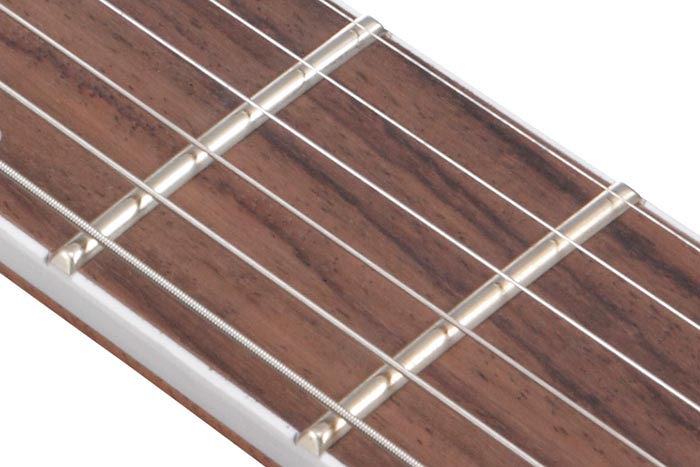

Jumbo frets
Jumbo frets contribute to smooth playability, especially for single-note playing.
Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.
Edge tremolo bridge
The masterpiece Edge bridge offers exceptional tuning stability, precise intonation adjustment, and playing comfort.
Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
