RG631ALF
SPEC
-
SPECS
- neck type
- Nitro Wizard5pc Panga Panga/Walnut neck
- top/back/body
- Nyatoh body
- fretboard
- Macassar Ebony fretboardWhite Step off-set dot inlay
- fret
- Jumbo Sub Zero treated frets
- number of frets
- 24
- bridge
- Gibraltar Standard III bridge
- string space
- 10.8mm
- neck pickup
- Fishman® Fluence™ Modern Humbucker Alnico (H) neck pickupActive/Alnico
- bridge pickup
- Fishman® Fluence™ Modern Humbucker Ceramic (H) bridge pickupActive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 400mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.
-

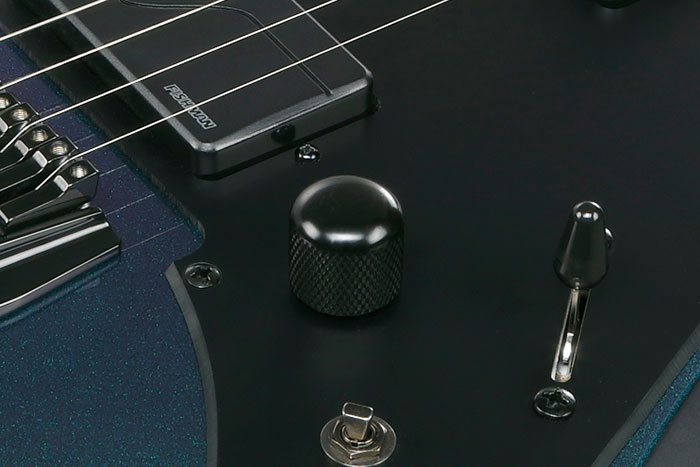

CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is a three-way pickup selector switch near the knee cutout on the lower part of the body. There is a push/pull volume knob that also controls the fishman fluence voicing function, as well as a coil tap switch and tone knob toward the end of the body. When the volume knob is down, fluence voice 1 is engaged. With the volume knob up, fluence voice 2 is engaged. When the coil tap switch is in neck position, the coil tap is on, and when the switch is in the bridge position, the coil tap is off.
-
OTHER FEATURES
Features

Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

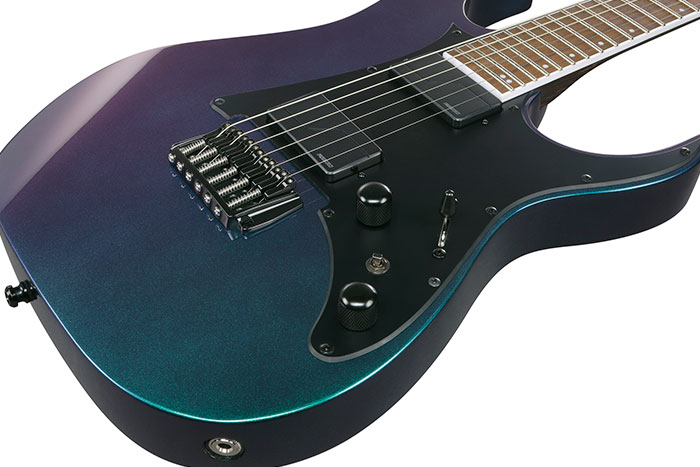

Nyatoh body
Nyatoh used as the body wood provides a rich mid-low end.

Fishman® Fluence™ Voicing switch on volume control (push/pull)
The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.

Gibraltar Standard III bridge
The Gibraltar Standard III bridge, featuring a redesigned baseplate and saddles, offers enhanced playing comfort while ensuring optimal string vibration transfer.

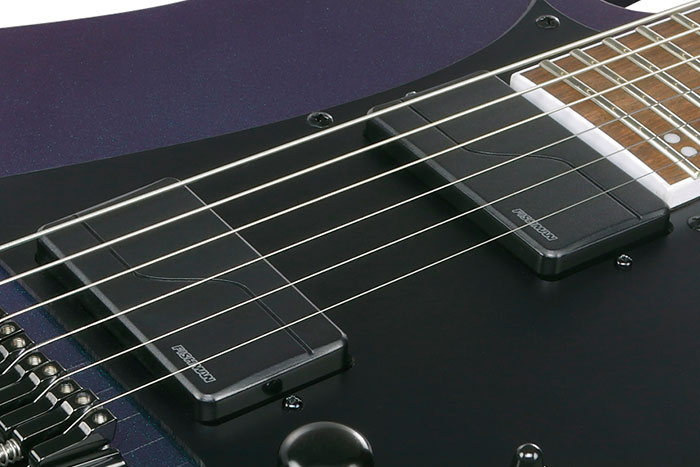

Fishman® Fluence Modern Humbucker Alnico / Fluence Modern Humbucker Ceramic pickups
The Fishman Fluence Modern Humbucker pickups provide an aggressive tone and a powerful attack without excess noise.

Coil-tap switch
The coil tap switch adds sound and tonal variations for both pickups.

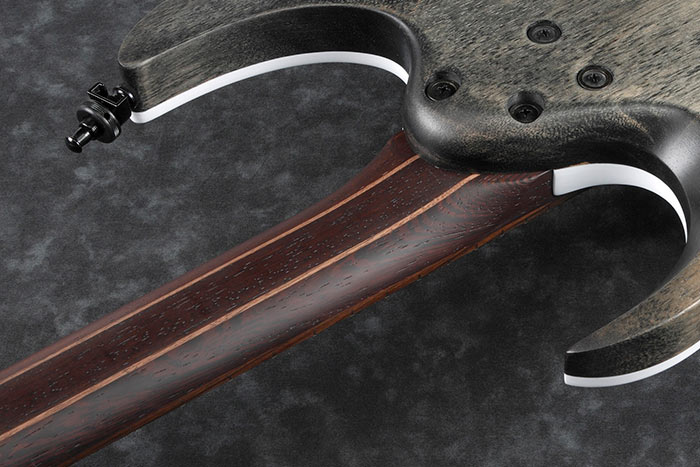

Nitro Wizard 5pc Panga Panga/Walnut neck
Super-thin and ultra-playable Nitro Wizard 5-piece Panga Panga/Walnut neck substantially increases sustain

Sub Zero Treated Frets
The Sub Zero treated frets can stand up against the hardest riffing and string-bending.

Luminescent side dot inlays
The luminescent side dot inlays make it easy for players to perform on dark stages, matching the dazzling luminescent Ibanez headstock logo.

Schaller S-Lock strap lock pins
Indestructible Schaller S-Locks don't fail, even under the toughest conditions on stage.

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.
