RG5320RC
- DFM : Deep Forest Green Metallic
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Super Wizard HP5pc Maple/Wenge neck
- top/back/body
- African Mahogany body
- fretboard
- Bound Rosewood fretboardOff-set Mother of Pearl dot inlay
- fret
- Jumbo Stainless Steel fretsPrestige fret edge treatment
- number of frets
- 24
- bridge
- Lo-Pro Edge bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® Air Norton™ (H) neck pickupPassive/Ceramic
- bridge pickup
- DiMarzio® The Tone Zone® (H) bridge pickupPassive/Alnico
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL120
- string gauge
- .009/.011/.016/.024/.032/.042
- nut
- Locking nut
- hardware color
- Chrome
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 17mm at 1F
- d : Thickness
- 19mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the coil tap switch is in neck position, coil tap is on. When the coil tap switch is in bridge position, coil tap is off. When coil tap is off and the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected. When the switch is in the bridge position, the bridge pickup is selected. When coil tap is on and the pickup selector switch is in the neck position, the bridge side of the neck pickup is selected. When the switch is in center position, the bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, neck side of the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cut out is a three-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the three-way pickup selector switch. Between the volume and tone knobs is a coil tap switch. When the switch is in the neck position, the coil tap is on. When the switch is in the bridge position, the coil tap is off.
-
OTHER FEATURES
- Recommended Bag
-
IGB724-BK
- Hardshell case included
- Gotoh® machine heads
- Coil-tap switch
- Luminlay side dots
Features
Super Wizard HP 5pc Maple/Wenge neck
Super Wizard 5pc Maple/Wenge neck provides extra-smooth playing.
Jumbo Stainless Steel frets with Prestige fret edge treatment
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.
The Prestige Fret Edge Treatment guarantees effortlessly fast playing.

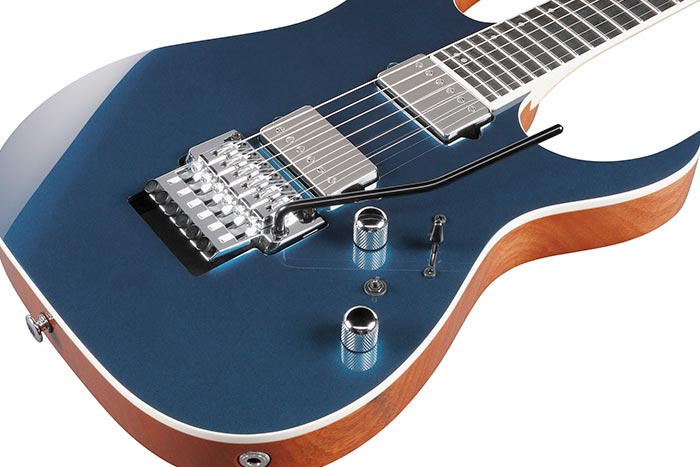

African Mahogany body
The African Mahogany body delivers a rich mid-low end.
Lo-Pro Edge tremolo bridge
The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.
DiMarzio® Air Norton™ / The Tone Zone® pickups
A pair of high-output DiMarzio Air Norton™ and The Tone Zone® pickups provides a huge sound with a broad dynamic range.
Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.
Coil-tap switch
The coil tap switch adds sound and tonal variations for both pickups.
Luminlay side dot inlays
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
