RG5121L
SPEC
-
SPECS
- neck type
- Super Wizard HP5pc Maple/Wenge neck
- top/back/body
- African Mahogany body
- fretboard
- Bound Macassar Ebony fretboardOff-set Mother of Pearl dot inlay
- fret
- Jumbo Stainless Steel fretsPrestige fret edge treatment
- number of frets
- 24
- bridge
- Gibraltar Standard III bridge
- string space
- 10.8mm
- neck pickup
- Fishman® Fluence™ Modern Humbucker Ceramic (H) neck pickupActive/Ceramic
- bridge pickup
- Fishman® Fluence™ Modern Humbucker Ceramic (H) bridge pickupActive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- nut
- Graph Tech® BLACK TUSQ XL® nut
- hardware color
- Cosmo black
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 43mm at NUT
- b : Width
- 58mm at 24F
- c : Thickness
- 17mm at 1F
- d : Thickness
- 19mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in the neck position, the neck pickup is selected. When the switch is in the center position, both pickups are selected. When the switch is in the bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION

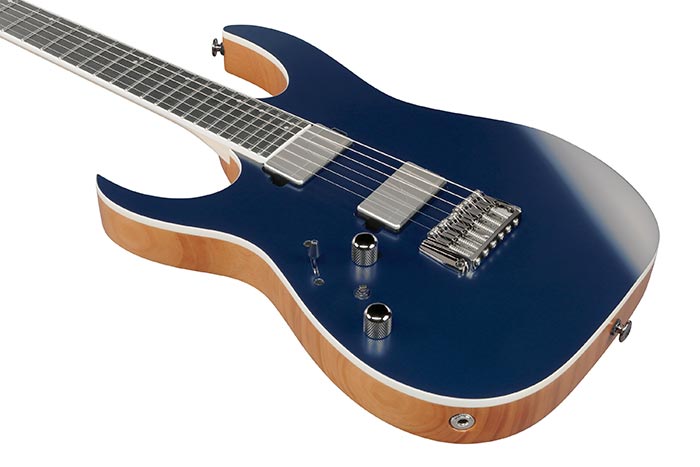

With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is a three-way pickup selector switch. Closer to the end of the body is the tone knob. The volume knob is located right above the three-way pickup selector switch. Between the volume and tone knobs is a Fishman Fluence voicing switch. When the switch is in the neck position, the pickup is set to voicing 2. When the switch is in the bridge position, the pickup is set to voicing 1.
-
OTHER FEATURES
- Recommended Bag
-
IGB724-BK
- Hardshell case included
- Gotoh® MG-T locking machine heads
- Fishman® Fluence™ Voicing switch
- Luminlay side dots
Features

Jumbo Stainless Steel frets with Prestige fret edge treatment
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes.
The Prestige Fret Edge Treatment guarantees effortlessly fast playing.

Fishman® Fluence™ Voicing switch
The Voicing switch allows the pickups to switch from a modern, active high output sound to a crisp, clean and fluid sound.

African Mahogany body
The African Mahogany body delivers a rich mid-low end.

Super Wizard HP 5pc Maple/Wenge neck
Super Wizard 5pc Maple/Wenge neck provides extra-smooth playing.

Macassar Ebony fretboard
Macassar Ebony produces tight lows and mid range along with strong attack in the highs and quick response with rich sustain.

Gibraltar Standard III bridge
The Gibraltar Standard III bridge, featuring a redesigned baseplate and saddles, offers enhanced playing comfort while ensuring optimal string vibration transfer.

Fishman® Fluence™ Modern Humbucker Ceramic pickups
The Fishman® Fluence™ Modern Humbucker pickups provide an aggressive tone and a powerful attack without excess noise.

Gotoh® MG-T locking machine heads
The Gotoh® MG-T locking machine heads achieve incredible tuning stability, cutting down string-changing time.

Luminlay side dot inlays
The Luminlay side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
