RG2027RXL
- DTB : Dark Tide Blue
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- Wizard-75pc Maple/Wenge neck
- top/back/body
- Basswood body
- fretboard
- Bound Rosewood fretboardOff-set Mother of Pearl dot inlay
- fret
- Jumbo fretsPrestige fret edge treatment
- number of frets
- 24
- bridge
- Lo-Pro Edge 7 bridge
- string space
- 10.8mm
- neck pickup
- DiMarzio® Fusion Edge 7 (H) neck pickupPassive/Ceramic
- bridge pickup
- DiMarzio® Fusion Edge 7 (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E,7B
- strings
- D'Addario® EXL120-7
- string gauge
- .009/.011/.016/.024/.032/.042/.054
- nut
- Locking nut
- hardware color
- Cosmo black
-
NECK DIMENSIONS
-
- Scale :
- 686mm/27"
- a : Width
- 48mm at NUT
- b : Width
- 68mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 21mm at 12F
- Radius :
- 430mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the pickup selector switch is in neck position, the neck pickup is selected. When the switch is between neck and center position, the neck humbucker is selected and is in parallel. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in bridge position, the bridge pickup is selected.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the neck is the five-way pickup selector switch. Closer to the input jack is the tone knob. The volume knob is located right above the five-way pickup selector switch.
-
OTHER FEATURES
Features

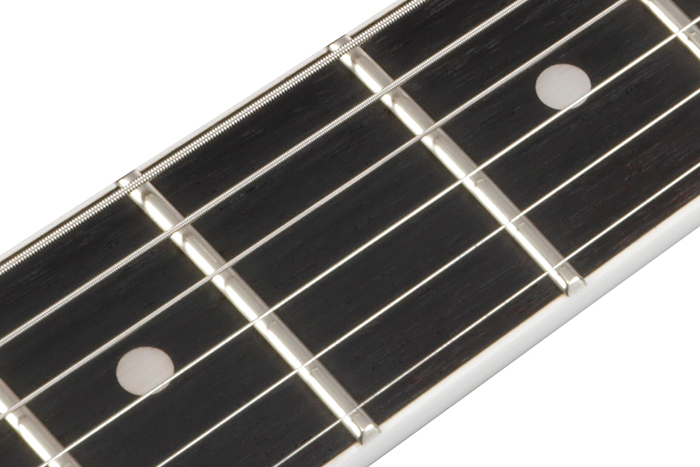

Jumbo frets with Prestige fret edge treatment
The wide and tall fret-type offers a quick response, good articulation when playing chords and clear tone when playing single notes. Prestige Fret Edge Treatment guarantees effortlessly fast playing.

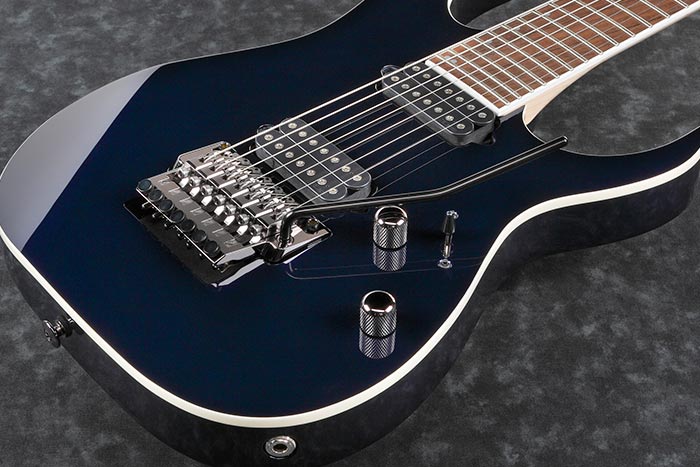

Basswood body
The Basswood body delivers a natural and flat tone.

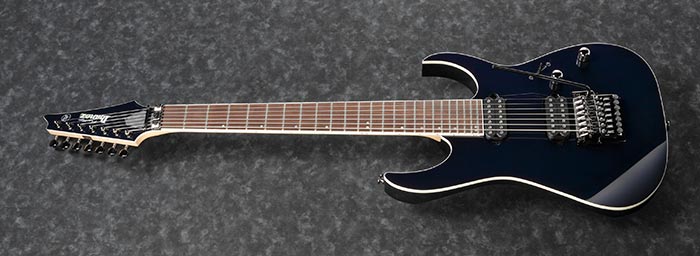

27 inch scale
Wizard 5pc Maple/Wenge neck
Ibanez's thin, flat and fast Wizard neck is strong and sturdy and offers unlimited playability for demanding players.
Lo-Pro Edge tremolo bridge
The legendary Lo-Pro Edge bridge offers maximum playing comfort with its streamlined profile and recessed fine tuners. Locking studs contribute to tuning stability.
Rosewood fretboard
Rosewood provides a well-balanced solid tone with a focused mid range.
DiMarzio® Fusion Edge Pickups
Through close collaboration between Ibanez and DiMarzio® Fusion Edge pickups have been engineered to produce a powerful, distinctive tone with a crisp, cutting high end, and a tight, compressed bottom end, minus any muddy mid-range.
Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.
