PM3C
SPEC
-
SPECS
- neck type
- PM 3pcs Nyatoh/Mapleset-in neck
- top/back/side
- Spruce top Maple backMaple sides
- fretboard
- Bound Ebony fretboardPM3C Acrylic inlay
- fret
- Medium fretsArtstar fret edge treatment
- number of frets
- 22
- bridge
- Gibraltar Performer bridge
- string space
- 10.5mm
- tailpiece
- VT200 tailpiece
- neck pickup
- PM special (S) neck pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® ECG24 Flatwound
- string gauge
- .011/.015/.022w/.030/.040/.050
- nut
- Bone nut
- hardware color
- Titan Gold
-
NECK DIMENSIONS
-
- Scale :
- 628mm/24.7"
- a : Width
- 43mm at NUT
- b : Width
- 57mm at 22F
- c : Thickness
- 20mm at 1F
- d : Thickness
- 22mm at 9F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 19 1/2"
- b : Width
- 15 3/4"
- c : Max Depth
- 3 3/4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there are two knobs along the lower edge of the body. The knob closest to the end of the body is the bridge tone knob, and the knob closest to the neck is the bridge volume knob. There are two more knobs towards to the center of the guitar near the bridge. The knob closest to the end of the body is the neck tone control, and the knob closer to the neck is the neck volume knob. There are two switches toward the center of the guitar. The switch closest to the end of the body is the tri-sound switch for the neck pickup, and the switch closest to the neck is the three-way pickup selector switch.
-
OTHER FEATURES
- Recommended Bag
-
IHB541-BK
- Hardshell case included
Features

3pc Nyatoh/Maple neck
The 3pc Nyatoh/Maple Neck provides a rich midlow end and great resonance.

Ebony fretboard
Ebony produces tight lows and mid range with a strong attack in the high end and features a quick response and rich sustain.

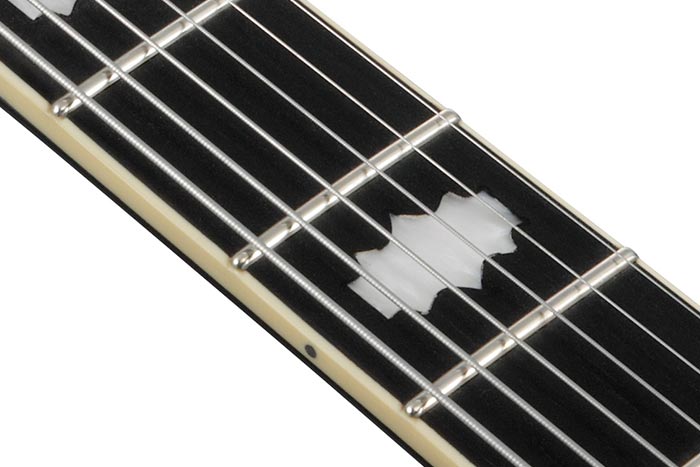

Medium frets with Artstar fret edge treatment
Medium sized frets enhances the accuracy to your notes.
The Artstar fret edge treatment with spherical surface processing offers super smooth performance.

Spruce top / Maple back and sides
The Spruce top's smooth wood appearance enriches the response of your playing. The Maple back and sides provide a rich tone and bright attack with a solid sound.

PM special (S) pickup
We carefully designed this pickup specially to Pat's preference. This PM Special single coil pickup, like how it looks, embraces a wellbalanced classic jazz tone which is essential to Pat's music.

Gibraltar Performer bridge
The Gibraltar Performer bridge provides rich sustain and tuning stability. The lowpositioned saddles promise comfortable playability.

VT200 tailpiece
The classic look VT200 tailpiece provides great tuning stability.
