PM200
SPEC
-
SPECS
- neck type
- PM African Mahoganyset-in neck
- top/back/side

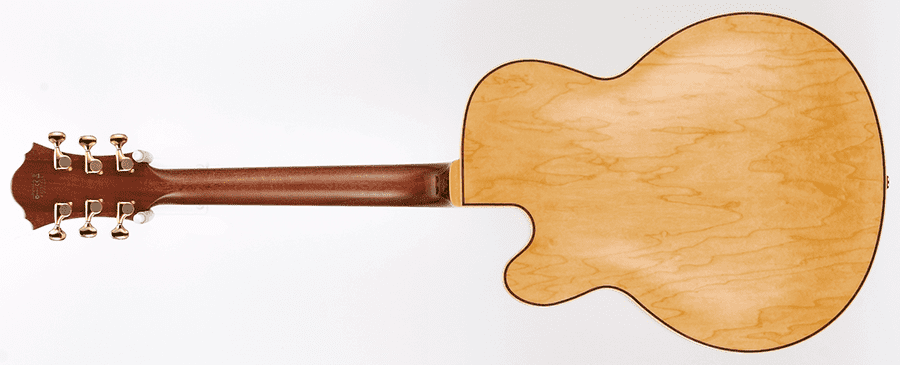

- Maple top Maple backMaple sides
- fretboard
- Bound EbonyAcrylic & Abalone block inlay
- fret
- Medium fretsPrestige fret edge treatment
- number of frets
- 22
- bridge
- Gotoh® GE103B bridge
- string space
- 10.4mm
- tailpiece
- PM tailpiece
- neck pickup
- Silent 58 (H) neck pickupPassive/Alnico
- factory tuning
- 1E, 2B, 3G, 4D, 5A, 6E
- strings
- Flatwound strings
- string gauge
- .011/.015/.022w/.030/.040/.050
- nut
- Bone nut
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 628mm/24.7"
- a : Width
- 43mm at NUT
- b : Width
- 57mm at 22F
- c : Thickness
- 21mm at 1F
- d : Thickness
- 23mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
BODY DIMENSIONS
-
- a : Length
- 20 "
- b : Width
- 15 3/4"
- c : Max Depth
- 4 1/4"
-
DESCRIPTION
Guitar Body Diagram
A: Length of the body
B: Maximum width of the body
C: Maximum depth of the body
-
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there are two knobs along the lower edge of the body. The knob closest to the end of the body is the bridge tone knob, and the knob closest to the neck is the bridge volume knob. There are two more knobs towards to the center of the guitar near the bridge. The knob closest to the end of the body is the neck tone control, and the knob closer to the neck is the neck volume knob. There are two switches toward the center of the guitar. The switch closest to the end of the body is the tri-sound switch for the neck pickup, and the switch closest to the neck is the three-way pickup selector switch.
-
OTHER FEATURES
- Recommended Bag
-
IAB724-BK

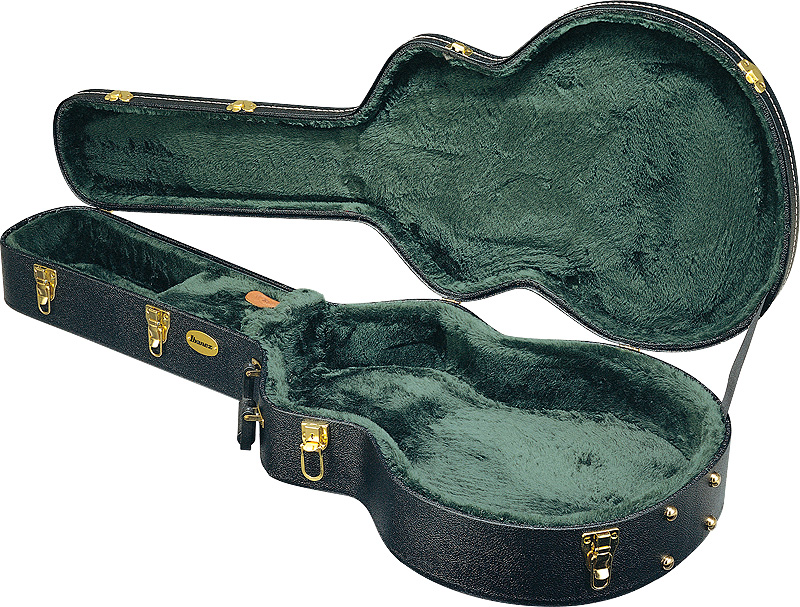

- Hardshell case included
Features

African Mahogany neck
The African Mahogany used as neck wood delivers a rich mid-low end.

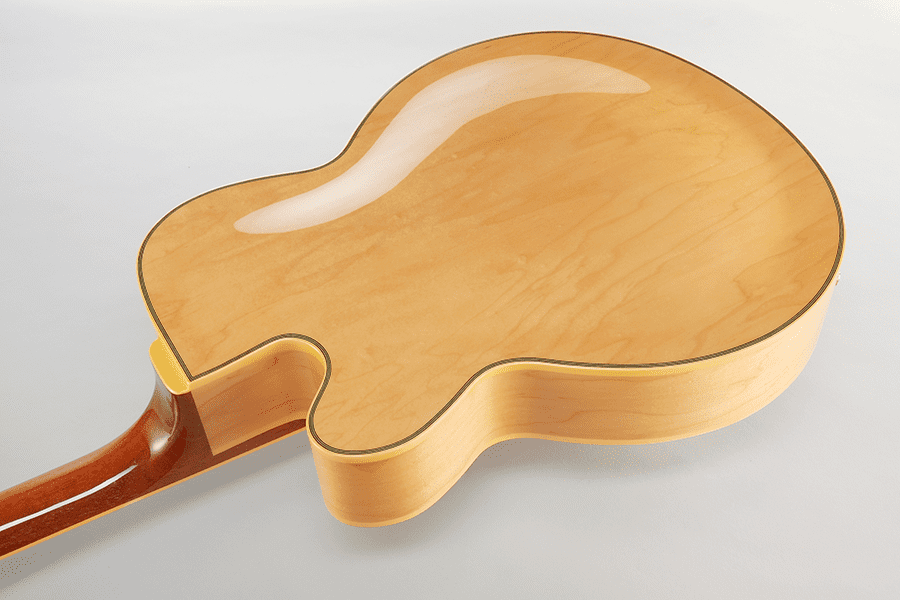

Maple top / Maple back and sides
Maple top, back and sides sonically enriches the response while picking.

Gotoh® GE103B bridge
The Gotoh® GE103B bridge improves sustain and tuning stability.

PM tailpiece
The PM tailpiece provides great tuning stability.

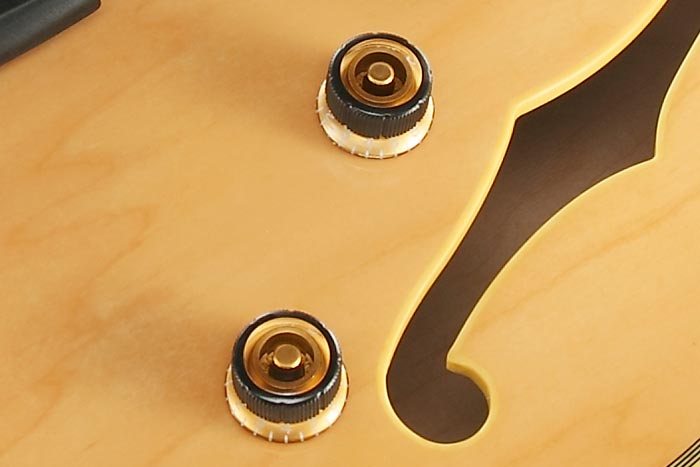

Sure Grip Knobs
The Sure Grip III knobs are designed for precise control with nonslip functionality, along with smooth and classic looks.

Gotoh® machine heads
Gotoh® machine heads provide superior precision, a smooth feel, and excellent tuning accuracy.

Ebony Fretboard w/Prestige Fret Edge Treatment
Ebony produces a tight low end and mid-range with a defined high end attack. It also delivers quick response and rich sustain.

Silent 58 Pickup
Super 58 pickups feature moderate output and vintage tone.
