MGFM10
SPEC
-
SPECS
- neck type
- Parallel Wizard3pc Roasted Maple/Bubinga neck
- top/back/body
- Quilted Maple topNyatoh body
- fretboard
- Roasted Birdseye Maple fretboardMother of Pearl Step off-set dot inlay
- fret
- Jumbo Stainless Steel frets
- number of frets
- 24
- bridge
- Ibanez Mono-Tune bridge
- string space
- 10.8mm
- neck pickup
- Q58 (H) neck pickupPassive/Ceramic
- bridge pickup
- Q58 (H) bridge pickupPassive/Ceramic
- factory tuning
- 1E,2B,3G,4D,5A,6E
- strings
- D'Addario® EXL110
- string gauge
- .010/.013/.017/.026/.036/.046
- hardware color
- Gold
-
NECK DIMENSIONS
-
- Scale :
- 648mm/25.5"
- a : Width
- 42mm at NUT
- b : Width
- 57mm at 24F
- c : Thickness
- 19mm at 1F
- d : Thickness
- 19mm at 12F
- Radius :
- 508mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimension
Radius: Radius of the fingerboard
-
-
SWITCHING SYSTEM
DESCRIPTION
When the alter switch is in neck position, power tap mode is on. When the alter switch is in bridge position, power tap mode is off. When power tap mode is off and the pickup selector switch is in neck position, the neck pickup is selected. When the switch is in between neck and center position, bridge side of the neck pickup and neck side of the bridge pickup are selected. When the switch is in center position, both neck and bridge pickups are selected. When the switch is in between center and bridge position, the neck side of the neck pickup and the bridge side of the bridge pickup are selected. When the switch is in bridge position, bridge pickup is selected. When power tap mode is on and the pickup selector switch is in neck position, the neck pickup is selected and in power tap mode. When the switch is in between neck and center position, bridge side of the neck pickup is selected. When the switch is in the center position, both neck and bridge pickups are selected and are both in power tap mode. When the switch is in between center and bridge position, the bridge side of the bridge pickup is selected. When the switch is in bridge position, bridge pickup is selected and is in power tap mode.
-
CONTROLS
DESCRIPTION
With the guitar held in the playing position, there is one knob and one switch along the lower edge of the body. Closest to the knee cutout is the five-way pickup selector switch. Closest to the end of the body is the tone knob. The volume knob is located right above the five-way pickup selector switch. Between the volume and tone knobs is the alter switch.
-
OTHER FEATURES
- Recommended Case
- MR350C
- Gig bag included
- dyna-MIX10 switching system with Alter Switch
- Ibanez Custom String Lock
- Luminescent side dot inlay
Features

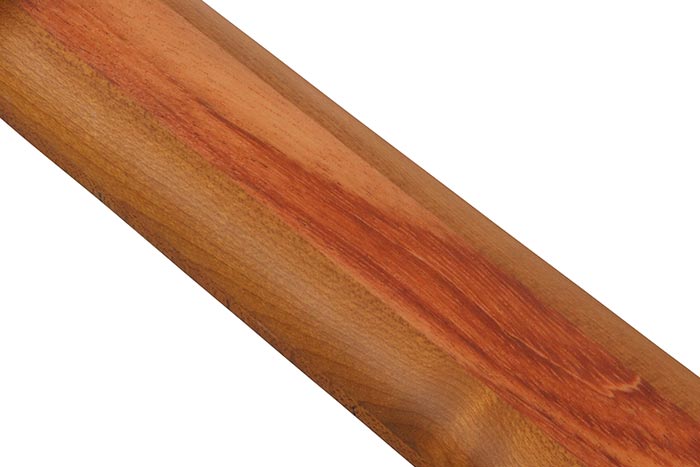

Parallel Wizard 3pc Roasted Maple/Bubinga neck
The Parallel Wizard neck is 19mm thick all the way through the entire length. It provides an amazing fretting-hand experience for the players who prefer their instrument held in a higher playing position. The 3pc Roasted Maple/Bubinga construction also offers excellent stability and long-term durability.

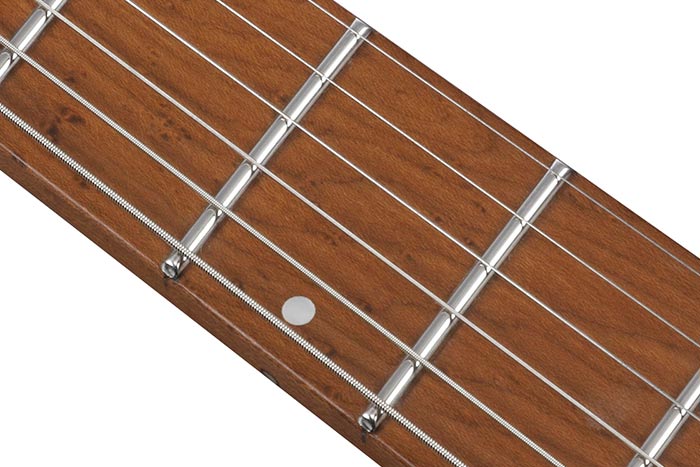

Roasted Birdseye Maple fretboard
The beautiful Birdseye Maple fretboard imbues this model with an exotic appearance. The fretboard is heat-treated for a balanced attack and rich sustain.
Jumbo Stainless Steel frets
Stainless steel frets boast excellent corrosion resistance. The wide and tall fret-type offers a quick response and effortless articulation when playing chords and clear tone when playing single notes.
Quilted Maple top / Nyatoh body
The Quilted Maple top sonically enriches the response for picking. Nyatoh used as body wood provides a rich mid-low end.
Q58 H-H pickups
Q58 pickups are designed specifically for use in headless guitars. They provide a clearly defined sound, facilitating excellent tonal balance through all frequencies. The lows are powerful without being muddy, and the highs are bright and clear, but never harsh. As a result, every single note within the chord structure is well defined, and clearly audible. These pickups, with their tonal balance, and extremely low noise performance, work extremely well with both digital and analog effects.
Custom string lock
This custom string lock is one-piece unit that features very simple construction. This means the hardware requires less maintenance, is highly durable, and allows for very easy string changes. Additionally, no proprietary string is required, so you can continue to use your favorite gauge and brand.
Mono-Tune bridges
The Mono-Tune bridges offer a wide intonation range so that you can easily set the instrument up for tuning down a whole step or even further. The string height is also easily adjustable, and each saddle generally has less material, which leads to more natural and organic tone.
dyna-MIX10 switching system with Alter Switch
The dyna-MIX 10 offers ten sound variations and can easily switch from humbucker and single coil modes with the mini switch. The power Tap mode provides a realistic single coil sound despite its two humbucker pickup layout.
Luminescent side dot inlays
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
