MDM1605
- NML : Natural Mocha Low Gloss
- DTW : Deep Twilight
- COLOR VARIATION：
SPEC
-
SPECS
- neck type
- MDM5Roasted Maple neck
- top/back/body
- Poplar Burl topAlder body
- fretboard
- Rosewood fretboardWhite dot inlay
- fret
- Medium Stainless Steel frets
- number of frets
- 24
- bridge
- MR5S bridge
- string space
- 18mm
- neck pickup
- Delta S5J neck pickupPassive
- bridge pickup
- Delta S5J bridge pickupPassive
- equalizer
- Ibanez Sonitech S Preamp 3-band EQ w/EQ bypass switch (push/pull), 3-way Mid frequency switch w/Hexa Mid system
- factory tuning
- 1G,2D,3A,4E,5B
- strings
- D'Addario® EXL165 + .130
- string gauge
- .045/.065/.085/.105/.130
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 864mm/34"
- a : Width
- 45mm at NUT
- b : Width
- 74mm at 24F
- c : Thickness
- 20.5mm at 1F
- d : Thickness
- 22.5mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimensiont
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION
When holding the bass in the playing position, the Hexa Mid System switch is located on the control cavity cover on the back of the bass. Moving the switch to the up position activates the "H" or high bank, while the down position selects the "L" or low bank. The mini switch on the front of the body is a 3-way mid frequency selector. When the Hexa Mid System is set to the H bank, the mid boost peak is at 350Hz in the neck position, 600Hz in the center position, and 1kHz in the bridge position. In the L bank, the mid boost peak is at 250Hz in the neck position, 450Hz in the center position, and 850Hz in the bridge position. Along the lower edge of the body, there are six knobs. Directionally, the first three from the neck towards the lower bout they are; volume, blend and master tone with push/pull EQ bypass switch. When the master tone knob is pulled up, the EQ bypass is activated. The remaining three smaller knobs near the edge of the body, from the neck towards the lower bout are the treble boost/cut, mid boost/cut, bass boost/cut.
-
FREQUENCY RESPONSE
DESCRIPTION
The bass boost/cut frequency curve peaks at 50 Hz, with a variable width that narrows toward higher frequencies, reaching zero around 1000 Hz. The peak frequency's range is approximately ±18 dB. The treble boost/cut frequency curve forms a mountain-shaped peak around 10,000 Hz, with a variable range that becomes zero around 300 Hz. The peak frequency's range is approximately ±18 dB. The Hexa Mid System switch is located on the back of the bass, in the middle of the control cavity cover. In the up position (towards the center of the body), it is set to "H," and in the down position (towards the edge of the body), it is set to "L." When the Hexa Mid System is set to "H," the mid-boost/cut frequency curve creates a mountain-shaped peak at a specific frequency. The variable range is zero near 20 Hz and around 10,000 Hz. The peak frequency can be switched to 1000, 600, or 350 Hz, with a variable range of approximately ±13 dB. When the Hexa Mid System is set to "L," the mid-boost/cut frequency curve creates a similar mountain-shaped peak, but the variable range is zero near 20 Hz and around 10,000 Hz. The peak frequency can be switched to 850, 450, or 250 Hz, with a variable range of approximately ±13 dB.
-
OTHER FEATURES
- Recommennded Case
-
MRB350C
- Gig bag included
- Ibanez Aero-light machine heads
- Luminescent side dot inlay
Features
Roasted Maple neck
The Roasted Maple neck is heat-treated to increase stability, durability, moisture resistance and tolerance of temperature changes.
Delta S5J pickups
The Ibanez Delta pickups deliver an aggressive yet balanced single-coil tone that responds clearly and evenly in all frequency ranges. They're voiced to cut powerfully through any mix while eliminating noise, thanks to their hum-canceling design.

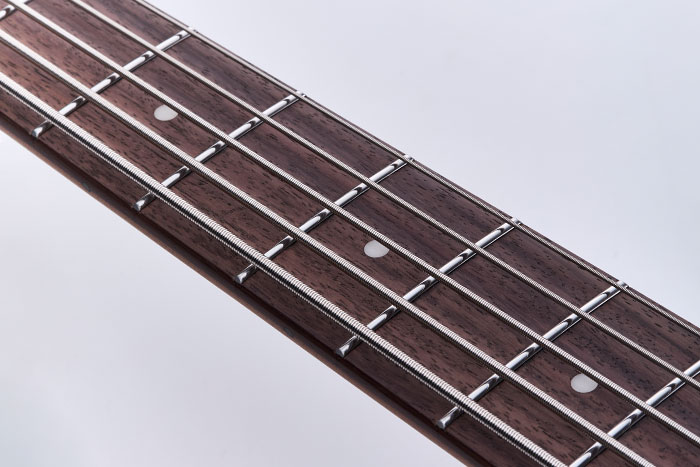

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.
Medium Stainless Steel frets
The Stainless Steel frets are durable and long-lasting.

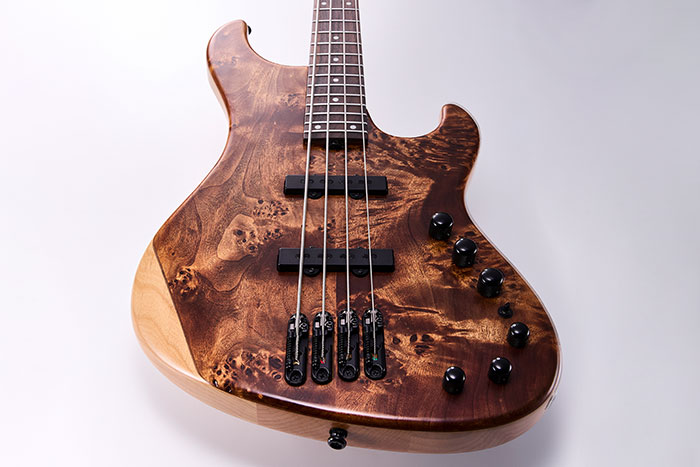

Poplar Burl top / Alder body
The Poplar Burl top features an exotic wood grain and the Alder body deliver a well-balanced bright tone, enriched resonance and sustain.
Detachable Finger ramp
A detachable Finger ramp is included for comfortable finger picking.
Ibanez Aero-light machine heads
Ibanez Aero-light machine heads feature keys made of Extra Super Duralumin," which significantly reduces the overall weight of the tuning machine while still maintaining durability and tuning accuracy. These extremely lightweight tuners help facilitate excellent instrument balance, which is essential for comfort during long gigs.
MR5S bridge
The MR5S bridge has adjustable saddles for variable string spacing by +/- 1.5mm, answering every bassist's specific string spacing needs.
Ibanez Sonitech S Preamp 3-band EQ w/EQ bypass switch (push/pull)
The Ibanez Sonitech S Preamp boasts a meticulously tuned tonal character across the entire frequency spectrum. This circuit offers two selectable 3-band mid-range banks and a passive tone control for unparalleled versatility. The preamp is designed to deliver maximum flexibility and ease of use.
The EQ bypass switch (push/pull) switches between EQ bypass (Pull) or EQ on (Push).
3-way Mid frequency switch w/Hexa Mid system
The Hexa Mid system offers players the flexibility to choose from two mid-range banks, each containing three distinct frequency points, for a total of six. Its exceptional versatility and user-friendly interface help players achieve their ideal bass sound.
Super All Access Neck Joint
The Super All Access Neck Joint increases playability and allows for easy access to the higher frets.
MDM body shape
The MDM body is designed for perfect balance and smooth access to all 24 frets.
Luminescent side dot inlays
The luminescent side dot position marks make it easy for players to see fretboard position marks when performing on dark stages.
