SPEC
-
SPECS
- neck type
- K55pc Maple/Walnut neck
- top/back/body
- Okoume body
- fretboard
- Rosewood fretboardK5 special inlay
- fret
- Medium frets
- number of frets
- 24
- bridge
- EB-7 bridge
- string space
- 16.5mm
- neck pickup
- IBZ ADX5N neck pickupActive
- bridge pickup
- IBZ ADX5B bridge pickupActive
- equalizer
- Vari-mid 3-band EQ
- factory tuning
- 1G,2D,3A,4E,5B
- strings
- D'Addario® EXL165 + .130
- string gauge
- .045/.065/.085/.105/.130
- hardware color
- Black
-
NECK DIMENSIONS
-
- Scale :
- 864mm/34"
- a : Width
- 45mm at NUT
- b : Width
- 67mm at 24F
- c : Thickness
- 19.5mm at 1F
- d : Thickness
- 21.5mm at 12F
- Radius :
- 305mmR
-
DESCRIPTION
Guitar Neck Diagram
a: Width of the neck at the nut
b: Width of the neck at the fret position specified by the neck dimension
c: Thickness of the neck at the first fret
d: Thickness of the neck at the fret position specified by the neck dimensiont
Radius: Radius of the fingerboard
-
-
CONTROLS
DESCRIPTION
This bass features a four knob arrangement. The two knobs closest to the bridge are the volume and balance knobs. There are two stacked knobs towards the edge of the body. The stacked knobs closest to the neck control bass boost/cut on the bottom and treble boot/cut on the top. The stacked knobs towards the back end of the body control mid frequency on the bottom and mid boost/cut on the top.
-
FREQUENCY RESPONSE
DESCRIPTION
The bass boost/cut frequency curve has a peak at about 20 Hz, the variable width becomes smaller as it goes to the high range, and the variable width becomes zero at around 1000 Hz. The variable range of the peak frequency is approximately ±20 dB. The treble boost/cut frequency curve draws a curve with a peak at around 20000 Hz and a variable width of zero near 100 Hz. The variable range of the peak frequency is approximately ±20 dB. The mid-boost/cut frequency curve creates a bell-shaped curve that peaks at a specific frequency, and the variable range becomes zero near 20 Hz and around 10,000 Hz. The frequency peak varies from around 100 Hz to around 6000 Hz. The variable range of the peak frequency is approximately ±15 dB.
-
OTHER FEATURES
Features
5pc Maple/Walnut neck
The 5pc Maple/Walnut neck provides tonal clarity and superior attack.

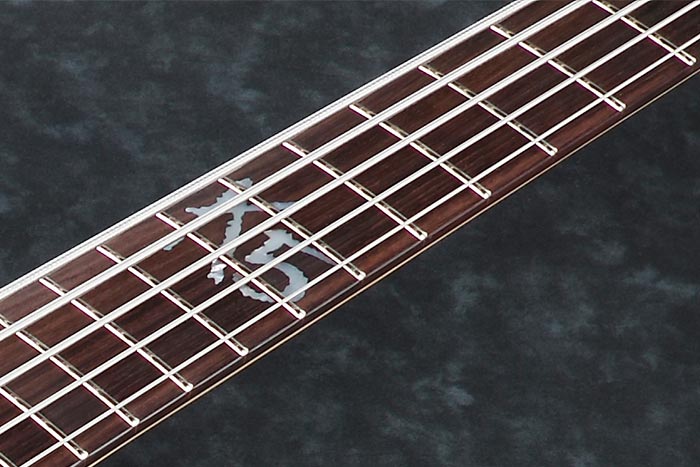

Rosewood fretboard
Rosewood fretboard provides a well-balanced solid tone with a focused mid range.

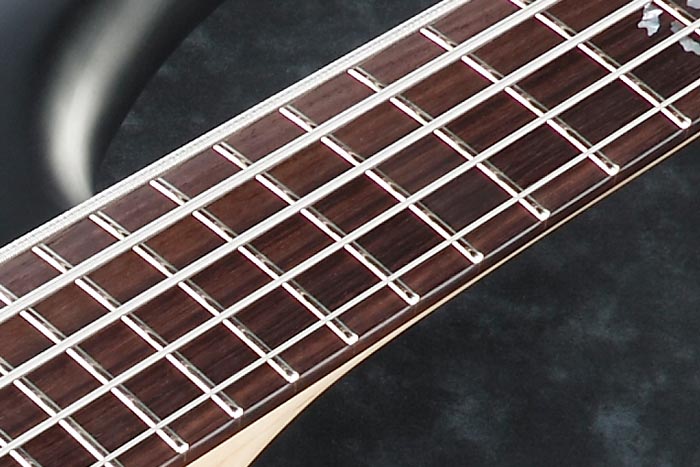

Medium frets
Medium sized frets enhance the accuracy of your notes.

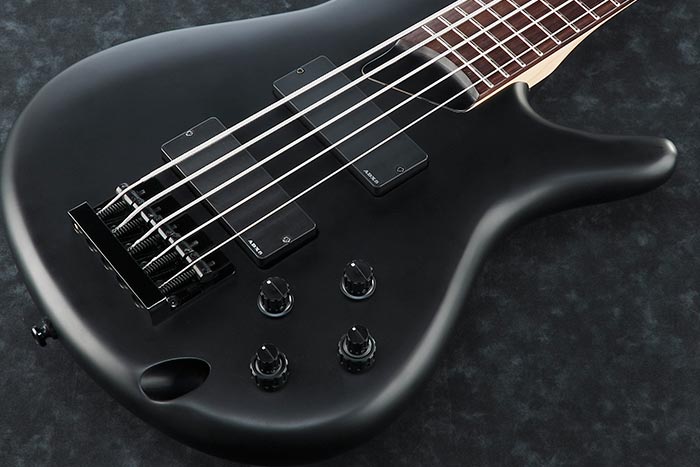

Okoume body
The Okoume body provides a bright and solid sound.
IBZ ADX5 pickups
Ibanez ADX5 pickups deliver an unlimited arsenal of mayhem-inspiring bass tones.
Vari-mid 3-band EQ
The Vari-mid 3-band EQ features a variable mid-frequency control which allows you to dial in an incredibly wide range of sounds.
Hipshot machine heads
Hipshot machine heads offer incredible tuning stability.
EB-7 bridge
The classical EB-7 bridge is super steady with its die-cast structure yet light weight by adopting aluminum base plate.
